60*8 Wheel for Micro continues rotation servo / 1PCS

60*8 Wheel for Micro continues rotation servo/1PCS

Kit consistente en una rueda plástica y su cubierta de silicona. Cuenta con un tornillo para poder fijarla a un microservo de rotación continua (no incluido). Ideal para proyectos de robótica móvil.

COD: FTFS90RW

Peso: 0.005 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 3944.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

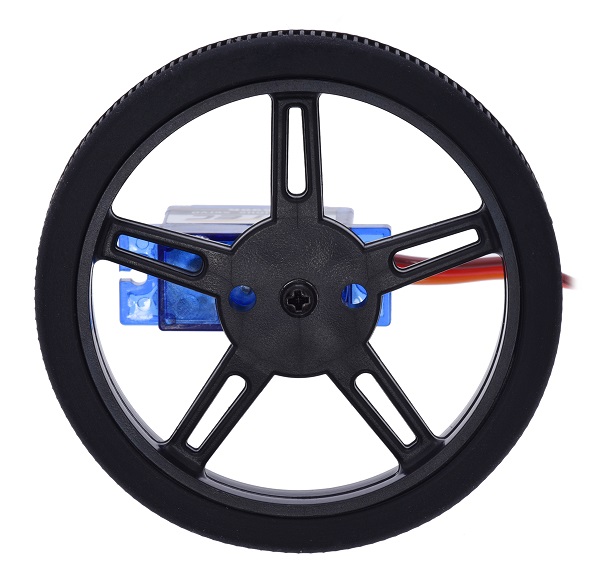

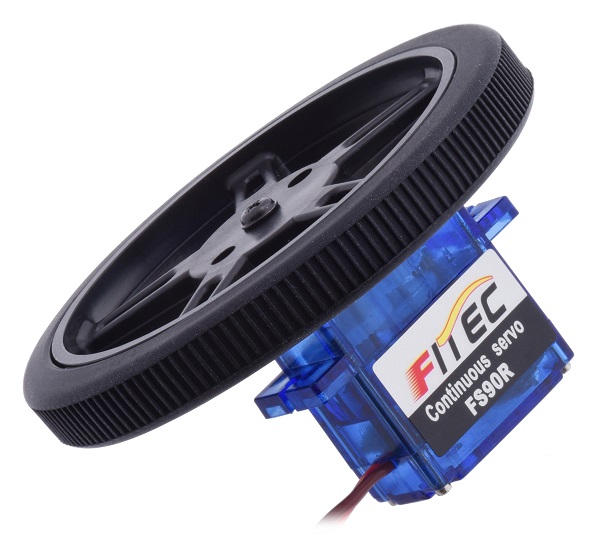

This wheel is designed specifically for use with FS90R micro continuous rotation servos and FT90R digital micro continuous rotation servos from FEETECH (formerly known as Fitec), and the combination can serve as a small, inexpensive, and easy-to-control drive system for a miniature robot. The wheel presses onto the servo spline just like a typical servo horn, and the small screw included with the FS90R/FT90R accessory pack for mounting servo horns should be used to hold the wheel in place.

This black plastic wheel is designed specifically for use with FEETECH FS90R micro continuous rotation servos and FT90R digital micro continuous rotation servos. The wheel have silicone tire and measure 60 mm (2.36″) in diameter. One additional mounting hole for 4-40 screws make it possible to use the wheel with several of our universal mounting hubs.



Specifications:

  • Length w/o silcone: 56mm / 2.2".
  • Length w/ silcone: 60mm / 2.4".
  • Weight w/ silicone: 10.9g.

Dimensions:

Size: 60 × 8 mm
Weight: 0.4 oz1



General specifications:

Shaft type: FS90R servo spline
Color: black





The wheel have silicone tire and measure 60 mm (2.36″) in diameter. One additional mounting holes for 4-40 screws make it possible to use the wheel with our universal mounting hubs for 3mm shafts, 4mm shafts, and 5mm shafts. The slots in the five spokes fit #2 or M2 screws and allow additional accessories to be mounted to the wheel (e.g. decorations or parts of an encoder system).

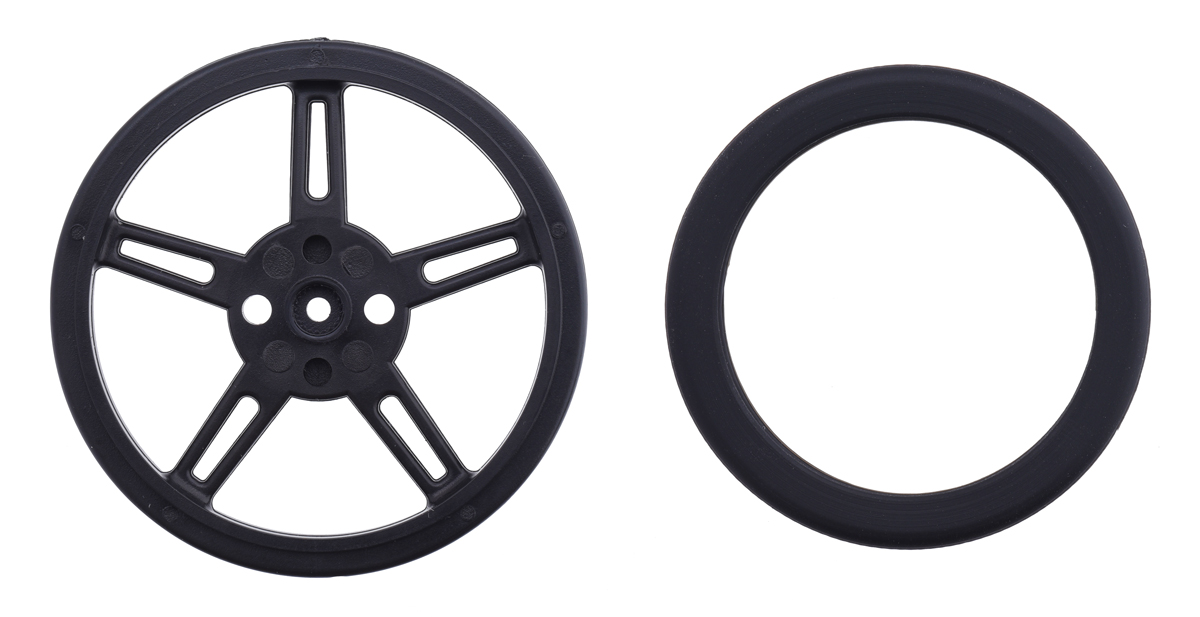

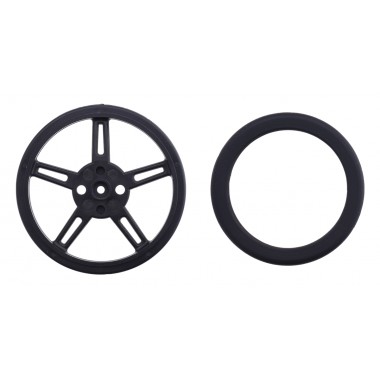

Pololu Wheel for FEETECH FS90R/FT90R Micro Servo, 60×8mm, with tire removed.

Pololu universal hub for 4mm shaft mounted to Pololu 60×8mm wheel.



Dimensions:

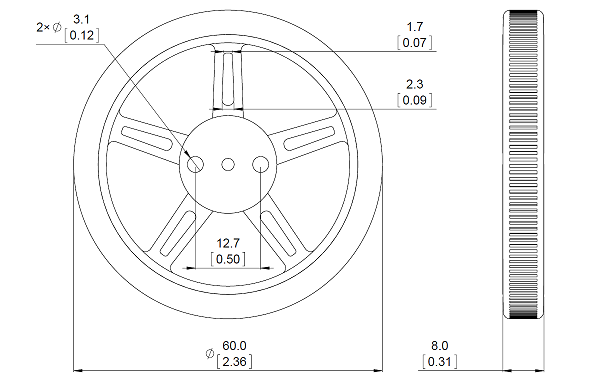

Dimensions of Pololu Wheel for FEETECH FS90R/FT90R Micro Servo, 60×8mm. Units are mm over [inches].
