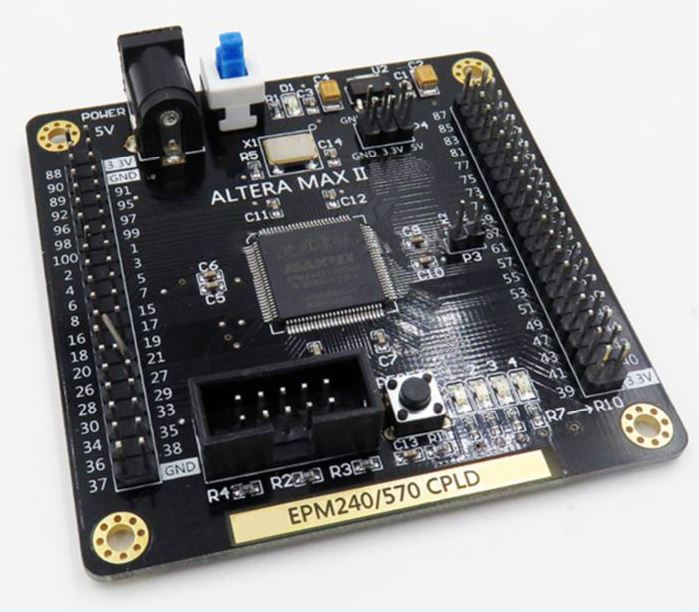

Altera CPLD EPM240 Dev. Board
Placa de desarrollo para aprender a programar CPLD, Verilog y VHDL, basada en el EPM240T100CN.
COD: TRODODS040
Peso: 0.100 Kg
Disponibilidad: Sin Stock
ARS 36667.00
El producto no está disponible para la venta en este momento
Características
Description
More features about this CPLD IC please see on this page.
Features:
- A very price-effective board for learning CPLD, verilog and VHDL language.
- On Board Chip EPM240T100CN
- Package include 3mm acrylic transparent cover, in order to against ESD short, self installation.
- Black and ENIG board technique, machine soldering, very well quality
- All the pins are lead out (2*20-2.54mm pitch) and marked, very easy to find and use.
- 50mhz main working crystal, backup crystal can be soldered on the back of the board to use.
- Use AMS117-3v3 to supply the operational volt, use plenty of filter capacitors for filtering design.
On Board Resource:
- Red status LED indicating power
- Self-lock power switch
- A system reset switch, can also be used as an input switch.
- Documentation is on this page. (Limited technical support)
- (Note some relevant genius software you will need to find by yourself)
Package includes:
- Altera CPLD EPM240 board
- Acrylic cover and screws
max2_mii5v1_c6.pdf (2740 Kb)
