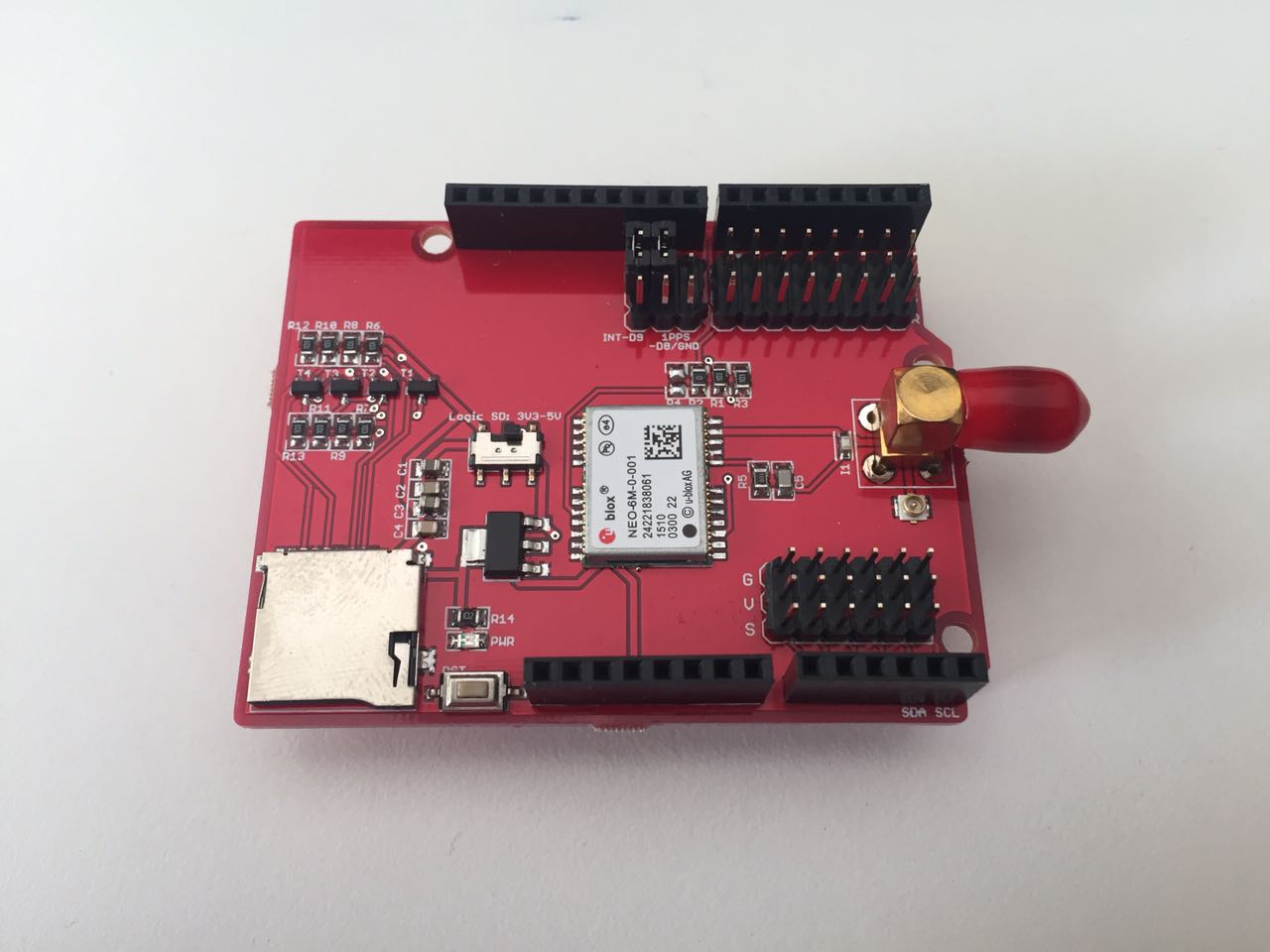

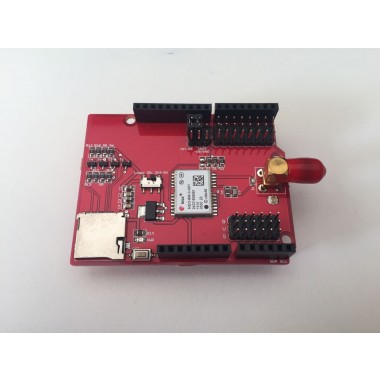

Arduino GPS Shield V1.0 NEO-6M
Shield GPS para Arduino basado en el módulo NEO-6M. Agregale la capacidad de tener GPS a tu proyecto con Arduino!
COD: TRODAS1040
Peso: 0.010 Kg
Disponibilidad: En Stock
ARS 25438.00
El producto no está disponible para la venta en este momento
Características
Product Description
It’s based on u-blox NEO-6M GPS module , and the footprints is compatible with Arduino/MEGA boards. The regular GPS pins (RX, TX) can be connected to D0-D7 of Arduino.
Adding GPS to your Arduino has never been easier. Multiple GPS receivers attach easily to the shield. GPS also gives you amazingly accurate time! It’s suitable for the following applications with Arduino or Arduino compatible boards :
- Automotive navigation
- Personal positioning
- Fleet management
- Marine navigation
Features:
- With Micro SD interface
- Active antenna design with high receive sensitivity, compatible normal antenna, do not including antenna
- Extremely fast time to first fix at low signal level
- UART interface, more analog pins output for prototyping
- Operation temperature: -40�?�? ~ +85
- Support 5V and 3.3V power supply
- Default baud rate is 38400
Esquematico (30 Kb)
ejemplo (1 Kb)
