Remote Wireless Keyfob 315MHz (Metal)
Control remoto por radiofrecuencia de 4 botones. Trabaja en la banda de 315MHz y se utiliza junto con el shield DFTEL0075.
COD: DFFIT0355
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 13634.00
El producto no está disponible para la venta en este momento
CaracterÃsticas
Introduction

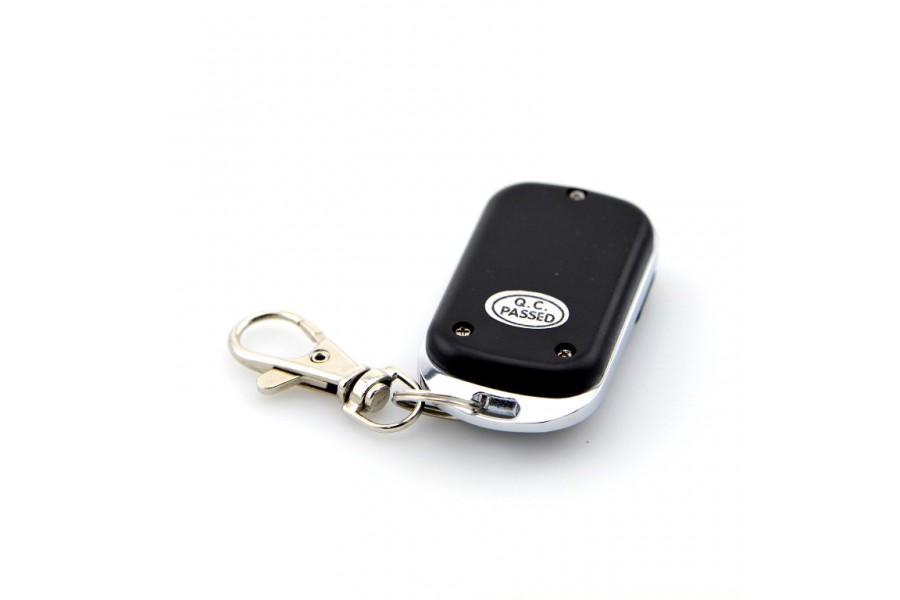

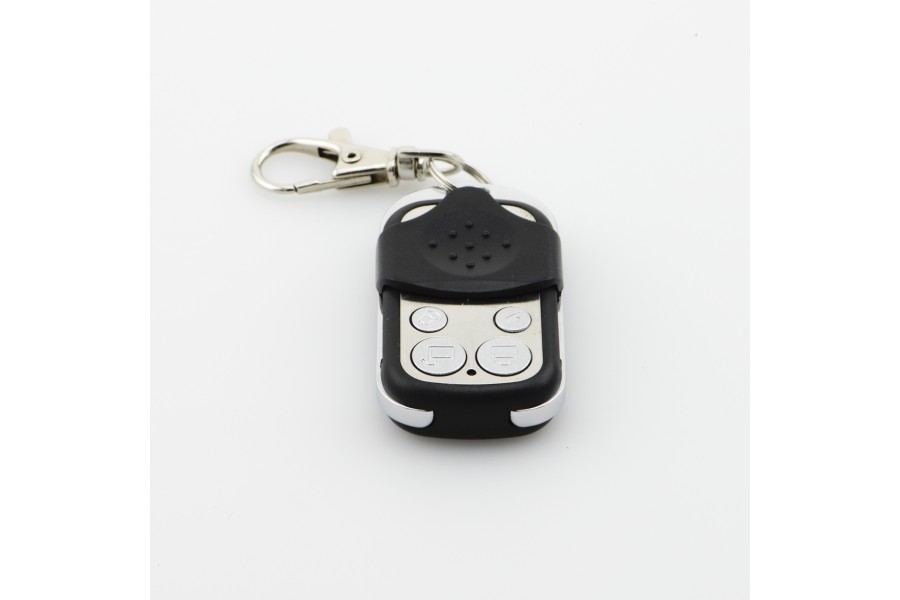

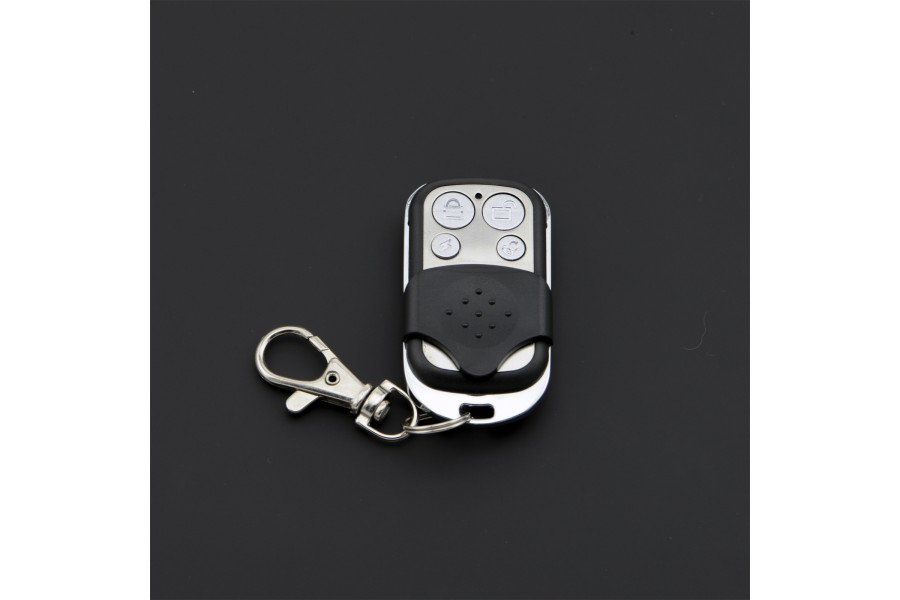

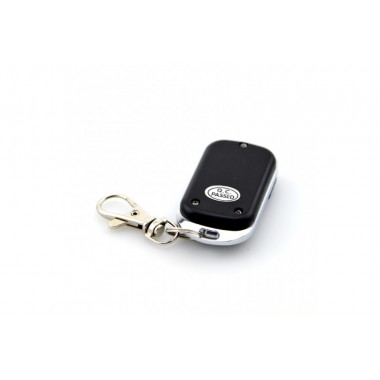

This is a nice metal 315MHz remote wireless keyfob with high electromagnetic conversion, strong emission power and low power consumption. It use SAW as frequency stabilizer and has a 6.5G UHF triode. The tiny and luxurious metal body will make you even cooler.
315M wireless modules are widely used in areas like vehicle monitoring, remote control, home security system, wireless meter reading, guard monitor system, industrial data acquisition system, wireless tag, identification, non-contact RF card, small wireless data terminals, fire safety systems, wireless remote control system, biological signal acquisition, hydrological/meteorological monitoring, robot control and so on.

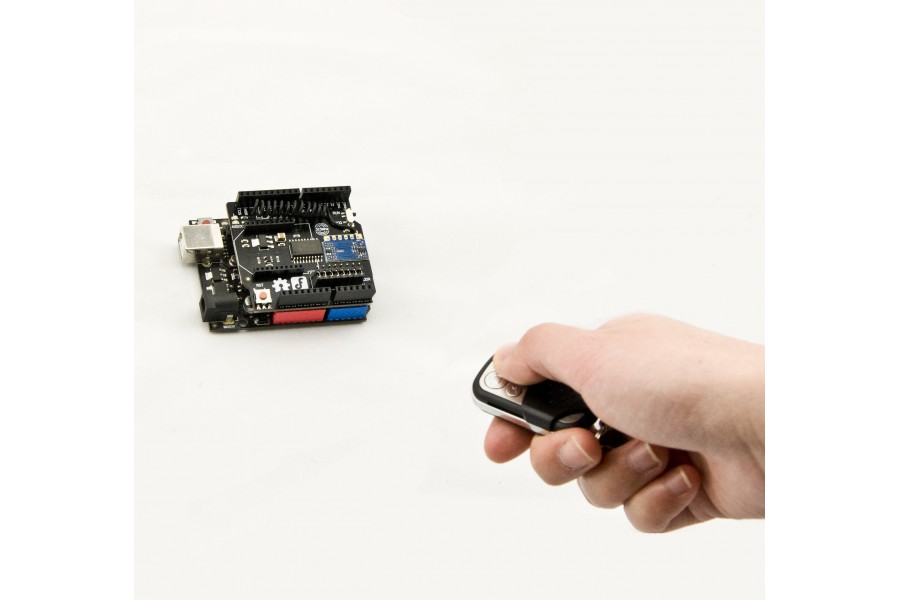

This remote wireless keyfob can be immediately paired with the RF Shield 315MHz (DFTEL0075) and start your project.
Specification
- Working voltage: 12V(27A battery)
- Working current: ≤10mA
- Oscillation mode: SAW resonance
- Working frequency: 315MHz
- Modulation mode: ASK
- Frequency error: ±3kHz(max)
- Emission power: 10mW
- Code chip: SC2260-R4
- Address codes: floating
- Matching resistor: 12M
- Transmission distance: <40 meters(open space)
- Operating temperature: 0~+70 â??
GalerÃa de Imágenes
Archivos
SC2260R4 Datasheet (104 Kb)Comentarios
