I2C 0.96 OLED 128x64- White
Display OLED de 0.96" de 128x64 pixels. Es monocromo (Letras blancasl). Posee interfaz I2C.
COD: EDO1286413W
Peso: 0.015 Kg
Disponibilidad: Sin Stock
ARS 19269.00
El producto no está disponible para la venta en este momento
Características

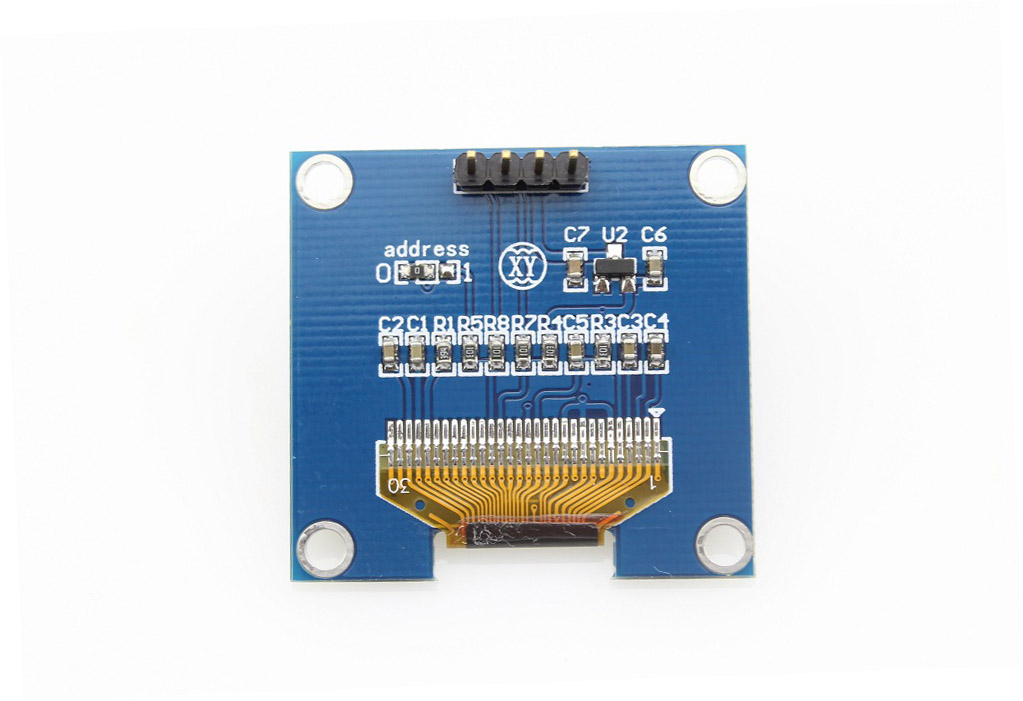

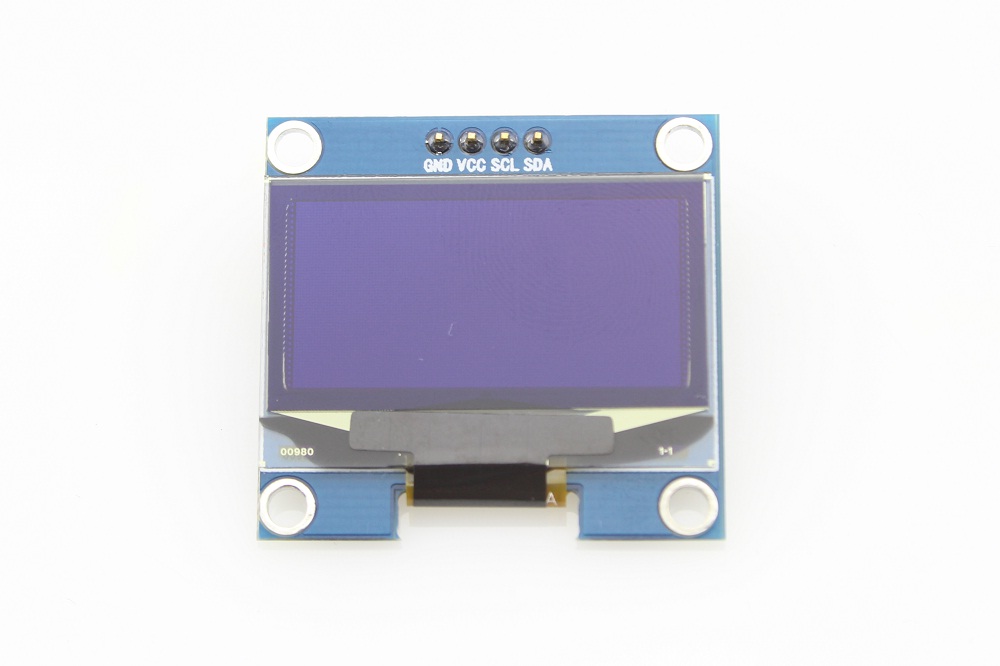

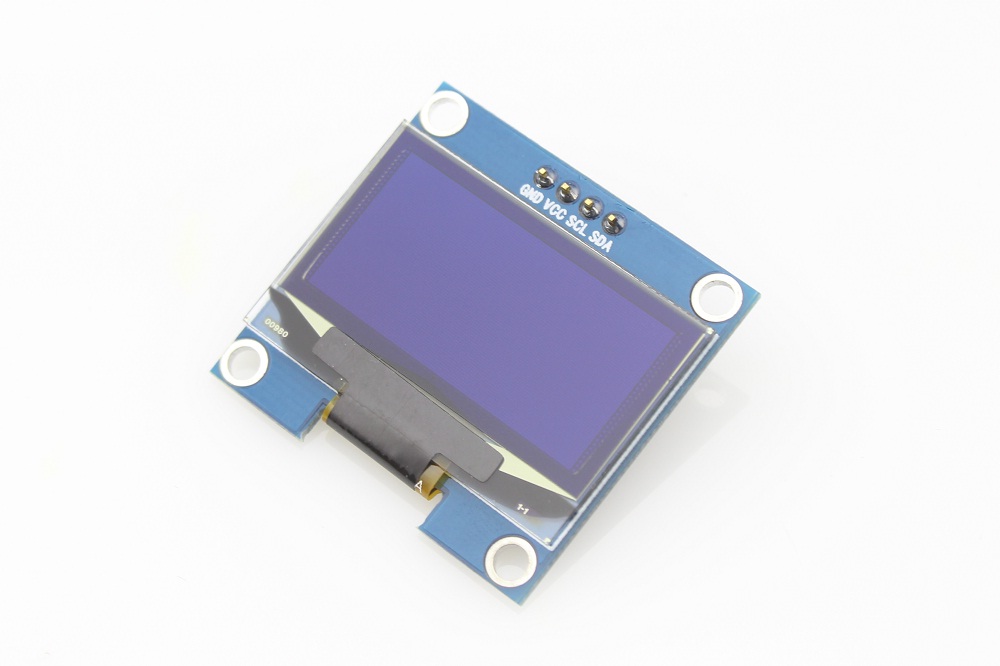

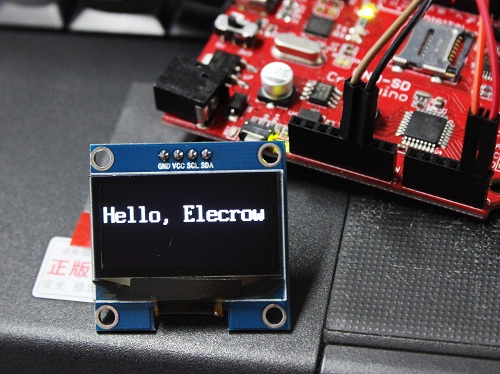

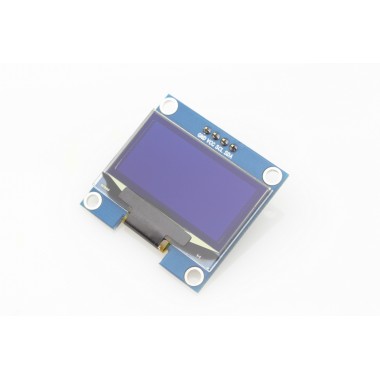

This 0.96" OLED display module is made of 128x64 individual write OLED pixels, It uses I2C to communicate with microcontroller such as Arduino, with the given library, it would be easy to integrate the OLED display module into your project.
Features
- Diagonal Screen Size: 1.3"
- Number of Pixels: 128 x 64
- Color Depth: Monochrome (Write)
- Dimension: 35.4 x33.5x 4.3 mm
- Working Voltage: 3.3~ 5V DC
- Power: 0.06W Max
- Viewing Angle: >160 Degree
- Duty: 1/32
- Brightness ( cd/m2): 150 (Typ) @ 5V
- Interface: I2C
Comentarios
Escribir ComentarioOpenHacks (25/08/2015 - 12:18)
Hola Juan, la pantalla mide 29,3mm x 14mm. Saludos!
Juan (22/08/2015 - 21:29)
Hola, quería saber cuanto mide el display, sin la pcb de alrededor, digamos solo la parte que se enciende
