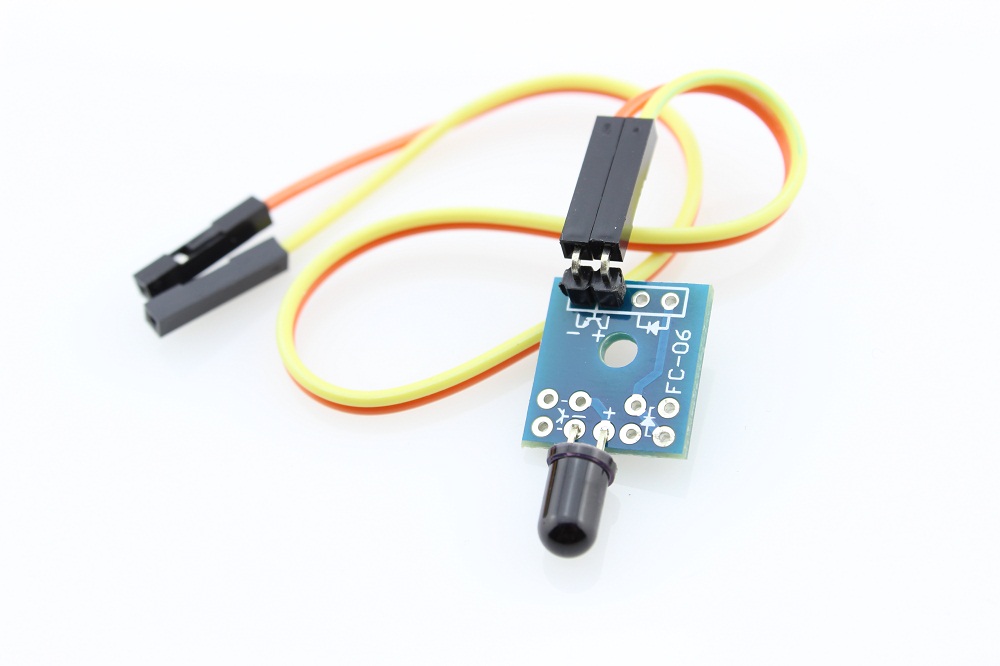

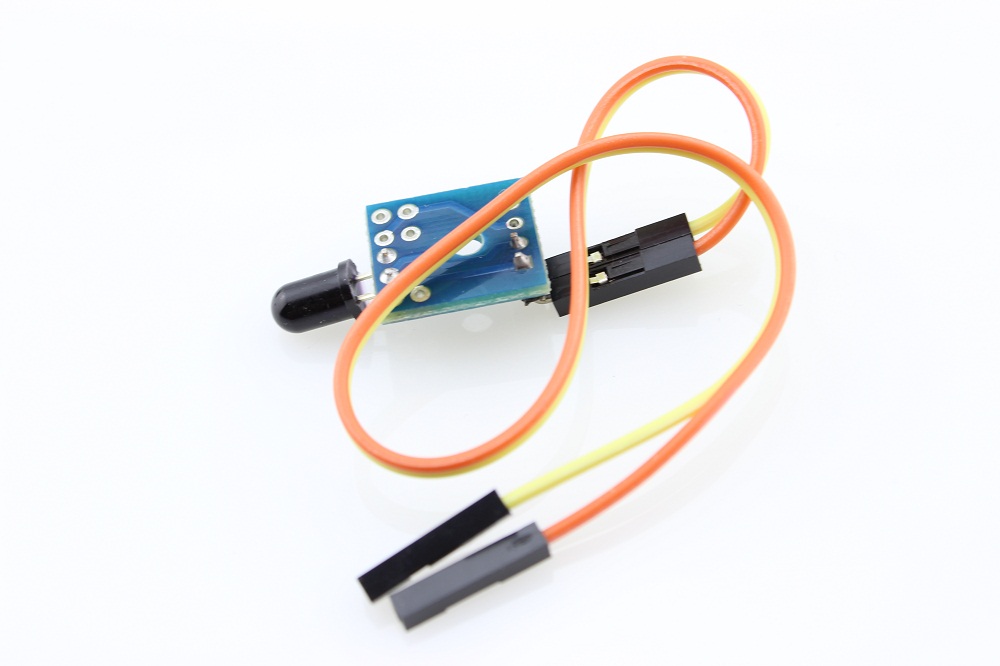

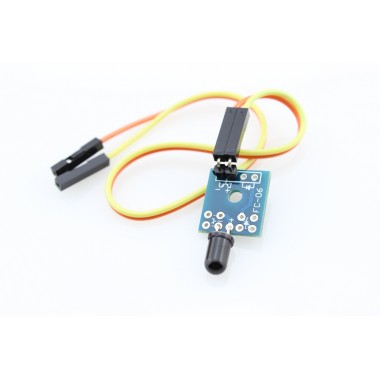

Tilt Sensor With board
Sensor de inclinación. Actúa como interruptor cuyo estado depende del angulo de inclinación.
COD: ESPS01011S
Peso: 0.005 Kg
Disponibilidad: Sin Stock
ARS 4178.00
El producto no está disponible para la venta en este momento
Características

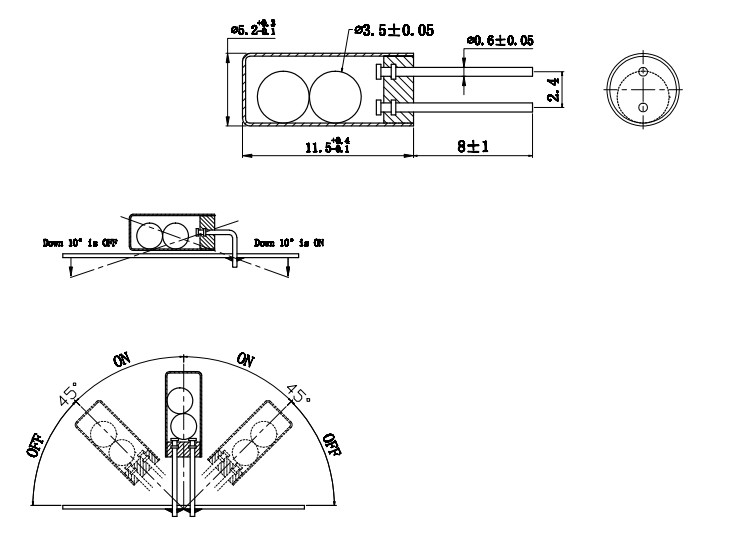

The Tilt Switch is the equivalent of a button to detect the module ifselt tilt or not. Inside the tilt switch are a pair of balls that make contact with the pins when the case is upright. Tilt the case over and the balls don't touch, thus not making a connection. It can be used in projects that needs Morphometrics such as fans that auto-shut down when it topple over.
Specification
- Connecting Angle:10° ~170°
- Disconnect angle:190° ~350°
- Electrical Life:>1,000,000
Package list
- Tilt Switch module x1
- 2pin dual female jumper wire x1
