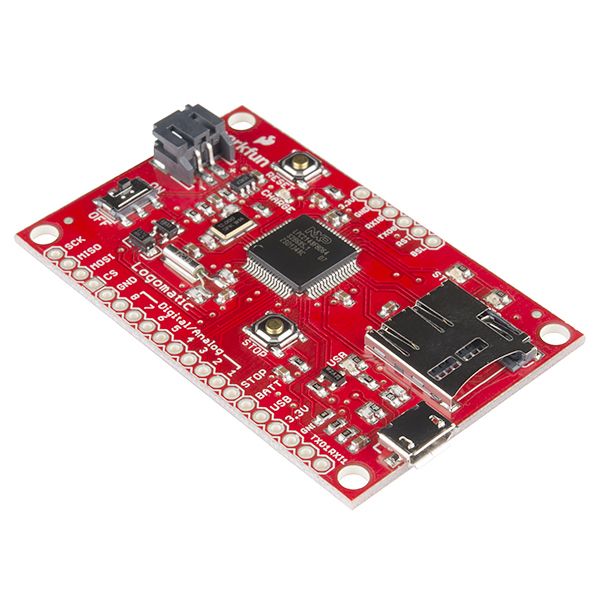

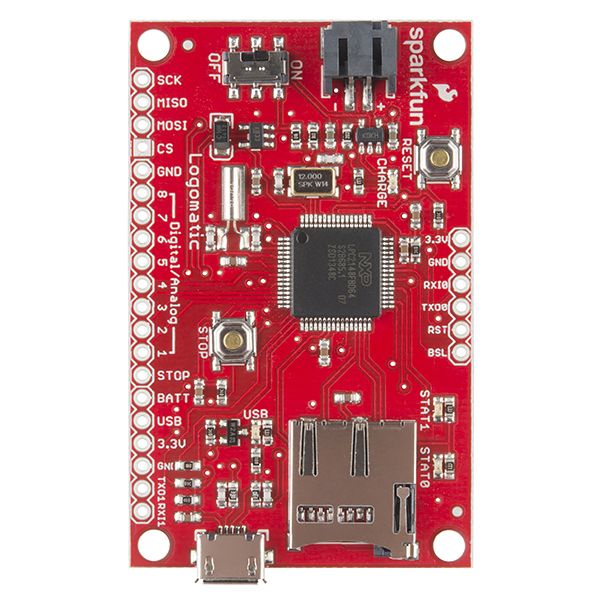

Logomatic v2 Serial SD Datalogger (FAT32)

Logomatic v2 Serial SD Datalogger (FAT32)

Plataforma de datalogging basada en LPC2148 ARM7. Permite conexión a discos USB. Trae incorporado un cargador de baterías y socket microSD.

COD: SFWIG12772

Peso: 0.010 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 98270.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description

The Logomatic v2 takes everything we learned with multiple logging projects over the years and boils it down to an easy to use device, that is now more adaptable than ever! Version 2 incorporates the LPC2148 with microUSB, battery charging, FAT32 formatting, and microSD support.

The Logomatic v2 uses a USB mass storage stack to appear under any operating system as a flash drive. Logs are created in FAT32 format on the microSD media and can be downloaded quickly over a USB connection by dragging and dropping the text files from the device. The microSD card can also be removed and inserted into a card reader to download the logs.

This board comes with a JST connector to be powered from our line-up of LiPo batteries or other power sources up to 7.5VDC. If you choose to use LiPo batteries, the Logomatic v2 has a built-in charger to charge batteries off USB.

The Logomatic v2 ships with basic serial text and analog logging. Users can easily start with this firmware but are encouraged to modify the firmware for their specific requirements. It’s a truly flexible logger.

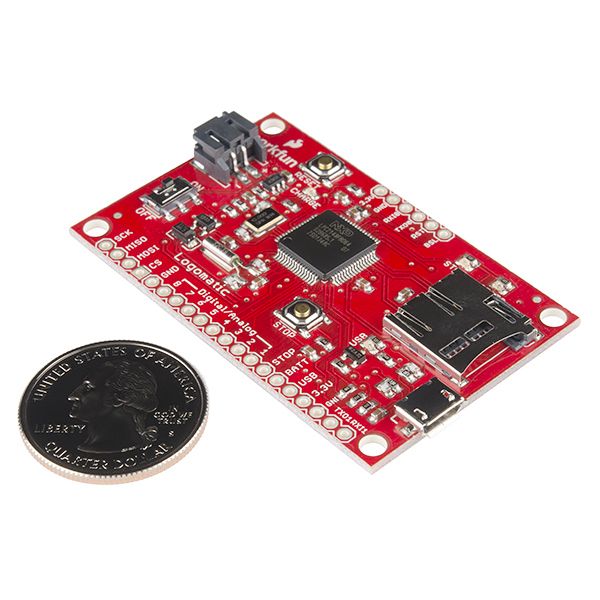

Dimensions: 1.5x2.4"

Features

  • LPC2148 ARM7
  • 512K user flash
  • 10 available GPIO pins
  • 2 Status LEDs
  • microUSB Link LED
  • External interrupt
  • microSD socket
  • Compatible with most SDHC flash media (no longer limited to 2GB)
  • Built-in MCP73831 USB charger (300mA max)
  • Built-in USB mass storage device bootloader
