RaspiRobot Board V2

RaspiRobot Board V2

Plataforma de control para robots destinada a Raspberry Pi. Permite el control de 2 motores con el driver L293. Posee socket para sensor ultrasónico.

COD: SE820024001

Peso: 0.025 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 71633.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

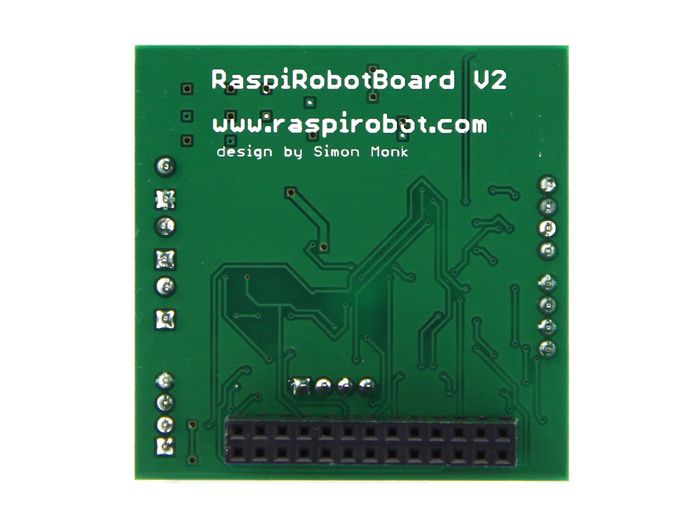

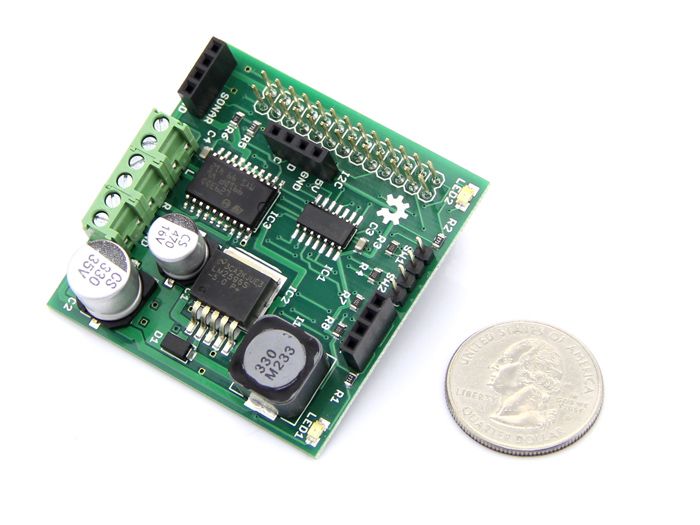

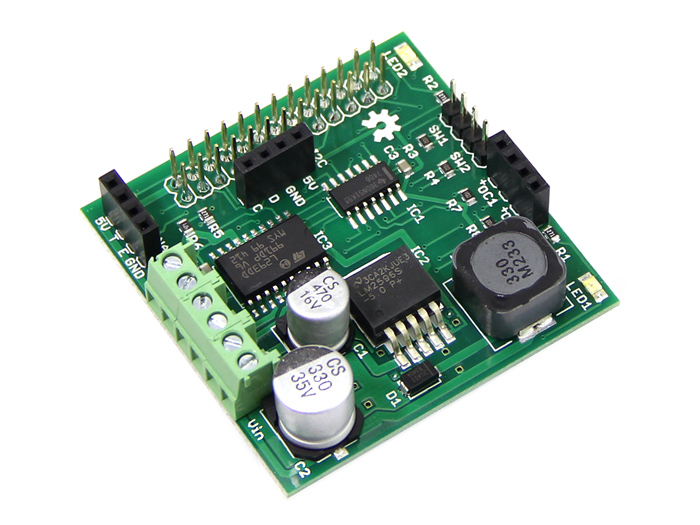

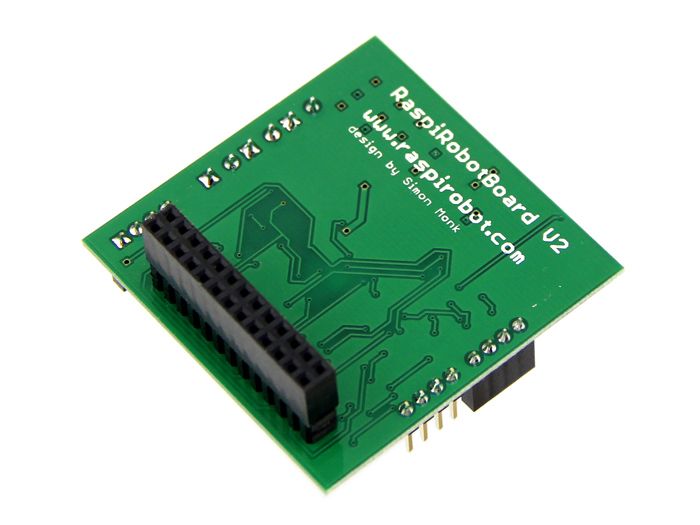

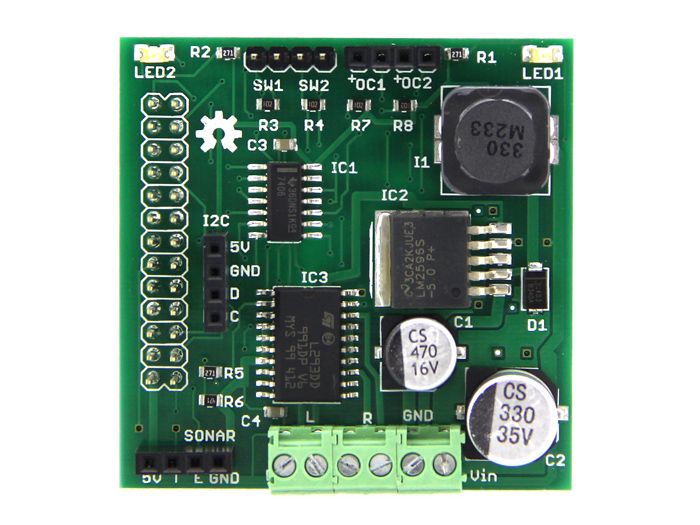

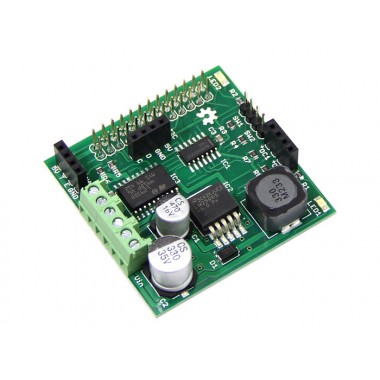

The RaspiRobot Board v2 is a motor interface board for the Raspberry Pi that includes a switched-mode power supply that will supply power to your Raspberry Pi from a variety of battery packs.

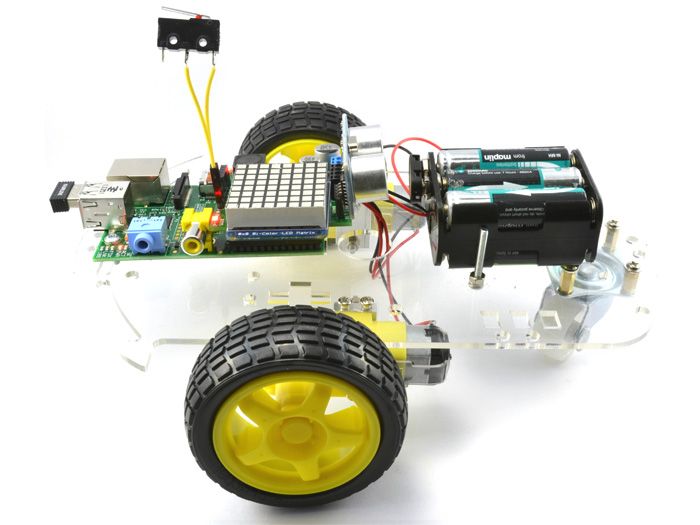

Note: Raspberry Pi, Robot chassis, rangefinder, display and switches are not included.

Features:
  • Comprehensive and easy to use Python library
  • Supplied fully assembled - no soldering
  • Bi-directional control of two motors (L293 chip)
  • Variable (PWM) power control. This allows you to both control the speed of the motors independently and use lower voltage motors than the voltage of your battery pack.
  • Supplies the Raspberry Pi with upto 2A using a switch mode power supply - run a fully loaded Pi and the Robot from 6 x AA batteries
  • Rangefinder header socket directly compatible with a cheap HC-SR-04 ultrasonic range finder. Just plug it in
  • 5V I2C header, pin compatible with Adafruit displays
  • Two buffered open collector outputs
  • Two LEDsTwo switch inputs
  • Screw terminals for motors and battery

For full information on installing the library and controlling your RRBv2 from Python, see the library's github page here.
