4 Channels IR Reflective Sensor
Módulo de sensores infrarrojos de 4 canales, conformado por emisores y receptores. Posee potenciómetros para regular el rango de sensibilidad hasta 60mm.
COD: ESPS40201S
Peso: 0.032 Kg
Disponibilidad: En Stock
ARS 27150.00
El producto no está disponible para la venta en este momento
Características

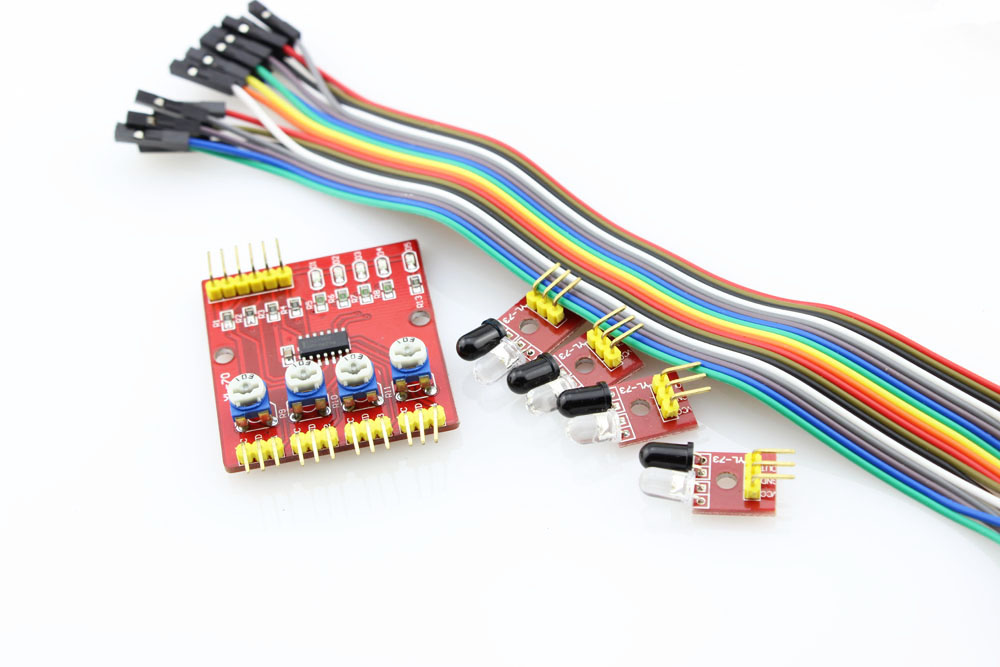

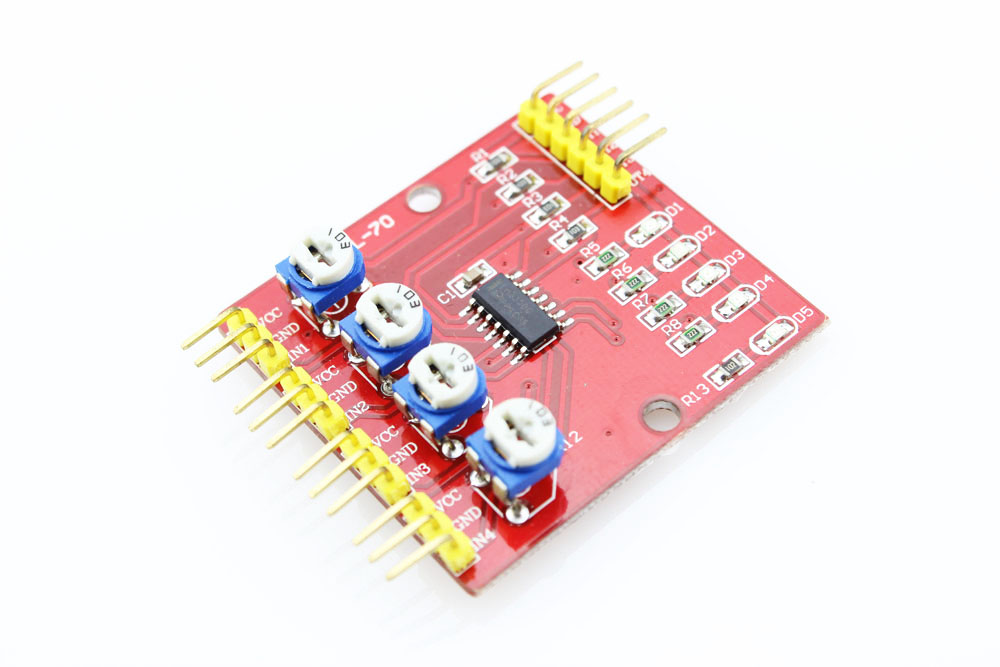

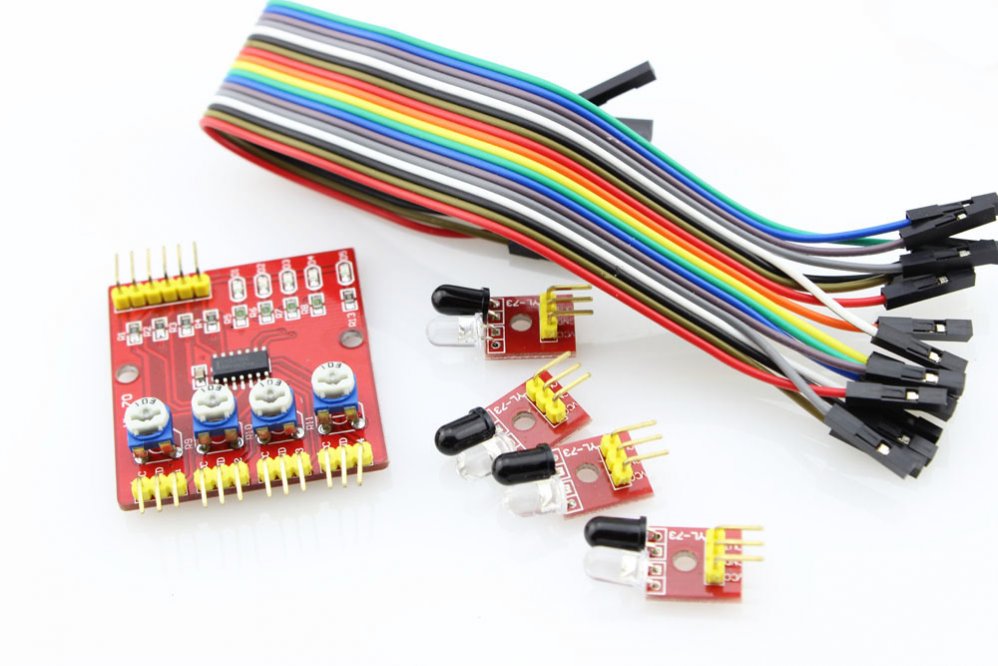

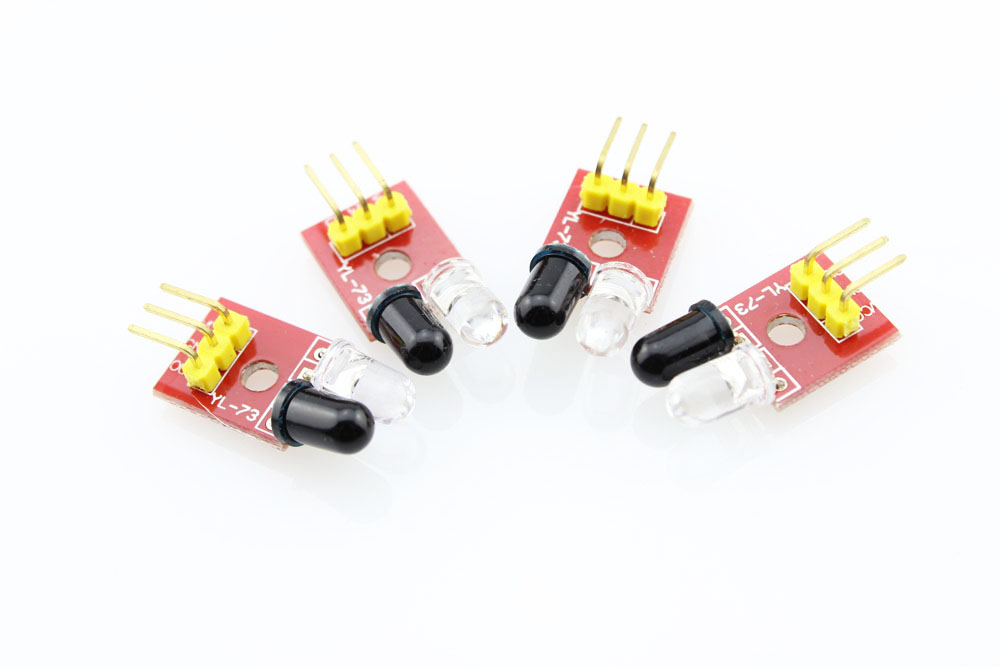

This 4 channels IR reflective sensor includes 4 IR sensors and mainboard to handle all the signals. Each IR reflective sensor is composed of an IR emitter and a receiver, if something is in the measuring range, the sensor would outputs related signal. There are also 4 potentiometers on the mainboard so that the measuring range can be adjusted as you wish.
Application Idea
- Smart car;
- Line and edge following;
- omni-directional detecting;
- On-board indicator;
Specification
- Supply Voltage: 3.3V ~ 5.5V;
- Supply current: >1A recommended;
- Measuring range: Adjustable, range from 1mm to 60cm;
- Output: TTL 0/1, when the sensor received the reflected infrared, the indicate LED light and output TTL 0, otherwise output the TT L 1, and the LED off.
