Raspberry Pi Camera Module

Raspberry Pi Camera Module

Cámara de 5 MP para Raspberry Pi. Soporta video 1080p o fotos de 2592 x 1944.

COD: SFDEV11868

Peso: 0.017 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 23455.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

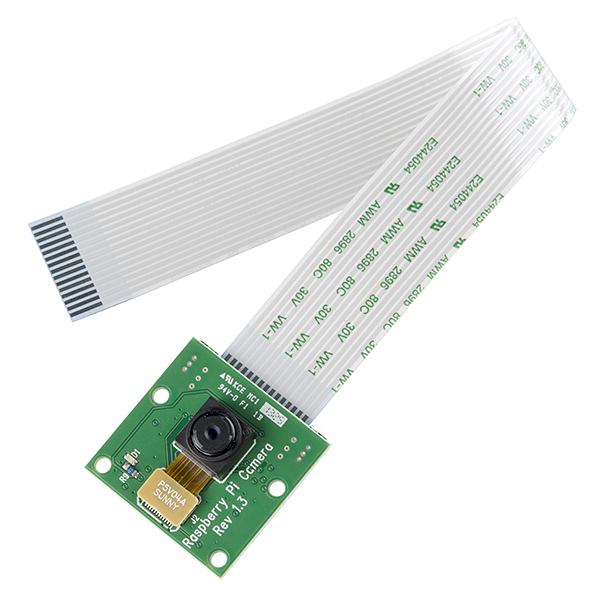

This 5mp camera module is capable of 1080p video and still images and connects directly to your Raspberry Pi. Connect the included ribbon cable to the CSI (Camera Serial Interface) port on your Raspberry Pi, boot up the latest version of Raspbian and you are good to go!

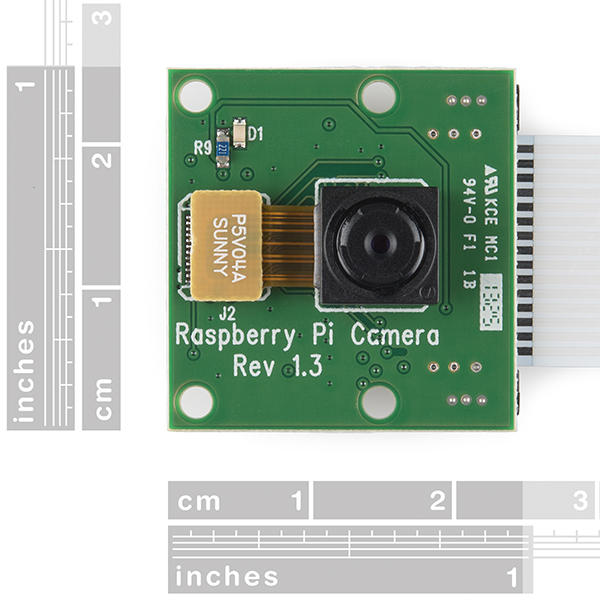

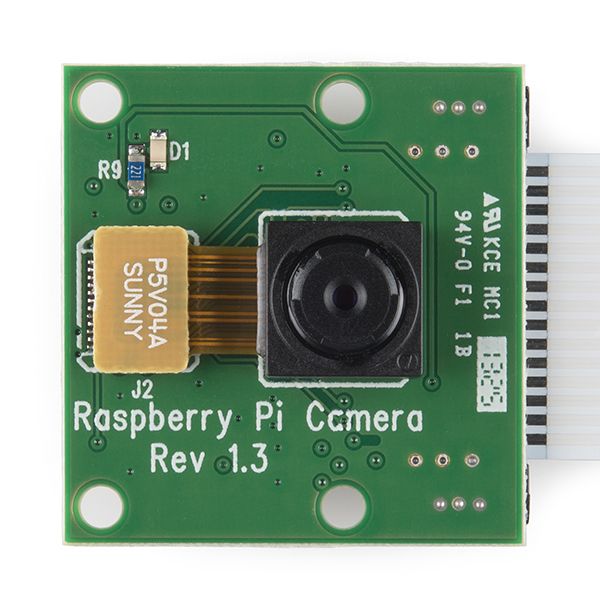

The board itself is tiny, at around 25mm x 20mm x 9mm and weighing in at just over 3g, making it perfect for mobile or other applications where size and weight are important. The sensor has a native resolution of 5 megapixel, and has a fixed focus lens onboard. In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p30, 720p60 and 640x480p60/90 video.

Note: This module is only capable of taking pictures and video, not sound.

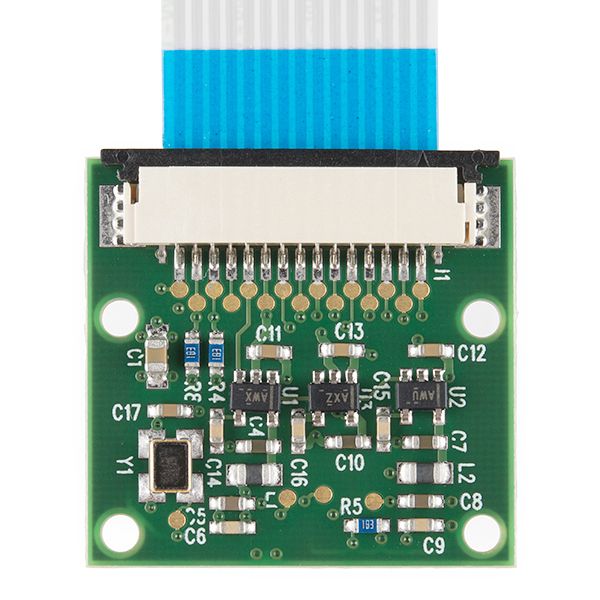

RPI CAMERA BOARD plugs directly into the CSI connector on the Raspberry Pi. It's able to deliver a crystal clear 5MP resolution image, or 1080p HD video recording at 30fps with latest v1.3. Board features a 5MP (2592 × 1944 pixels) Omnivision 5647 sensor in a fixed focus module. The module attaches to Raspberry Pi, by way of a 15 pin Ribbon Cable, to the dedicated 15 pin MIPI Camera Serial Interface (CSI), which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data to the BCM2835 processor.
  • Compatible all models of Raspberry Pi 1, 2 and 3
  • 5MP omnivision 5647 camera module
  • Still picture resolution of 2592 x 1944
  • Video supports 1080p at 30fps, 720p at 60fps and 640x480p 60/90 recording
  • 15 pin MIPI camera serial interface plugs directly into the Raspberry Pi Board
  • Size is 20mm x 25mm x 9mm
  • Weight of 3g
  • Fully compatible with the ModMyPi Raspberry Pi Case
Compatible with Raspberry Pi Model A/B/B+
