GPS Receiver for Arduino (Model A)

GPS Receiver for Arduino (Model A)

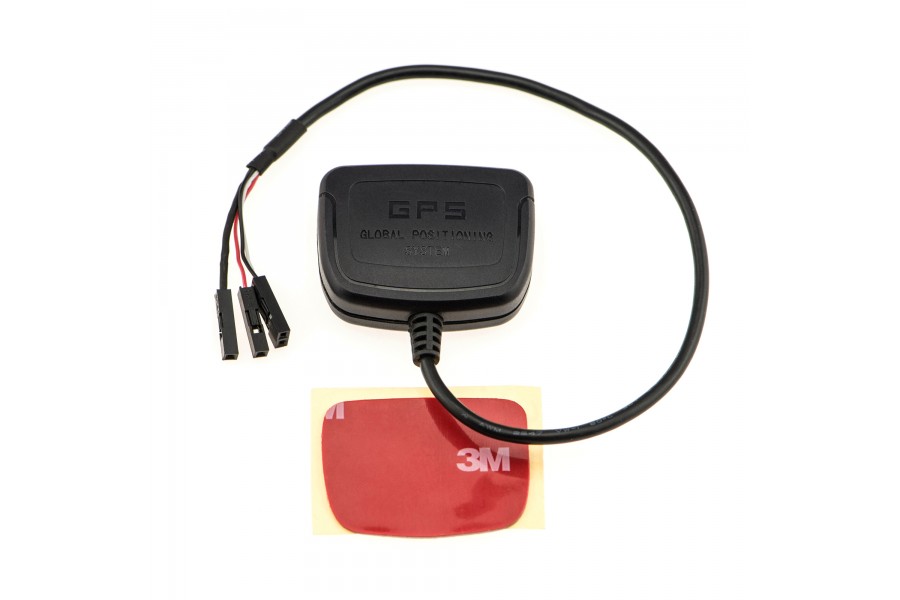

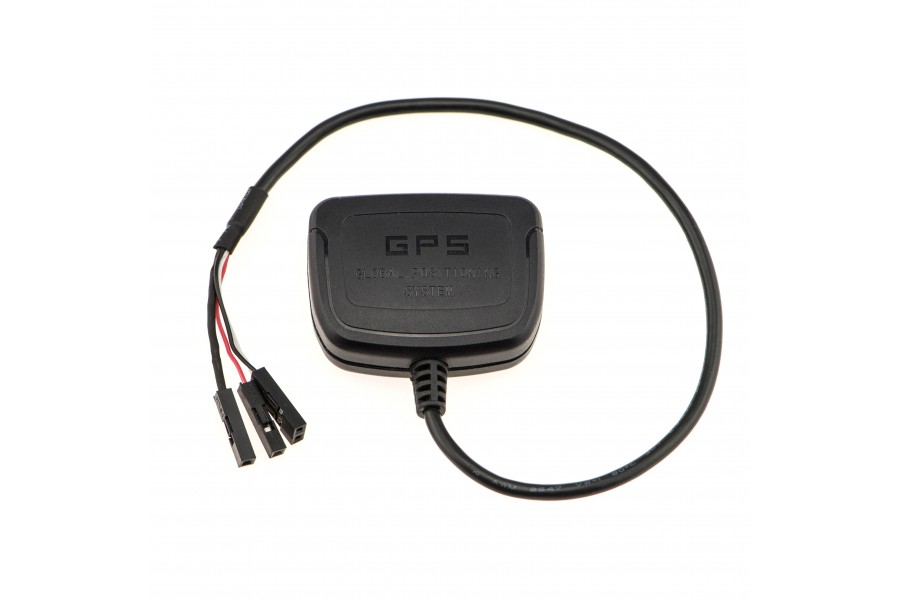

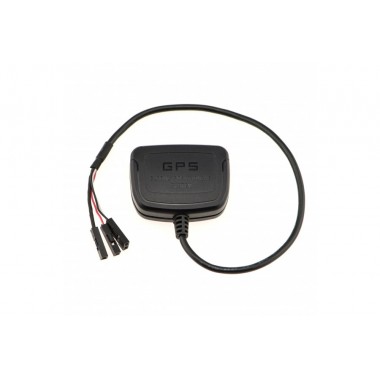

Módulo GPS con antena integrada en gabinete sellado, ideal para adherir en vehículos.

COD: DFTEL0083A

Peso: 0.100 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 90083.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Introduction

GPS receivers can be easily found in daily life, such as smartphones, cars, and tablets. They are used to track the loaction all over the globe.

This GPS Receiver for Arduino is a unit which embeds a GPS module and an antenna in a small foot-print enclosure. By using TinyGPS library, Arduino can retrieve geographic coordinates (latitude and longitude, altitude), speed, heading and GMT time directly.

The update rate is an important performance index of a GPS receiver. Most GPS in mobile phones provide an update rate of 1Hz, which means, only one set of data can be retrieved in one second. This GPS receiver has an update rate of 5Hz, which means the data interval is greatly reduced and thus can be very useful in more demanding applications (e.g. on fast-moving vehicles).

Pin Definition
  • Black: RxD
  • White: TxD
  • Red: VCC
  • Black (thick): GND

Specification

  • U-BLOX G6010 solution
  • 5Hz output
  • 38400bps TTL serial interface
  • 3.3V @ 41mA
  • 50-Channel receiver
  • Extremely high sensitivity -161dBm
  • Accuracy 2.5m (Autonomous) / <2m[SBAS]
  • Operating temperature: -40°C to 85°C
  • Hot Start : 1s
  • Warm Start : 32s
  • Cold Start : 32s
  • Ceramic Antena 25*25*2mm
  • Module Size 25*28*7.5mm
  • Enclosure Size 40x30x10mm
  • LED indicator
