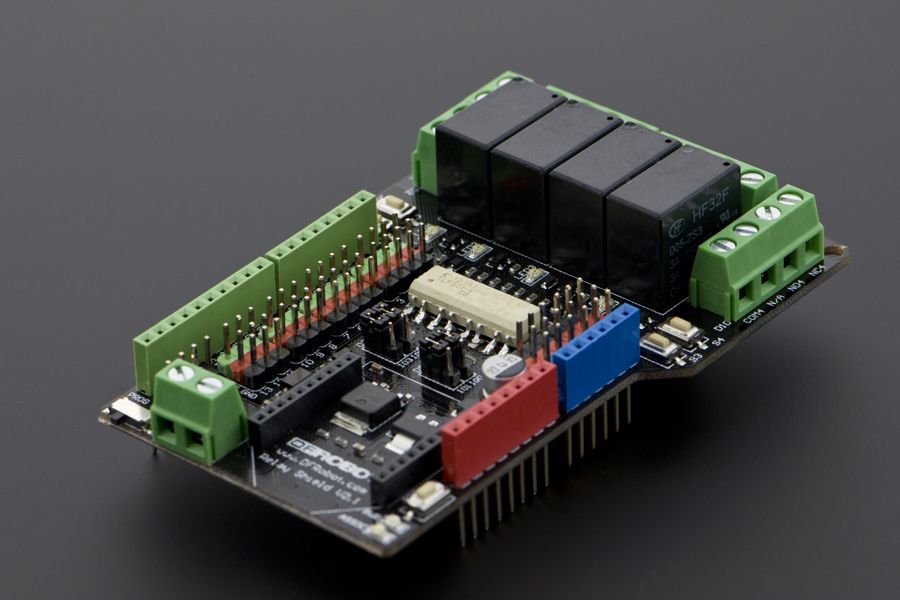

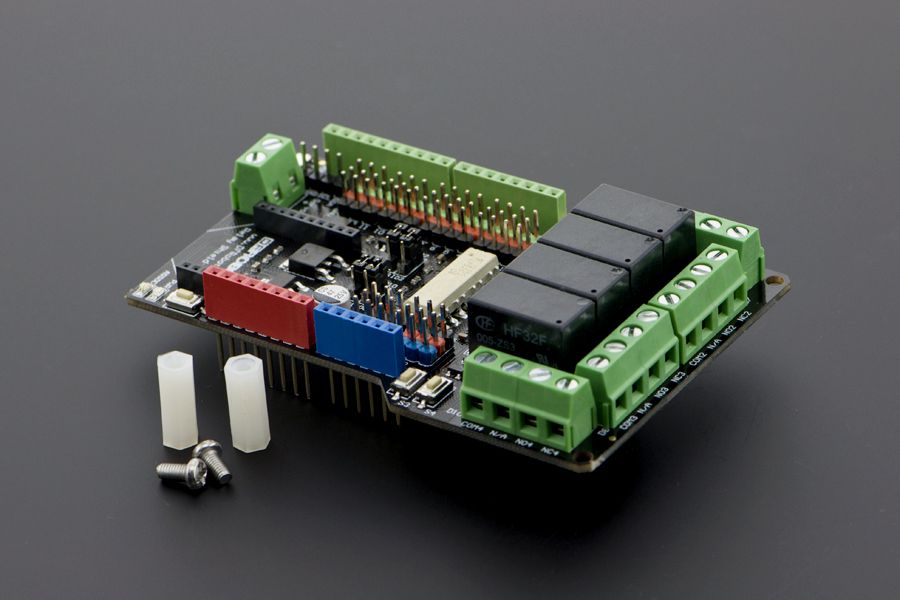

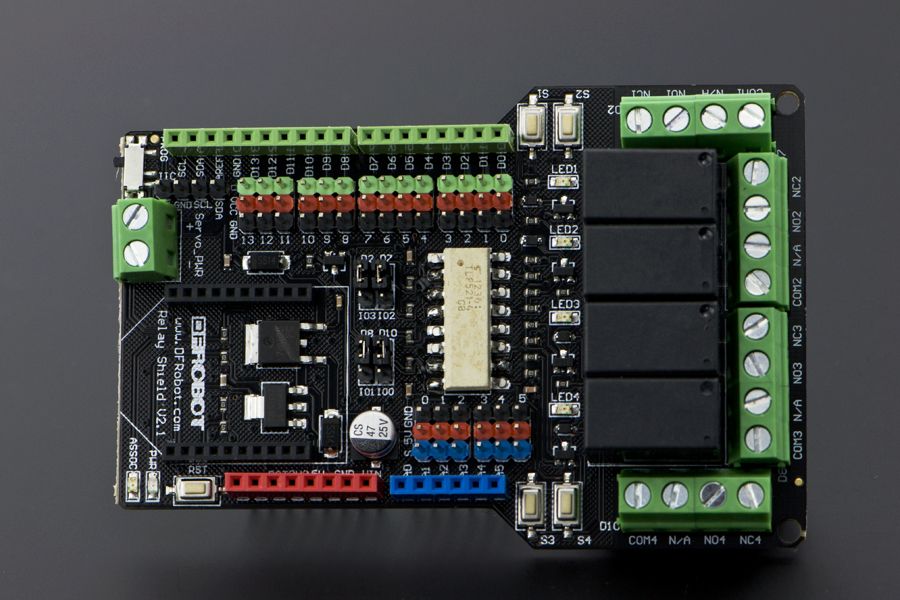

Relay Shield for Arduino V2.1
Shield compatible Arduino capaz de controlar 4 relés. Posee socket XBee.
COD: DFR0144
Peso: 0.100 Kg
Disponibilidad: Sin Stock
ARS 32356.00
El producto no está disponible para la venta en este momento
Características
Introduction
This relay shield is an ideal solution for home automation and robotics purposes.
This DFRoobot Relay Shield V2.1 is a completely new design which is capable of controlling 4 relays at a time. The max switching power could be DC 90W or AC 360VA. It could be directly controlled by Arduino/DFRduino controllers through digital I/Os with external 9V supply. With built-in Xbee socket, it can be wirelessly controlled via Xbee/bluetooth/WPM.
Features

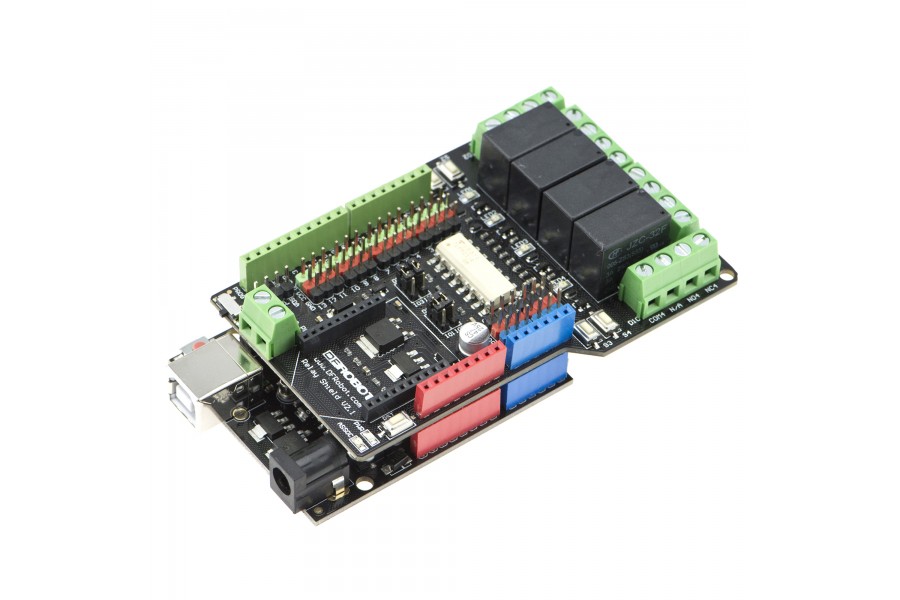

- Compatible with Arduino UNO Rev3

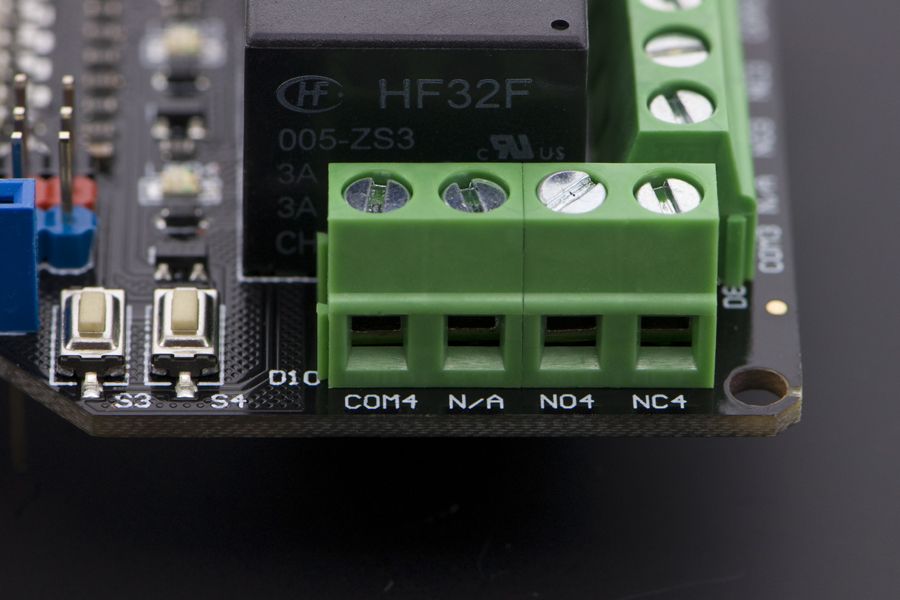

- Each Relay has its own test button to test the connection
- Standard DFRobot 3 Pin out
- XBee I/O direct control
Specification
- Compatible with Arduino Rev3
- 4 buttons to test module
- LED status indicator of relay
- Support Xbee IO directly control
- Xbee socket for wireless communication
- Selectable digital IO pin for control(Default digital 2,7,8,10)
- 6 channels Analog IO & 13 channels Digital IO
- Up to 4 Relay with photo-coupled circuit
- Contact Rating 3A AC 120V / DC 24V
- Max Switching Voltage AC 240V / DC 60V
- Max Switching Current 5A
- Max Switching Power AC 360VA / DC 90W
- Electrical Life (Min) 100,000 Operations
- Mechanical Life (Min) 10,000,000 Operations
- Safety Standard(relay) UL cUL TUV CQC
- Coil Working Voltage 9VDC
- Working temperature -30℃ to +85℃
- Working temperature 40% - 85%

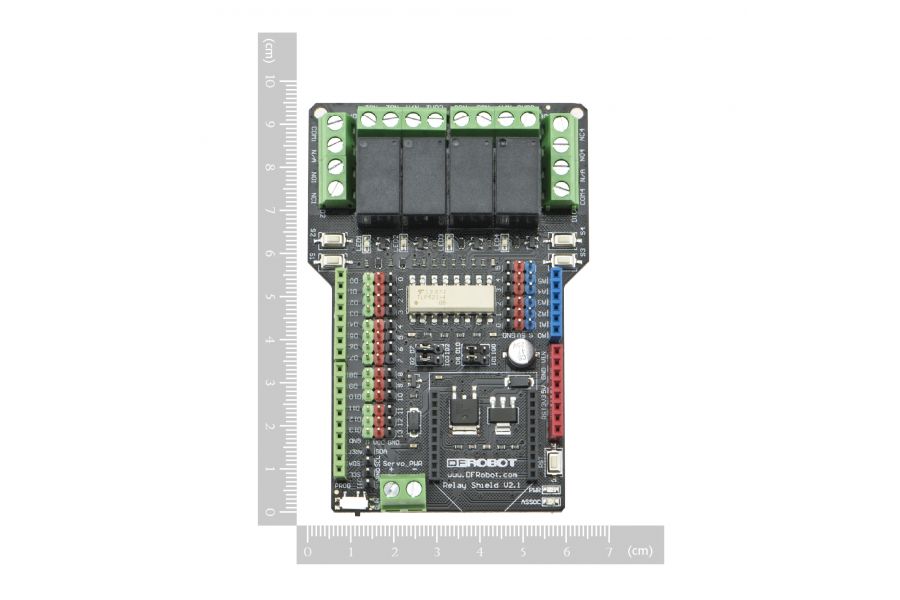

- Size:95x65mm
