Screw Shield V2 For Arduino
Shield para expansión de terminales de Arduino. Posee terminales con ajuste por tornillo para facilitar el acceso a las I/O.
COD: DFR0171
Peso: 0.100 Kg
Disponibilidad: En Stock
ARS 30552.00
El producto no está disponible para la venta en este momento
Características
Introduction

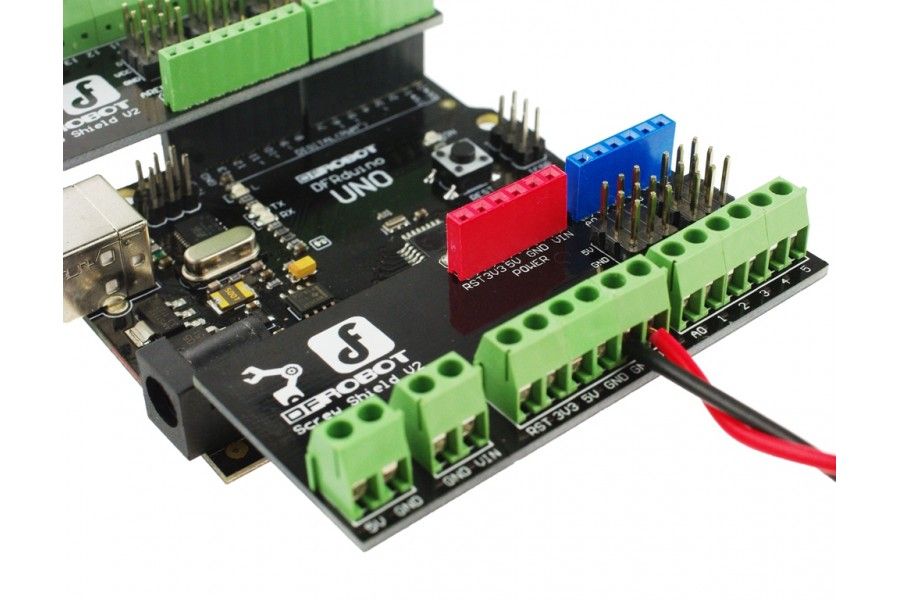

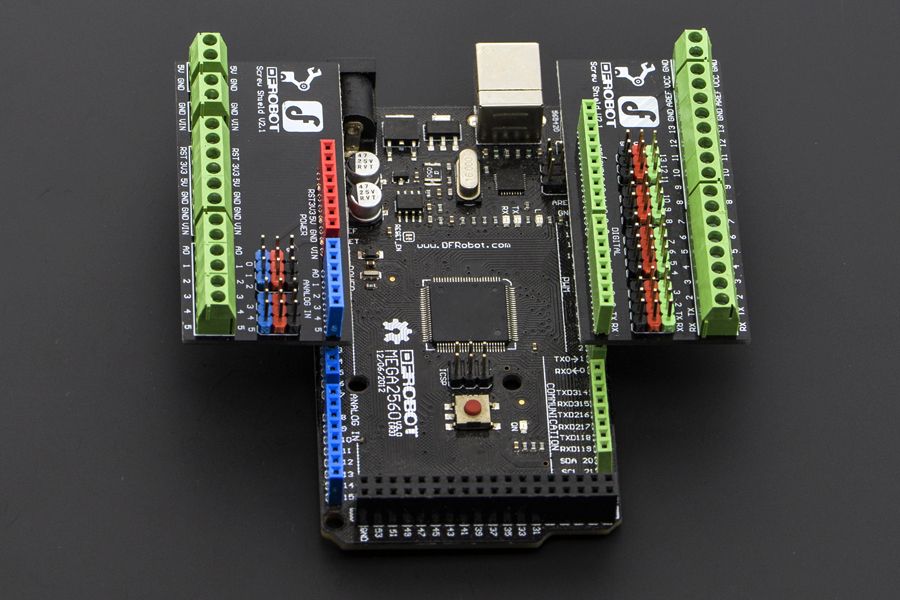

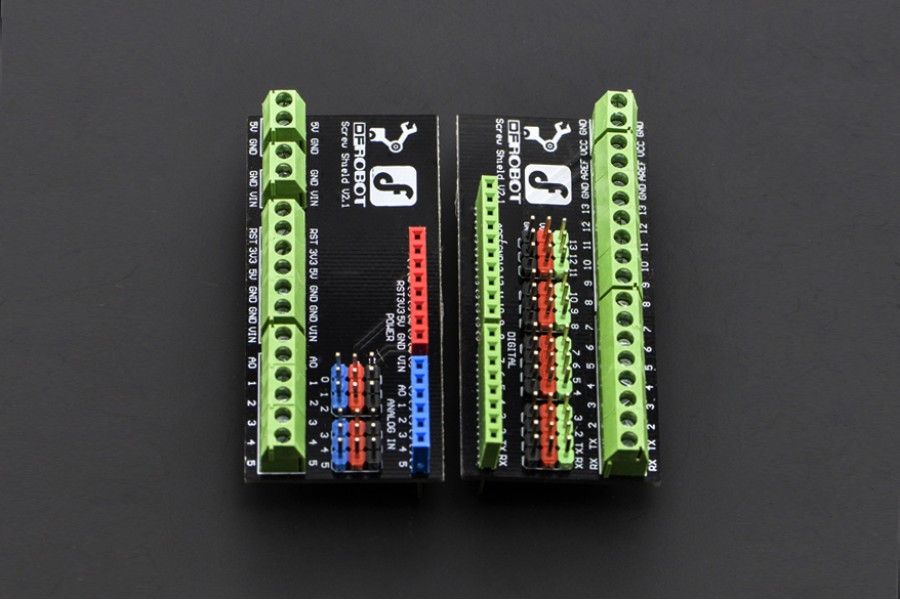

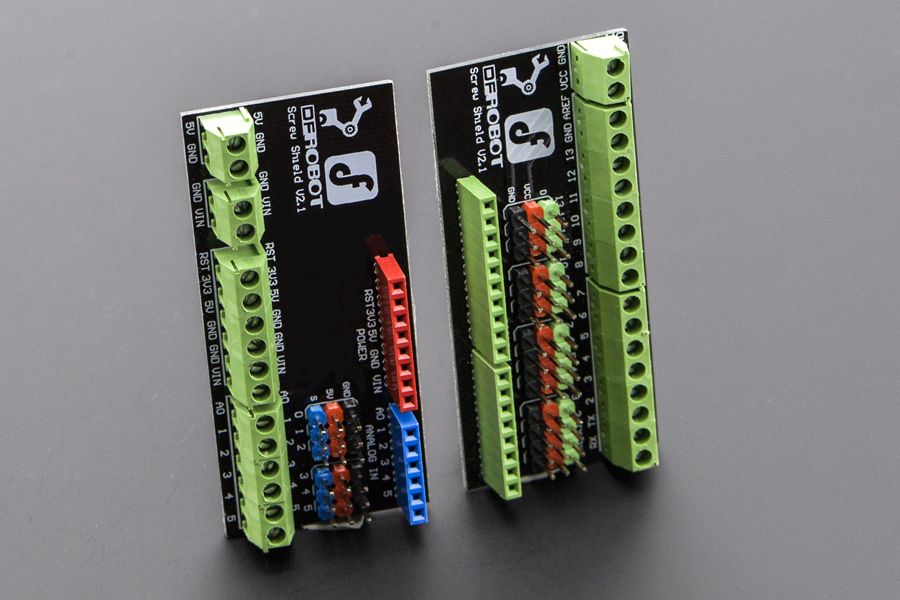

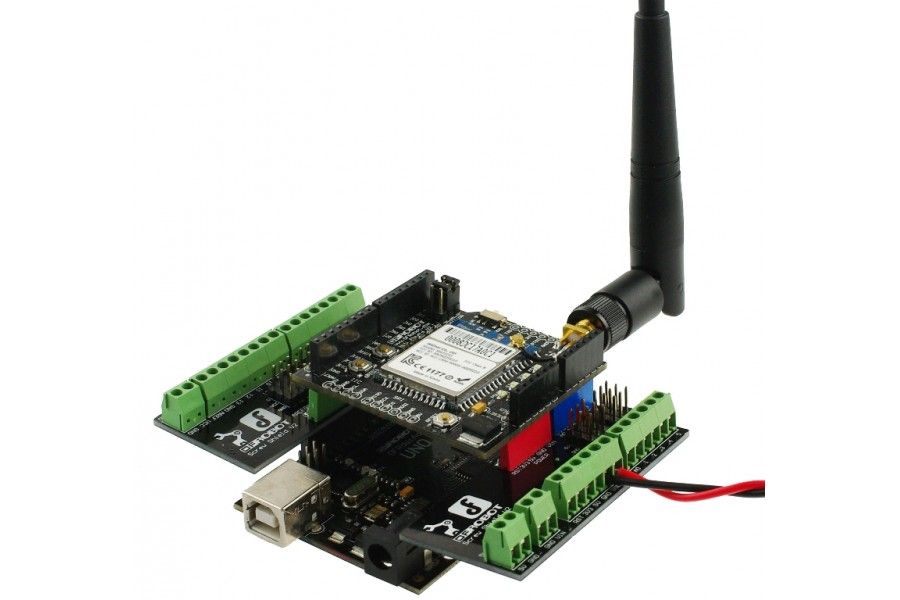

The DFRobot Arduino-Compatible Screw Shield is a terminal expansion board that allows you to screw in jumper wires to a screw terminal for a much stronger and secure connection for your I/O and power pins. Feel secure with this arduino-compatible screw shield.
The screw shield v2 from DFRobot also extend the power supply pins for the signal pins. You could directly plugin the sensors and the servos to the screw shield v2. The pin headers are color coded for easy identification of analog, digital, and power pins.
We commonly use:Green for digital I/O;Blue for Analog I/O;Red for Voltage
Specification
- I/O Screw terminals
- 3-Pin male headers for easy sensor/servo connection
- Colored pin headers
- Size: 32x65mm
