Capacitive Touch Keypad - MPR121

Capacitive Touch Keypad - MPR121

Keypad capacitivo con 12 pads y salida digital I2C.

COD: SFSEN12017

Peso: 0.010 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 13019.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description

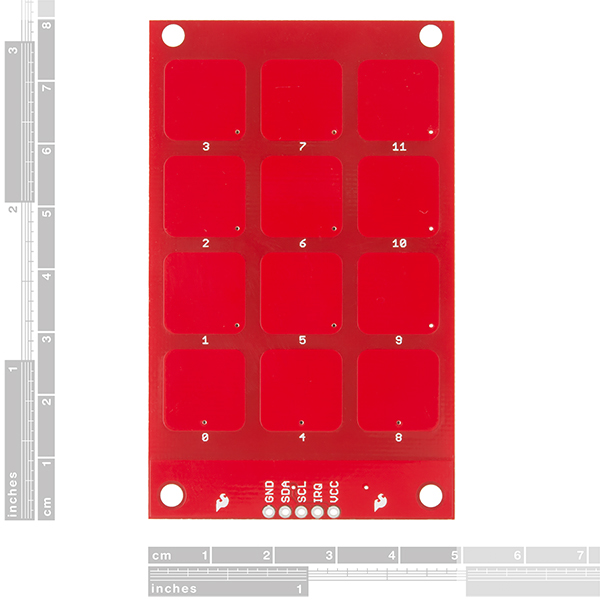

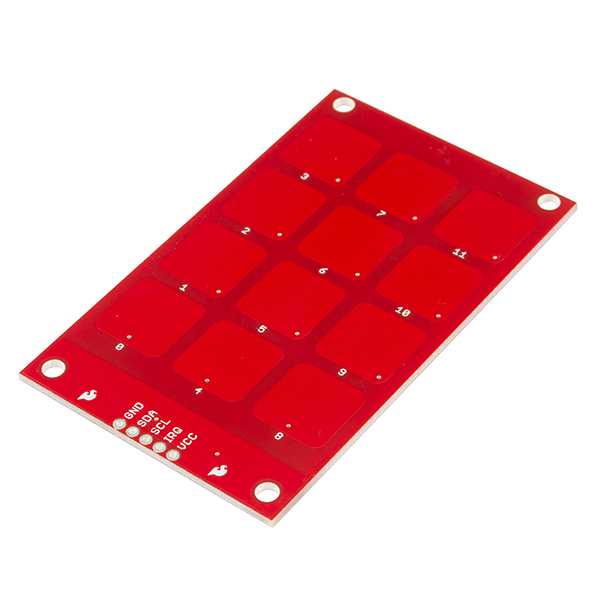

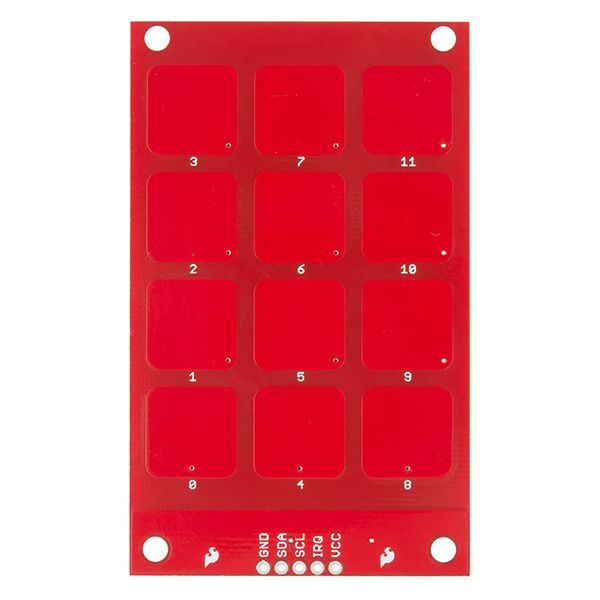

The MPR121 capacitive keypad uses the MPR121 and 12 touch sensitive pads to give you a simple ‘keypad’ with an I2C output. These keypads function by measuring the capacitance of twelve electrode points. When an object comes close to the electrode connector, the measured capacitance changes. This signals the MPR121 that something has touched a ‘button’.

The board also has four mounting holes allowing it to be used as an input system in place of traditional buttons. This keypad outputs 3.3V logic. If you are using a board which only accepts 5V logic, you will run into a problem. You will want to use a logic level converter, or a board which accepts 3.3V logic.
