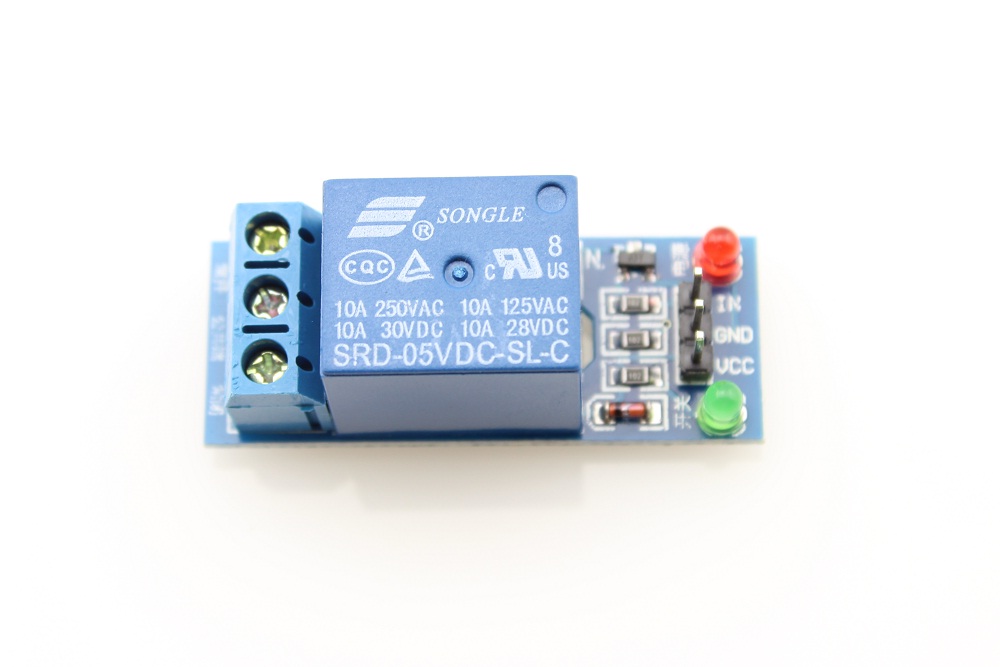

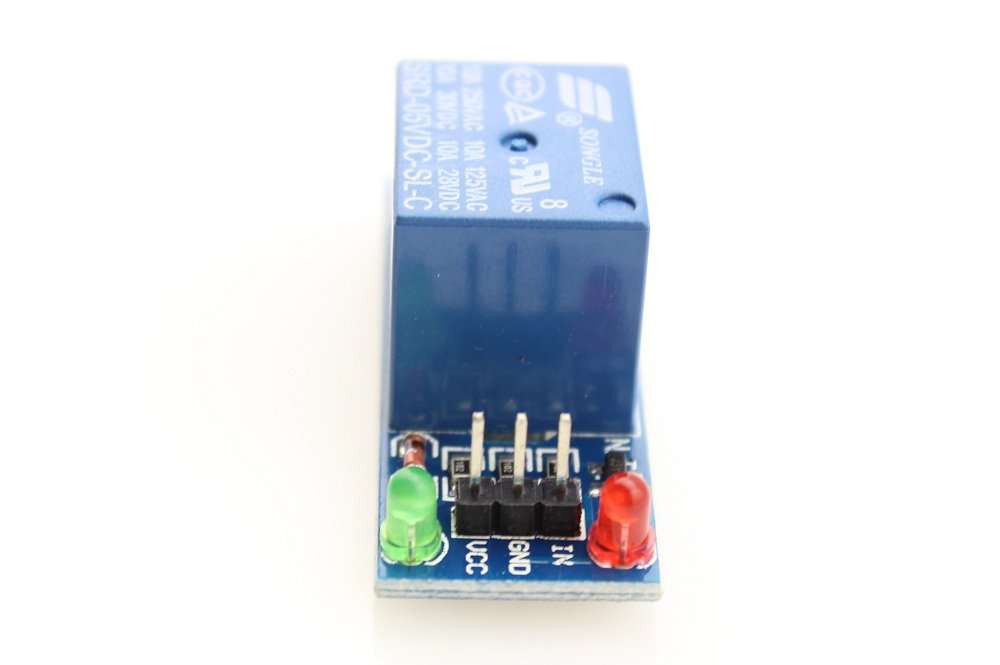

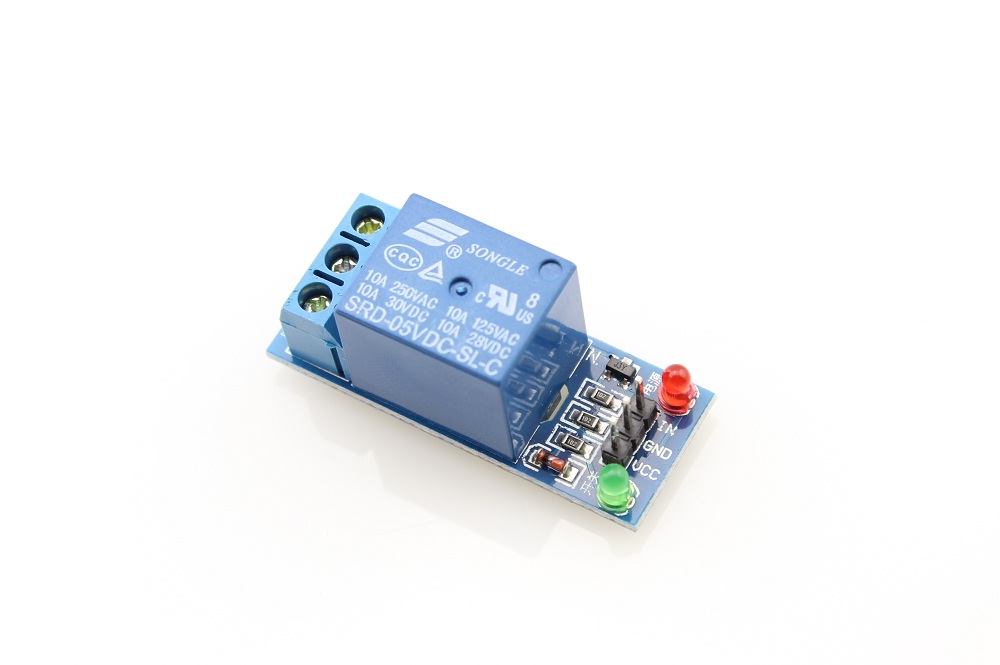

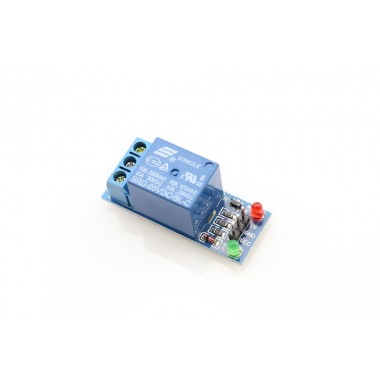

1-Channel Relay Module-10A

1-Channel Relay Module-10A

Módulo con relé de 5VDC. Soporta cargas de 10A a 250 VAC ó 30 VDC.

COD: EARE00101SL

Peso: 0.030 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 3068.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

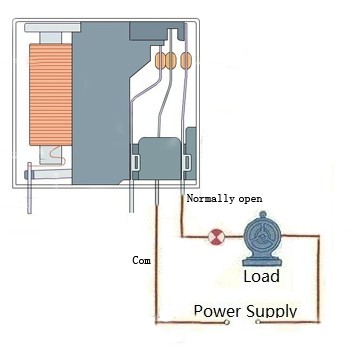

A Relay is a digital switch to control much higher voltages and currents than your normal Arduino boards does. When inputs a logic voltage, the relay will switch to allow current to flow or cutoff, depending on your wiring. A Relay usually consists of a coil, 1 common terminal, 1 normally closed terminal and one normally open terminal. When the coil is energized, the common terminal and the normally open terminal will have continuity.

Why do we want to use a relay and do we really need to? Anytime you want to switch on/off a device which draws more current or works with a high voltage, you'll need to use a relay, such as controlling of headlights, parking lights, horns, etc. Please Note that Connect the VCC to JD-VCC with the jumper when using.

Specification

  • Control Voltage: 5V DC
  • High Input voltage trigger
  • On-board LED to indicate the working status
  • Max Control Capacity:10A@250VAC or 10A@30VDC

Galería de Imágenes

Comentarios

Escribir Comentario

OpenHacks (05/03/2015 - 14:17)

Fernando, lamentablemente no tenemos ningun modelo de relé con optoacoplador. Saludos!

Fernando (05/03/2015 - 09:49)

Hola, quería saber si este modulo viene con optoacoplador. En caso de que no, ¿Hay algún otro que si tenga? (en lo posible de un solo relé).
