Serial Wifi Module- USR232

Serial Wifi Module- USR232

Módulo WIFI con interfaz serial

COD: EWWF2232USR

Peso: 0.075 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 18269.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

This Serial WiFi module is you best choice for you to connect your application to the internet. It is a complete ultra low power embedded TCP/IP solution. It is a standalone, embedded wireless 802.11b/g networking module. It incorporates a 2.4GHz radio, processor, TCP/IP stack, power management to let the users connecting to the internet with the serial port. With the relative low price, this module suits for more IOT applications such as smart home, smart agricultures.

Features

  • Support IEEE802.11b/g/n Wireless Standards;
  • Support TCP/IP/UDP Network Protocols;
  • Support UART/GPIO/Ethernet Data Interface;
  • Support Work As STA/AP/AP+STA Mode;
  • Support Router/Bridge Mode Networking;
  • Support Internal/External Antenna Option;
  • Support AT+ Instructions Set for Configuration;
  • Support Friendly Web Configuration Page;
  • Support Palmodic Signal;
  • Support Uart Port Auto-Frame Function;
  • Single +3.3v Power Supply;
  • Small Size:25x40 mm;
  • FCC/CE Certificated;

Package list

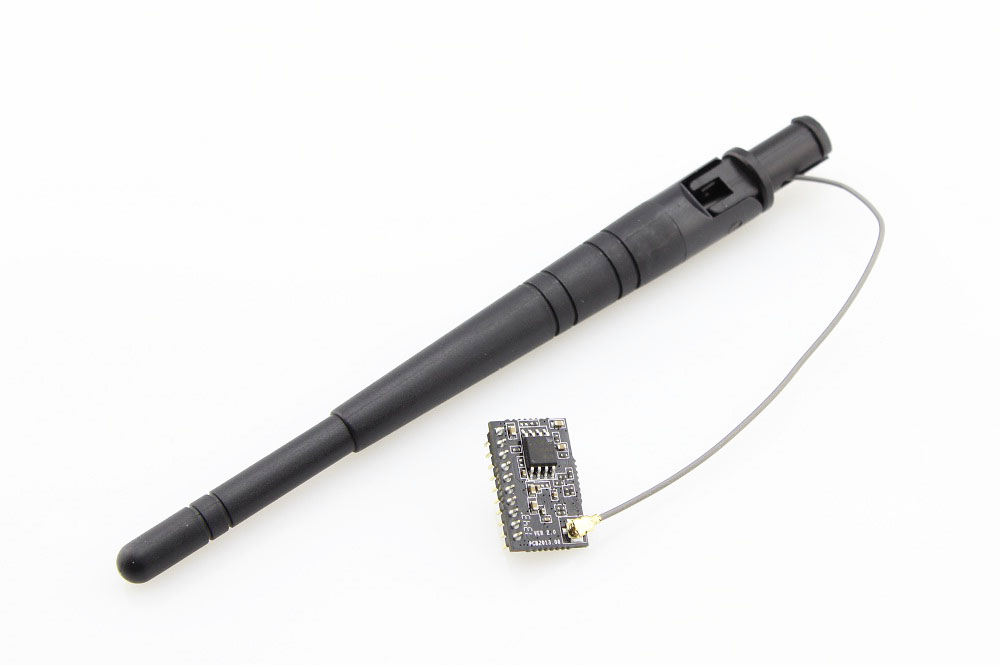

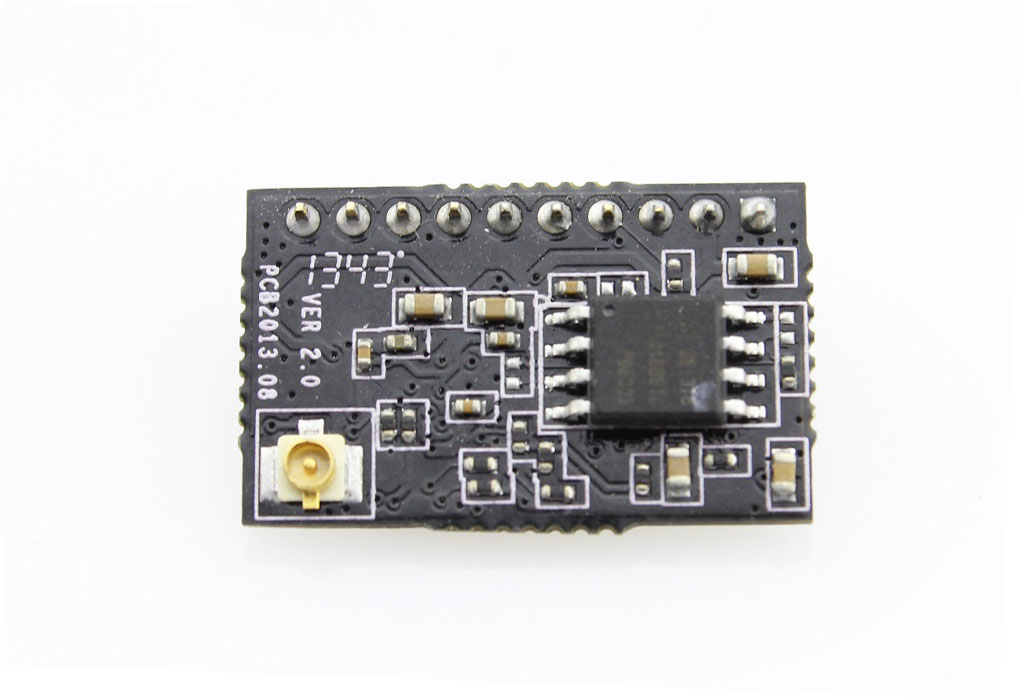

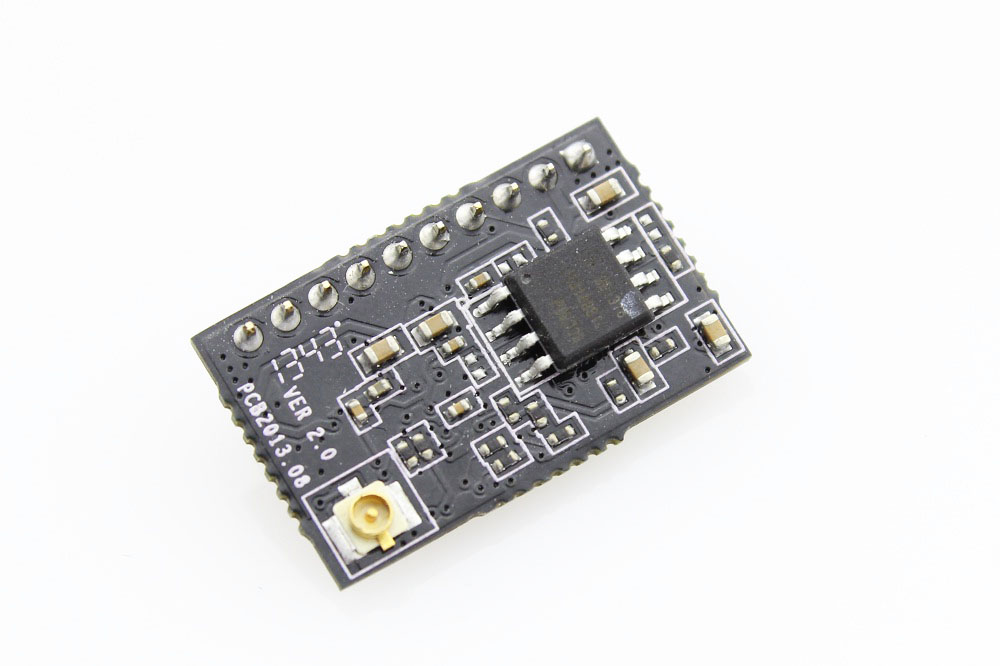

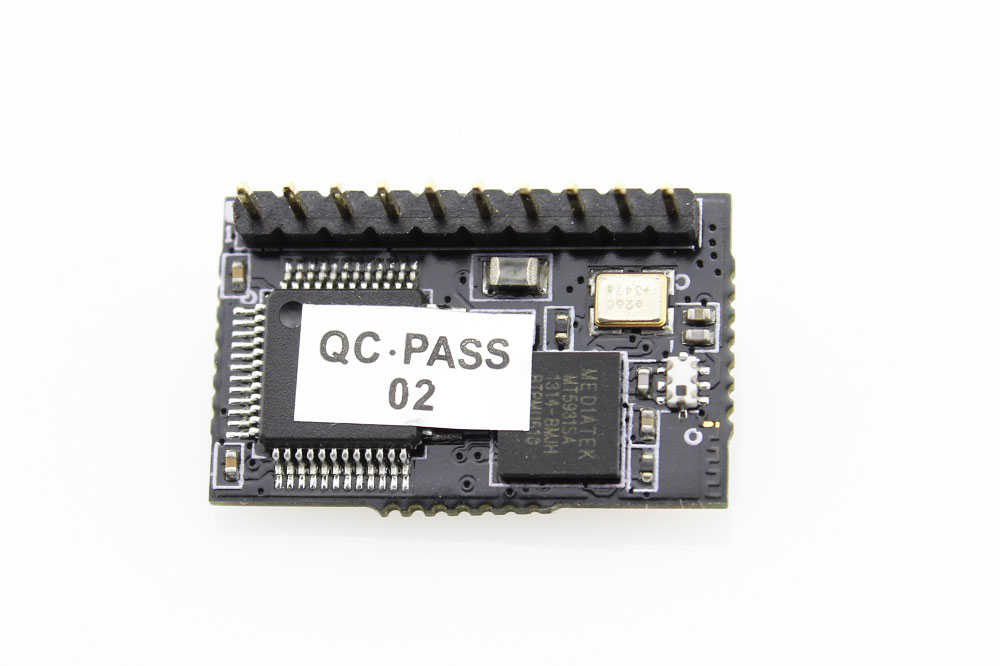

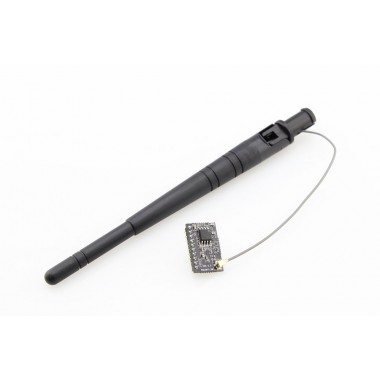

  • Serial Wifi Module PCBA x1
  • antenna x1
