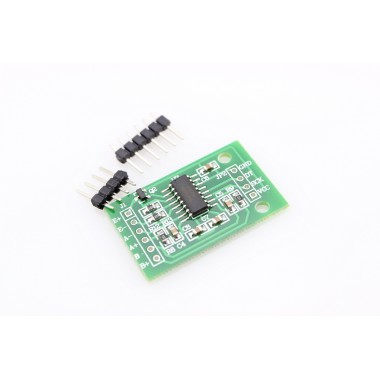

Weight Sensor Amplifier- HX711
Amplificador para balanzas o celdas de carga basado en HX711, un amplificador de precisión de 24 bits.
COD: ESHX711O
Peso: 0.003 Kg
Disponibilidad: Sin Stock
ARS 4197.00
El producto no está disponible para la venta en este momento
Características
This Weight Sensor amplifier is based on HX711, which consist of an amplifier and a precision 24-bit analog-to-digital convertor designed for weigh scale and industrial control applications to interface directly with a bridge sensor. Compared with other chips, HX711 not only has a few basic function, also contains high integration, fast response, immunity, and other features. The chip lowed the cost of the electronic scale, at the same time, improving the performance and reliability. The input interface of this weight sensor module is used sensor interface, which is compatible with Arduino I/O ports. The output adopts compact terminal that makes weight sensor module easier to connect the weight sensor. It's the best choose for electronic enthusiast to do some tiny home scale.
Galería de Imágenes
Archivos
hx711_english.pdf (160 Kb)Comentarios
Escribir ComentarioOpenHacks (31/08/2015 - 16:07)
Hola Juan, tenemos ésta celda: https://www.openhacks.com/page/productos/id/424/title/SFSEN10245 . Se alimenta con tensiónes de hasta 10 V.
juan gonzalez (30/08/2015 - 20:13)
La celda de carga de que voltage de alimentación debe ser? tenés alguna en stock?
Juan (08/11/2014 - 20:41)
Este amplificador es para celdas de cuantos kg?
