MBoard

MBoard

Board compatible con Arduino Leonardo para control de motores. Está basado en el driver L298P. Posee socket SD.

COD: IM121126001

Peso: 0.060 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 54742.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

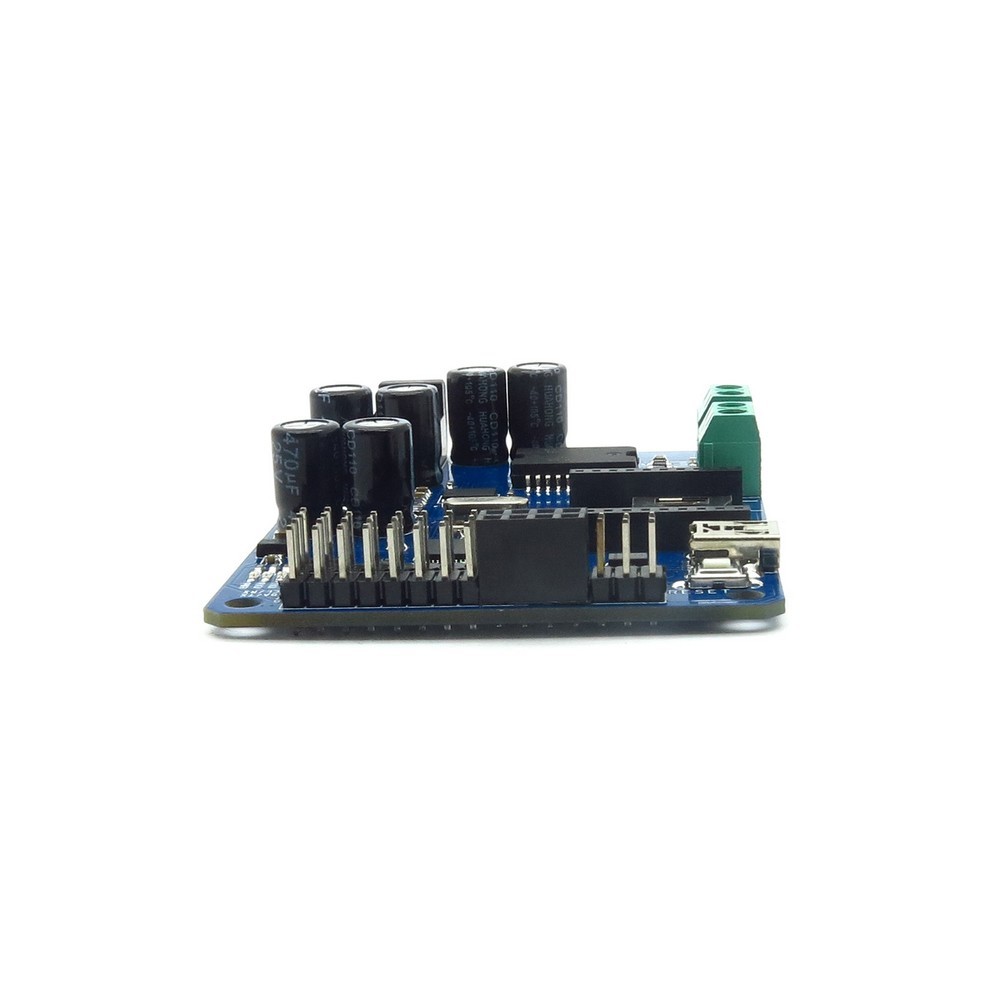

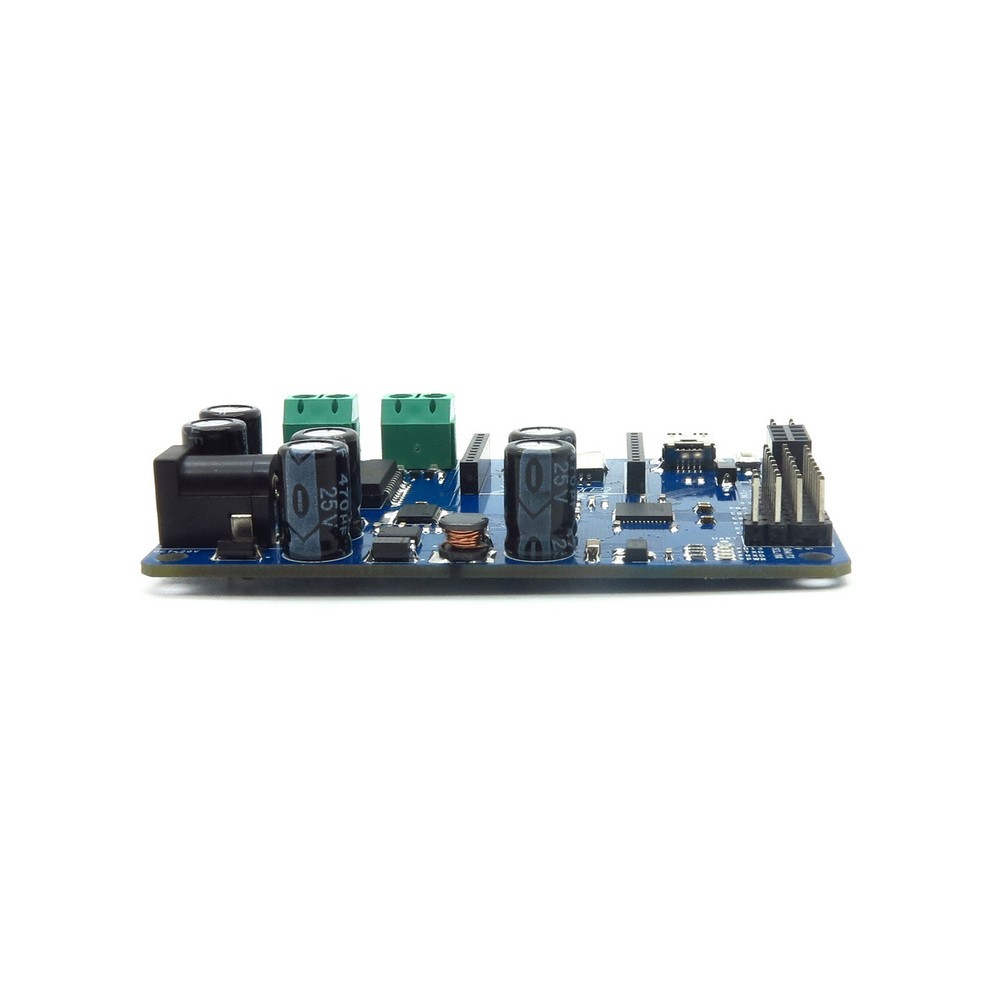

The MBoard is a unique Arduino board which features a L298P motor driver and an ATMega32U4. Use this board you can drive the DC motor directly and stepper motor with software IO control. This board will add wireless as well as motor control connectivity to your projects. It’s great for anything from home automation to robot control. The possibilities are endless!

Microcontroller ATMega32U4
Max Frequency 16M
RAM Capacity 2K
FLASH Capacity 32K
External Resources
  • Onboard SD socket
  • Electronic Brick Interface
Power Supply
  • External 12V
  • External 9V
  • USB 5V
I/O Operation Level
  • 3.3V
  • 5V
Board Size 80.77mm x 57.66mm
Model IM121126001
Version 1.0
Weight 60.00g
Accessories No
