Gyro Breakout Board - LPY503AL Dual 30º/s

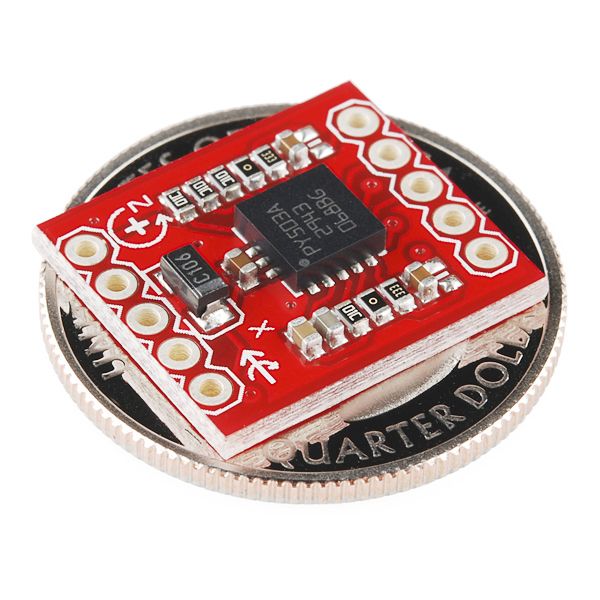

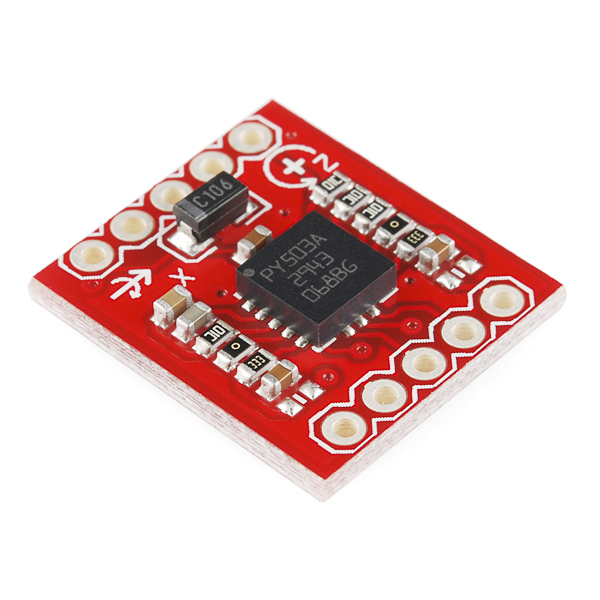

Breakout de sensor giróscopo dual LPY503AL. Permite medir velocidad angular (pitch y yaw) y mide ±30º/s a fondo de escala.
COD: SFSEN11341
Peso: 0.001 Kg
Disponibilidad: En Stock
ARS 36503.00
El producto no está disponible para la venta en este momento
Características
Description: This is a breakout board for the ST's dual-axis LPY503AL gyro. The LPY503AL is a MEMS motion sensor that measures angular velocity along the pitch and yaw axes with a full scale of ±30°/s. Two different analog outputs are provided for both the x- and z- axes - one 1x amplified and the other 4x amplified.
A regulated voltage between 2.7 and 3.6VDC should be supplied to the power pins. We have the filtering circuits all set up; you'll just need to connect the outputs to an ADC, and you're ready to go.

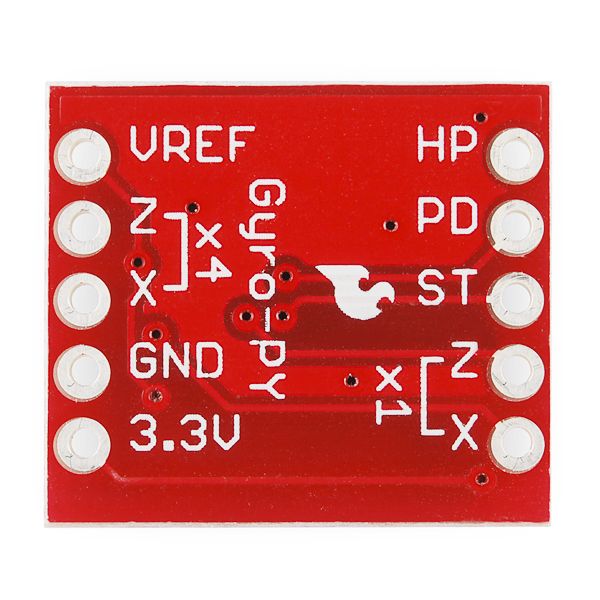

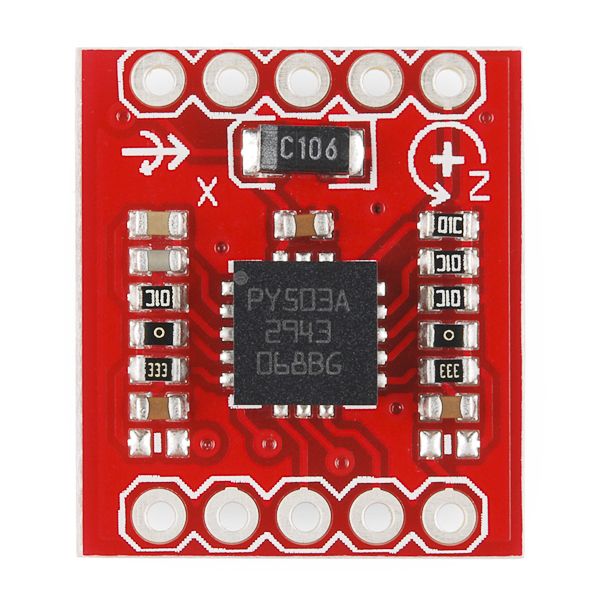

This breakout board includes the gyro and all necessary filtering capacitors as shown. The 1x and 4x amplified outputs of both axes are connected to the 0.1" pitch headers, along with the power-down, self-test, high-pass filter reset, and power pins.
We've revised this board to correct errors with the high-pass filter, so the output should settle when the unit stops moving.
Features:
- 2.7 to 3.6VDC power supply
- Dual axis, pitch and yaw sensing
- 1x and 4x amplified outputs for each axis
- Low power consumption
- All necessary filtering components included
- Access to power-down, self-test, and high-pass filter reset pins
Dimensions: 0.6x0.7"
LPY503AL Datasheet (223 Kb)
Eagle Files (22 Kb)
