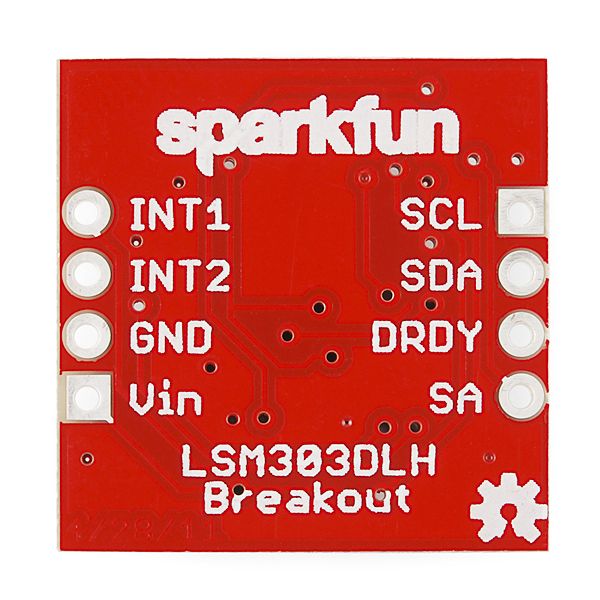

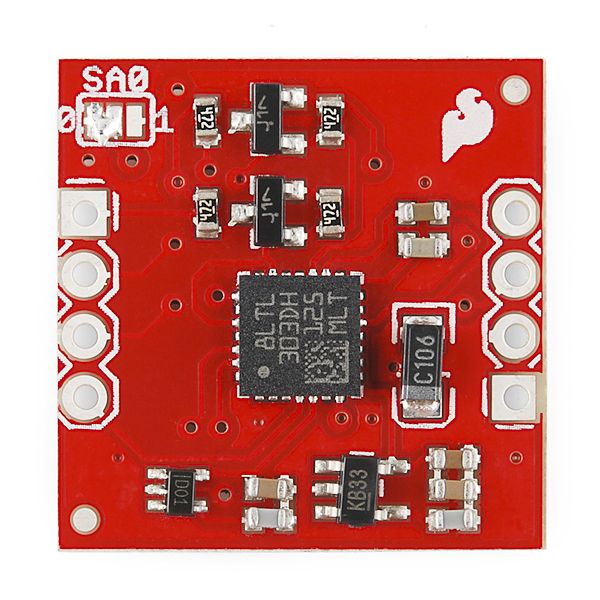

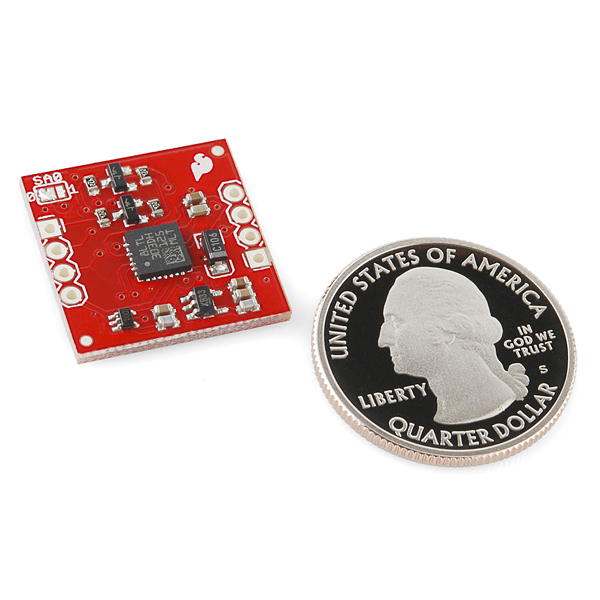

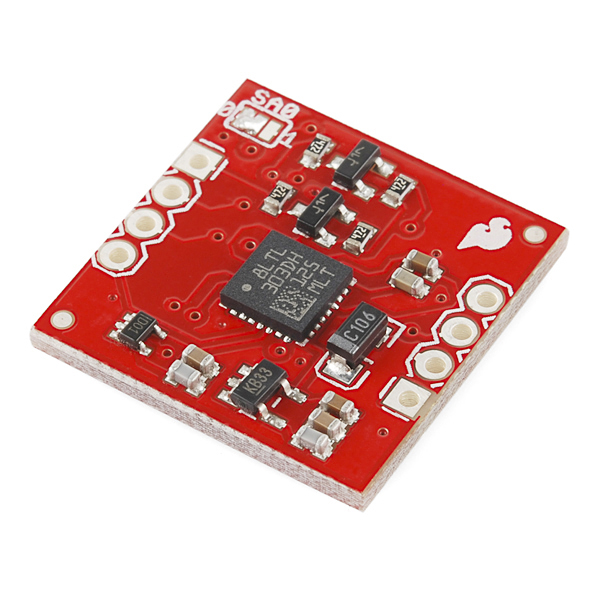

LSM303DLMTR Breakout Board - Tilt Compensated Compass
Breakout de LSM303DLMTR. Incluye acelerómetro y compás, ambos de 3 ejes y posee salida digital I2C.
COD: SFSEN10888
Peso: 0.002 Kg
Disponibilidad: En Stock
ARS 56217.00
El producto no está disponible para la venta en este momento
Características
Description: The LSM303DLMTR is a triple axis accelerometer combined with a triple axis magnetic sensor. This arrangement allows for the LSM303 to perform 6D orientation detection. This breakout board uses the LSM303DLMTR to give you all the data you need to feed into a microcontroller and calculate tilt-compensated output!
Features:
- +- 2/4/8 g dynamically selectable full-scale
- +-1.3 to +- 8.1 Gauss magnetic field full-scale
- 16-bit data out
- I2C interface
- Embedded self-test
Schematic (42 Kb)
Eagle Files (59 Kb)
