Caudalímetro 1/8

Caudalímetro 1/8

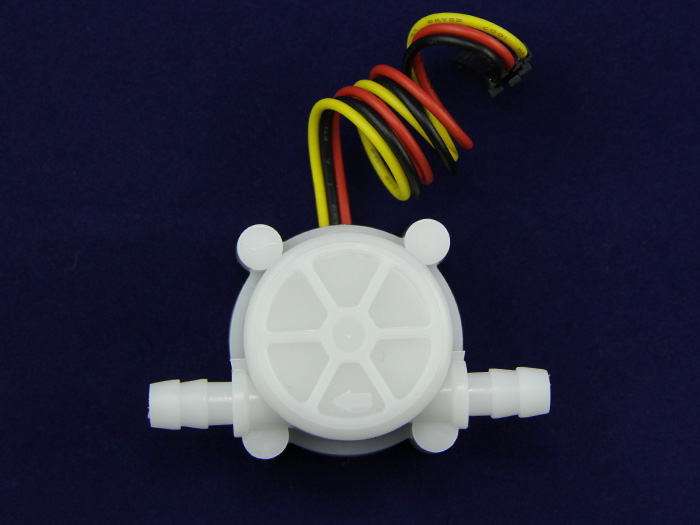

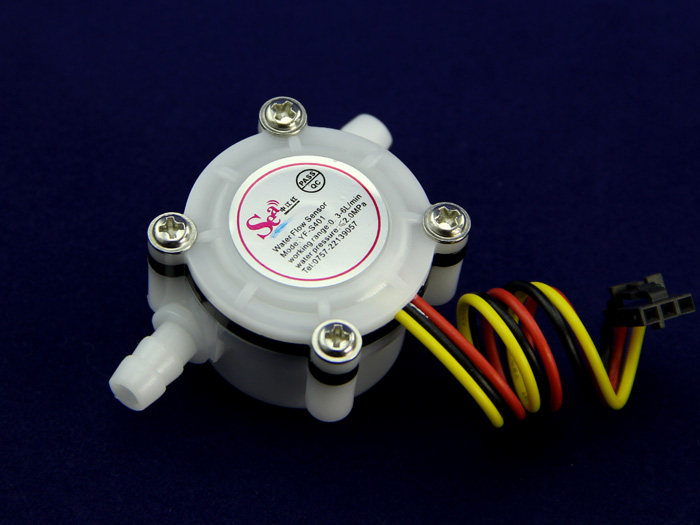

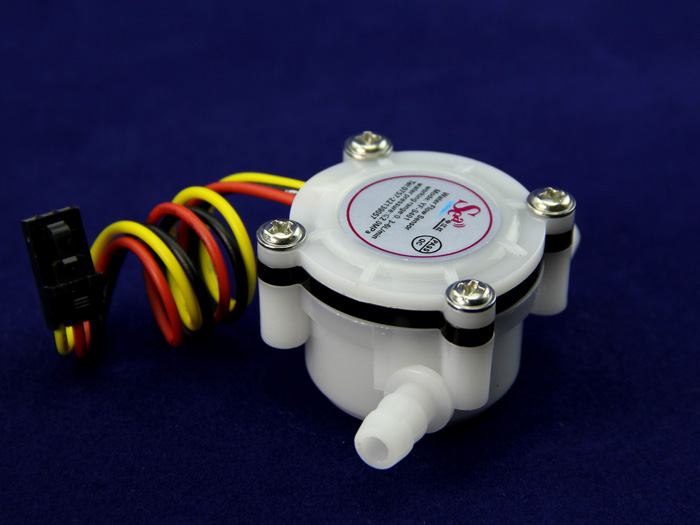

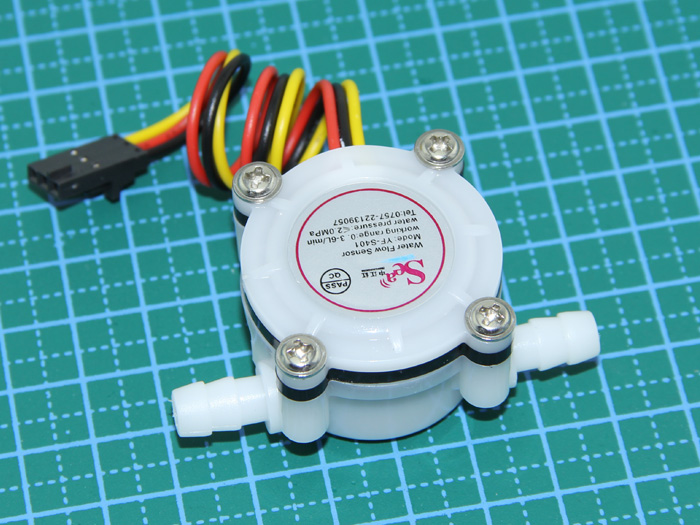

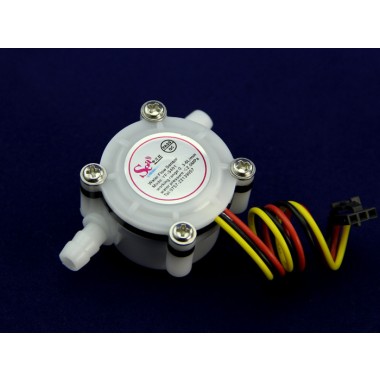

Caudalímetro plástico de 1/8" para agua, basado en efecto Hall

COD: SETEM01072B

Peso: 0.028 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 26582.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Water flow sensor consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This one is suitable to detect flow in water dispenser or coffee machine.

We have a comprehensive line of water flow sensors in different diameters. Check them out to find the one that meets your need most.


Features

  • Compact, Easy to Install
  • High Sealing Performance
  • High Quality Hall Effect Sensor
  • RoHS Compliant


Specifications

  • Mini. Wokring Voltage: DC 4.5V
  • Max. Working Current: 15mA (DC 5V)
  • Working Voltage: DC 5V~24V
  • Flow Rate Range: 0.3~6L/min
  • Load Capacity: ≤10mA (DC 5V)
  • Operating Temperature: ≤80°C
  • Liquid Temperature: ≤80°C
  • Operating Humidity: 35% - 90%RH
  • Water Pressure: ≤2.0MPa
  • Storage Temperature: -25 - + 80°C
  • Storage Humidity: 25% - 95%RH
  • ~4420 pulses/L
