7 Segment Display - 8 Inches - Red
Display para armar de 7 segmentos de altura 8" de color rojo. Incluye el punto decimal. Cada uno de los segmentos debe montarse sobre un circuito impreso (no incluido) para conformar el dígito.
COD: SETEM0514EB
Peso: 0.149 Kg
Disponibilidad: Sin Stock
ARS 29762.00
El producto no está disponible para la venta en este momento
Características

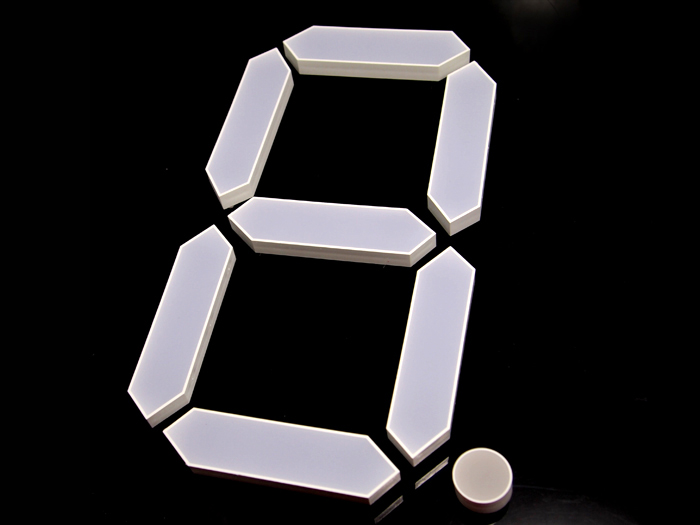

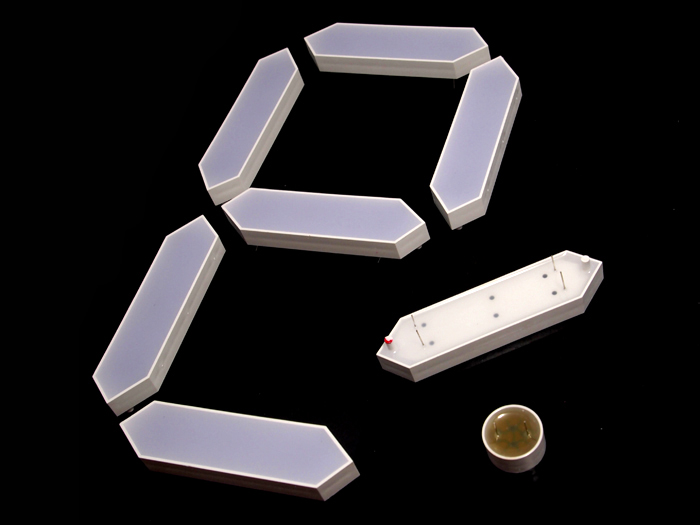

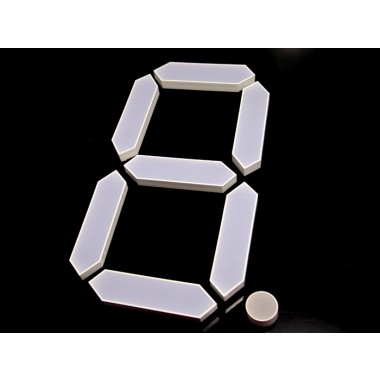

Find segments in digital displays an interesting material to create art work with? Then look no further than our seven-segment digital building blocks. They allow you to design words, numbers, or unique patterns. One unit of this product includes 3 horizontal segments and 4 vertical segments, enough to build the number “8” or whatever else you think of. Order more if you want to make a larger pattern.
Features
- Easy to assemble
- RoHS compliant
- ESD 2000 V
- Free style display
Specification
- Diameter : 20 mm
- Power Dissipation Per Segment: 45 mW
- Reverse Voltage Per Segment: 5 V
- Forward Voltage Per Segment: 10.8 V (I = 20 mA)
- Continuous Forward Current Per Segment: 25 mA
- Peak Forward Current Per Segment: 80 mA
- Operating Temperature Range: -20 °C – 80 °C
Datasheet (507 Kb)
