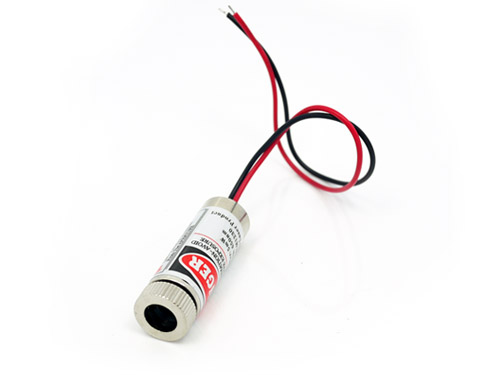

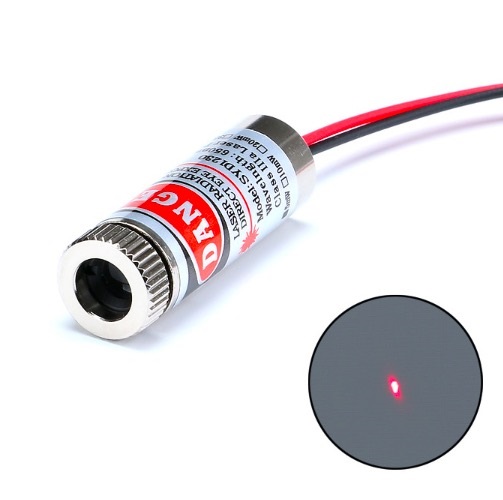

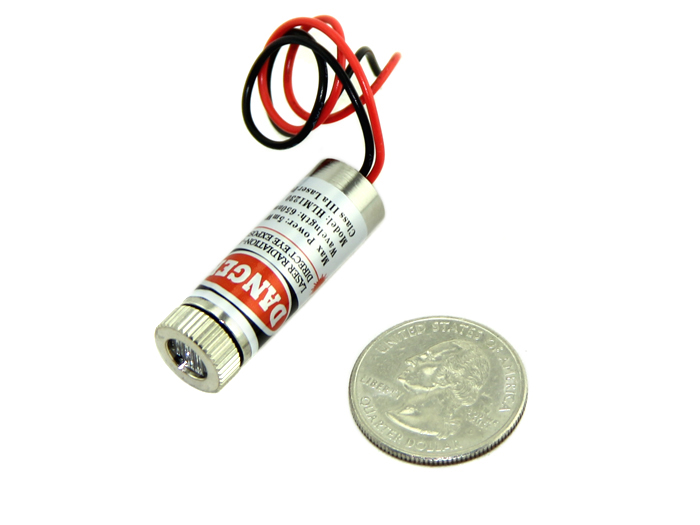

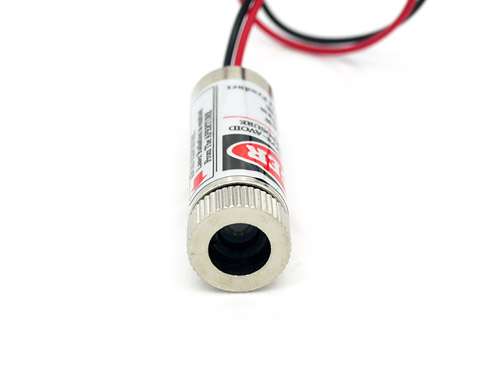

5mW Laser Module emitter - Red Point
Módulo emisor láser rojo de 5mW con puntero en forma de punto
COD: SEIRL104A2B
Peso: 0.014 Kg
Disponibilidad: Sin Stock
ARS 6002.00
El producto no está disponible para la venta en este momento
Características
Specifications
- Output Power: Min 2.5mW, Typical 3.0mW, Max 5.0mW
- Working current: Min 10mA, Typical 20mA, Max 25mA
- Working voltage: Min 2.3VDC, Typical 4.5VDC, Max 8.0VDC
- Wavelength: 650nm
- Working Temperature: Min -15°C, Typical 25°C, Max 35°C
- Storage Temperature: Min -20°C, Max +25°C
- Focused Dot width:
- Outline Dimension: 12mm(Diameter) x 35mm(Length)
- Practical test for point head: reflection visible to random target >1000m
Cautions: Class III, avoid direct eye exposure to beams.
Datasheet (107 Kb)
