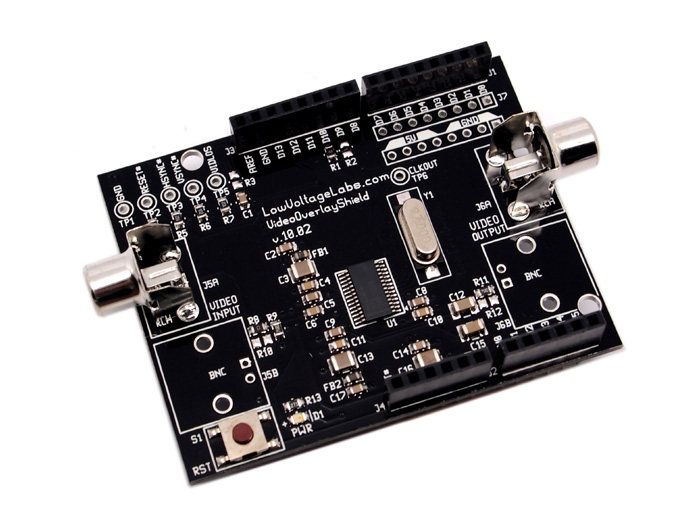

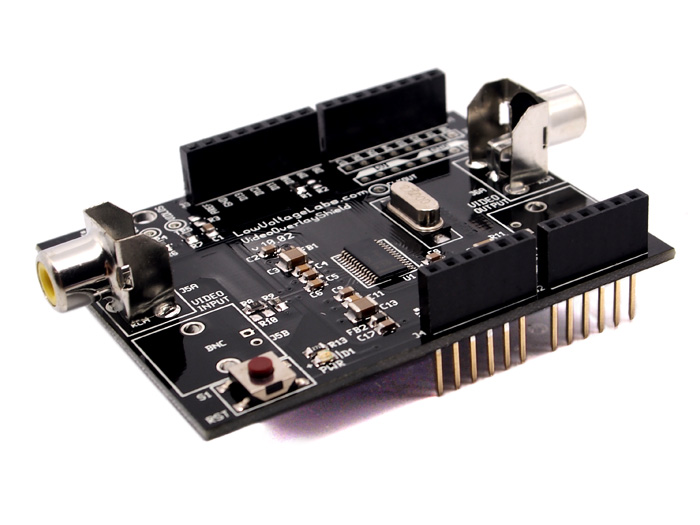

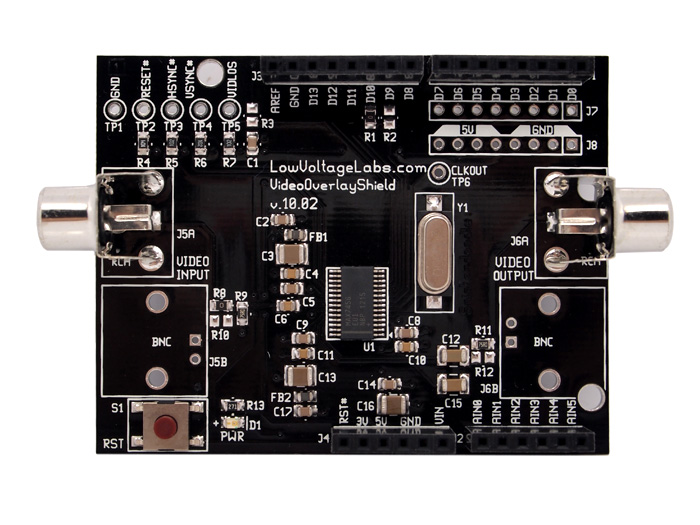

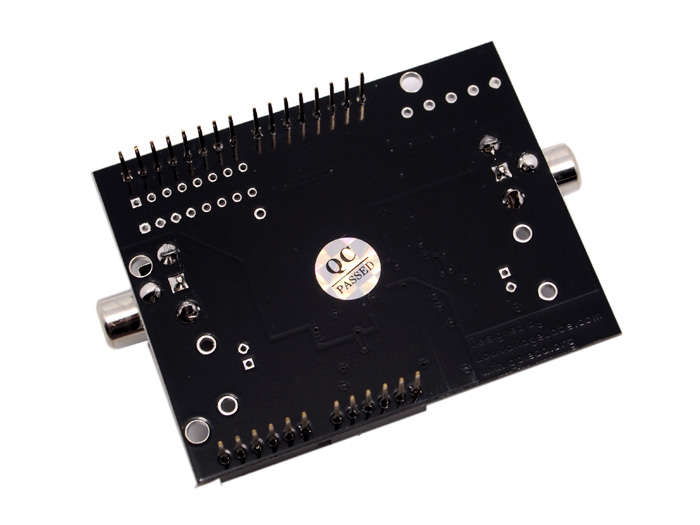

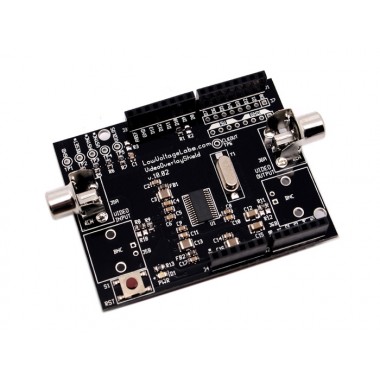

Video Overlay Shield
Shield Arduino para superponer texto sobre video analógico, basado en MAX7456
COD: SESLD07101P
Peso: 0.022 Kg
Disponibilidad: En Stock
ARS 116885.00
El producto no está disponible para la venta en este momento
Características
The Arduino compatible shield board overlays text on analog video, using the Maxim MAX7456 on-screen display chip. This board allows easy overlay of text onto an analog video signal, NTSC or PAL. Connect this board to your favorite Arduino processor board to get started.
Features
- Overlays text on NTSC or PAL video
- Generates internal video in NTSC or PAL mode when no input video is connected
- 256 user-defined characters or pictographs in EEPROM
- 12 x 18 pixel character size
- Test points for video loss, video horizontal sync, video vertical sync, and clock output
- Input voltage 5V
- Dimensions: 2.7″x 2.1″

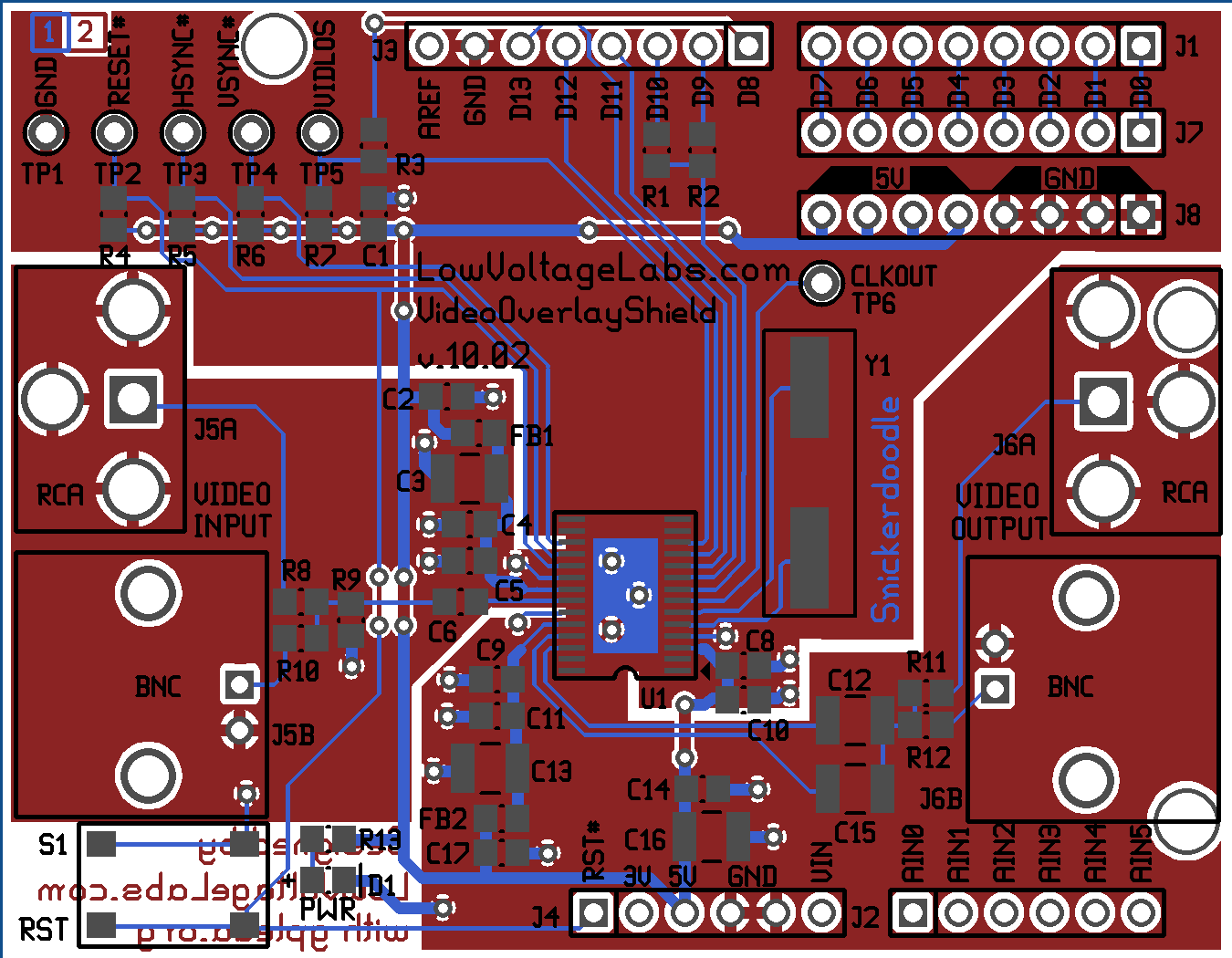

Layout in PNG format (43 Kb)
Schematic in PNG format (79 Kb)
Schematic and layout files in gEDA format (zip file) (69 Kb)
