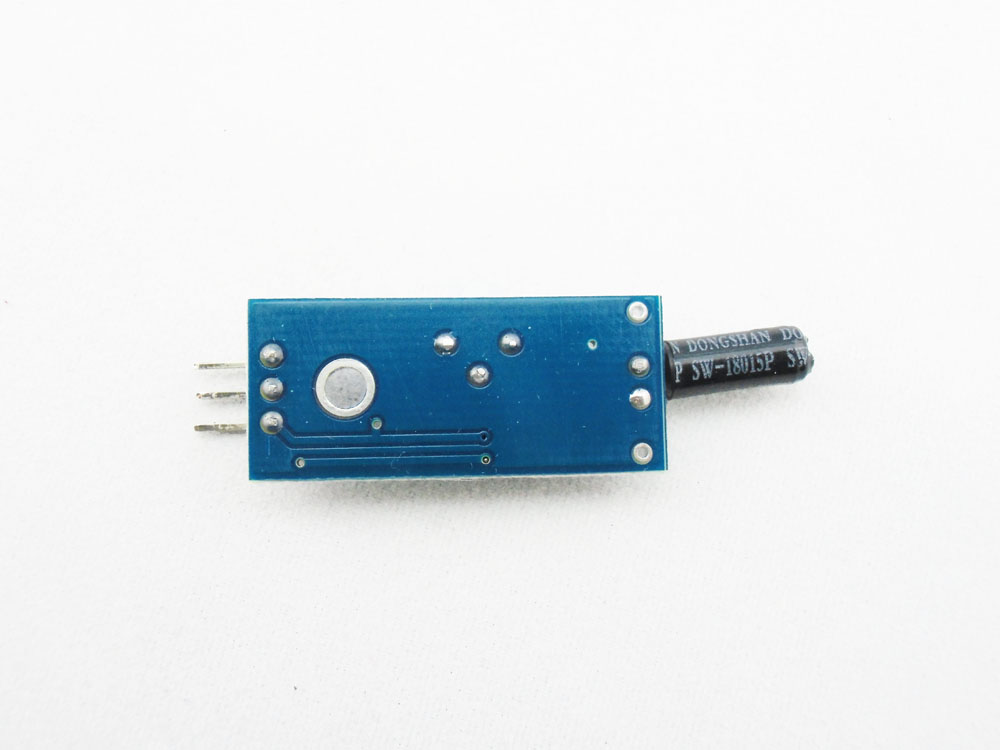

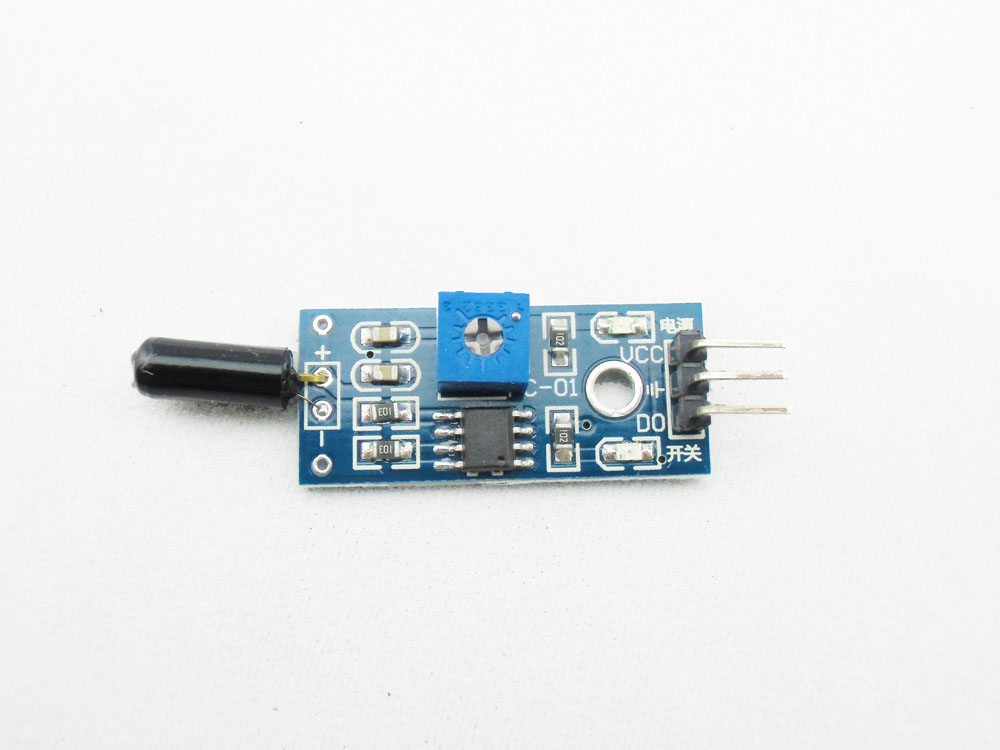

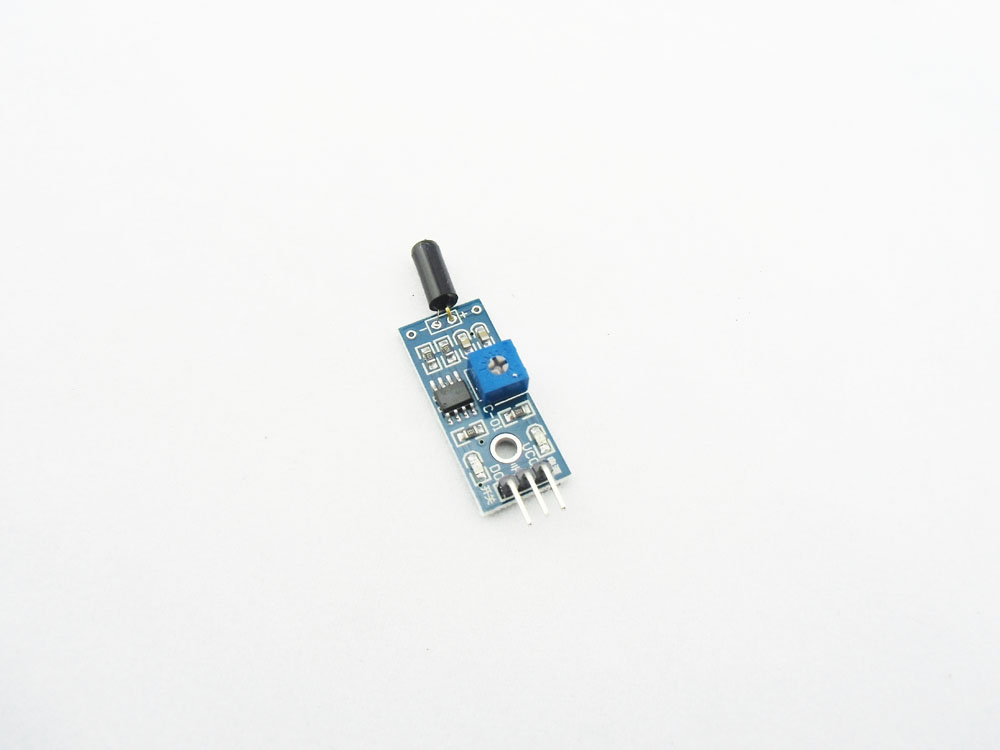

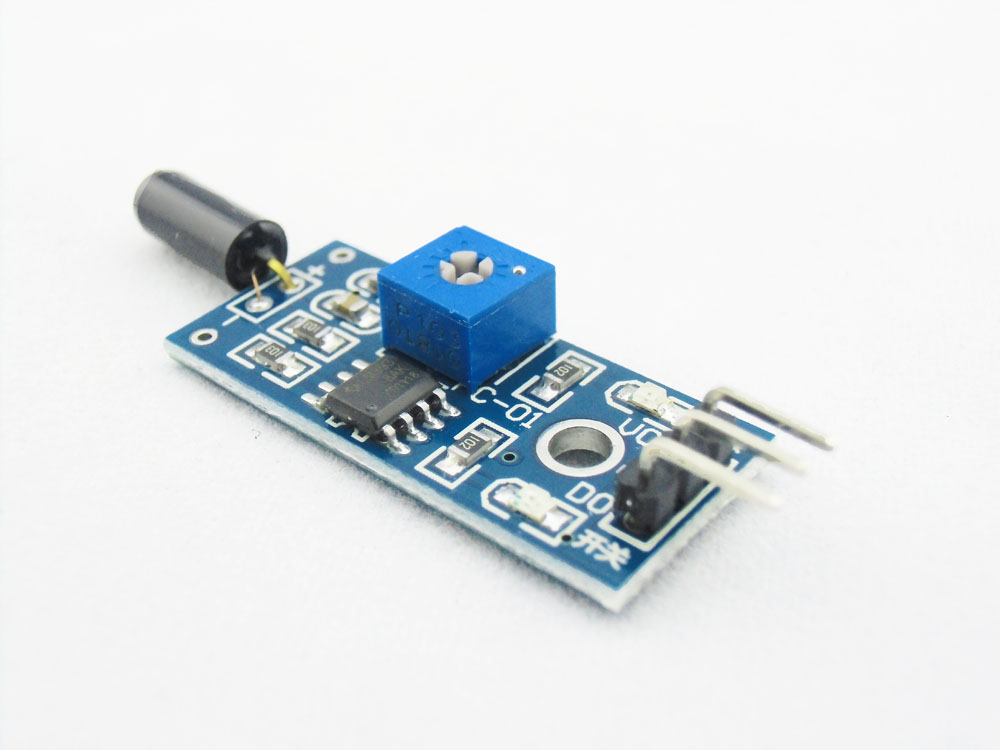

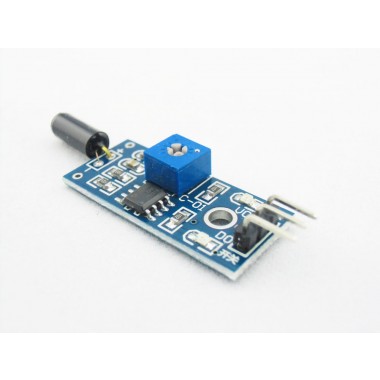

Módulo sensor de vibración - SW-18015P
Sensor para medir flexión, toque, vibración o golpes con salida digital.
COD: ESMS40130S
Peso: 0.050 Kg
Disponibilidad: En Stock
ARS 8605.00
El producto no está disponible para la venta en este momento
Características
Description
This Vibration Sensor use the SW-18015P from MEC to measure the vibration.It can triggerd from any angle, and often used for flex, touch, vibration and shock measurements.
There is an on-board potentiometer to adjust the threshold of vibration.It outputs logic HIGH when this module not triggered while logic Low when triggered.
Application Idea
- Automobie alarm.
- Movement detection.
- Vibration detecting Applications
Features
- The default state of the switch is open
- Digital output
- Supply voltage:3.3V-5V
- On-board indicator LED to show the results
- On-board LM393 chip

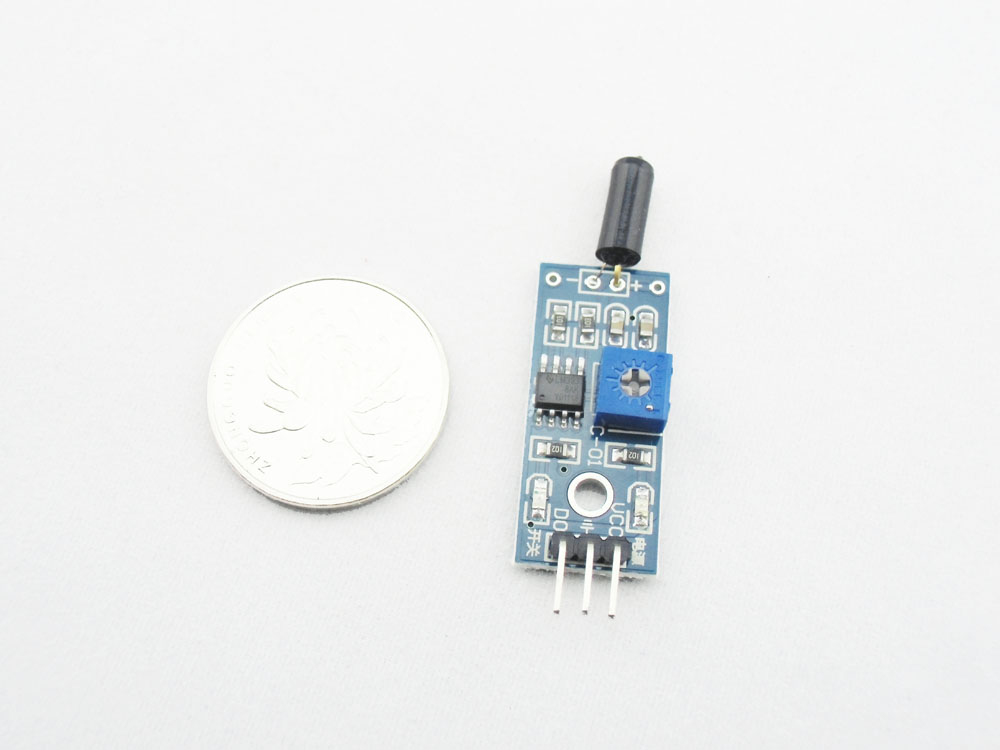

- Dimension: 3.2cm x 1.4cm

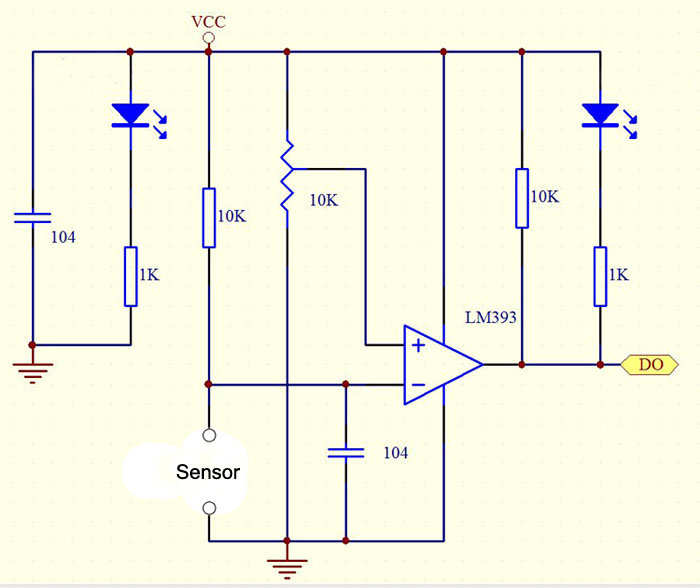

Schematic (59 Kb)

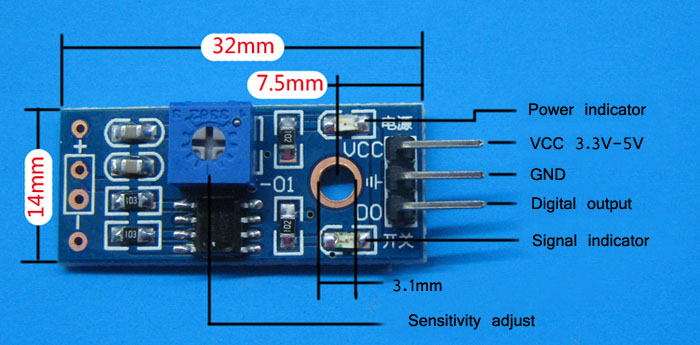

Pinout (72 Kb)
Datasheet (96 Kb)

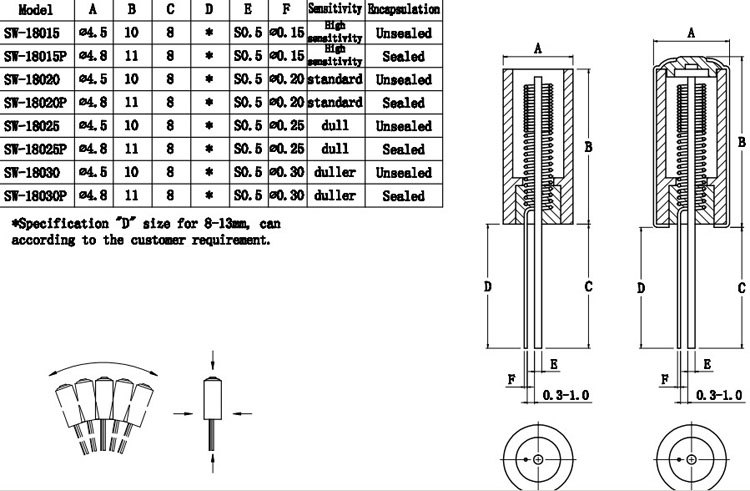

SW-18015P Datasheet (26 Kb)
