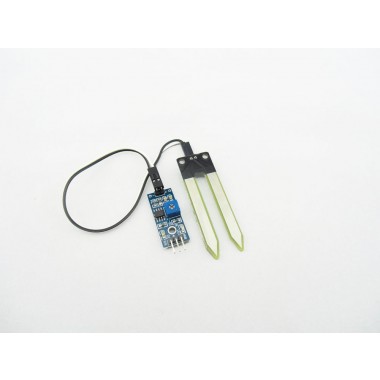

Soil Moisture Sensor Module
Módulo sensor de humedad de suelo con salida digital de umbral ajustable, ideal para riego automático.
COD: ESPM30421S
Peso: 0.025 Kg
Disponibilidad: En Stock
ARS 4115.00
El producto no está disponible para la venta en este momento
Características
Description

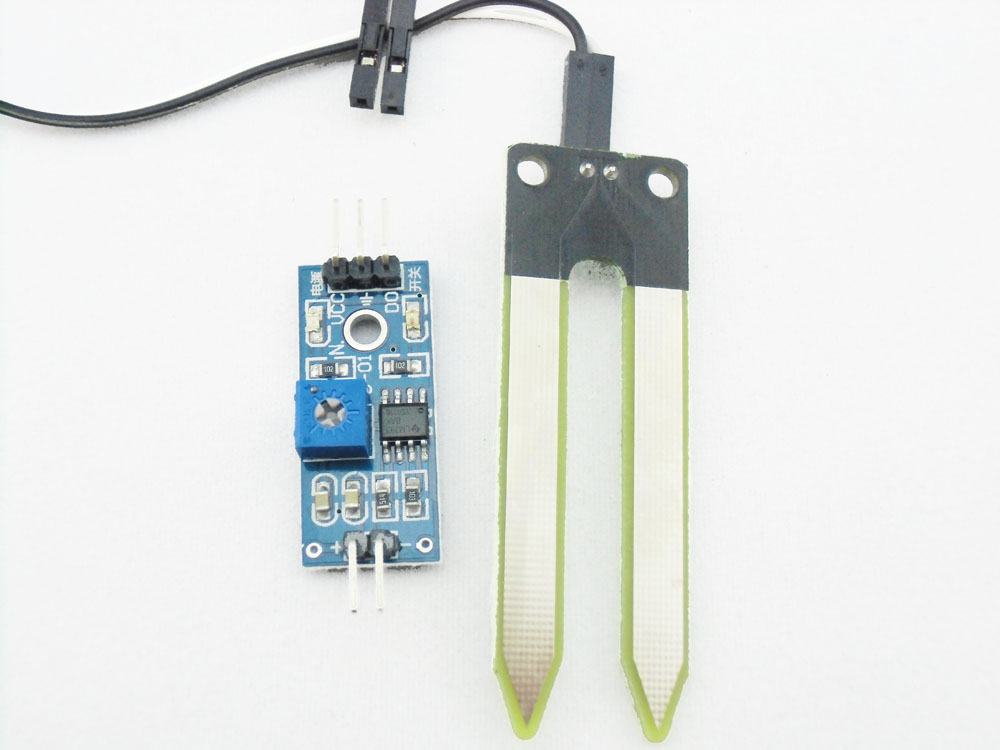

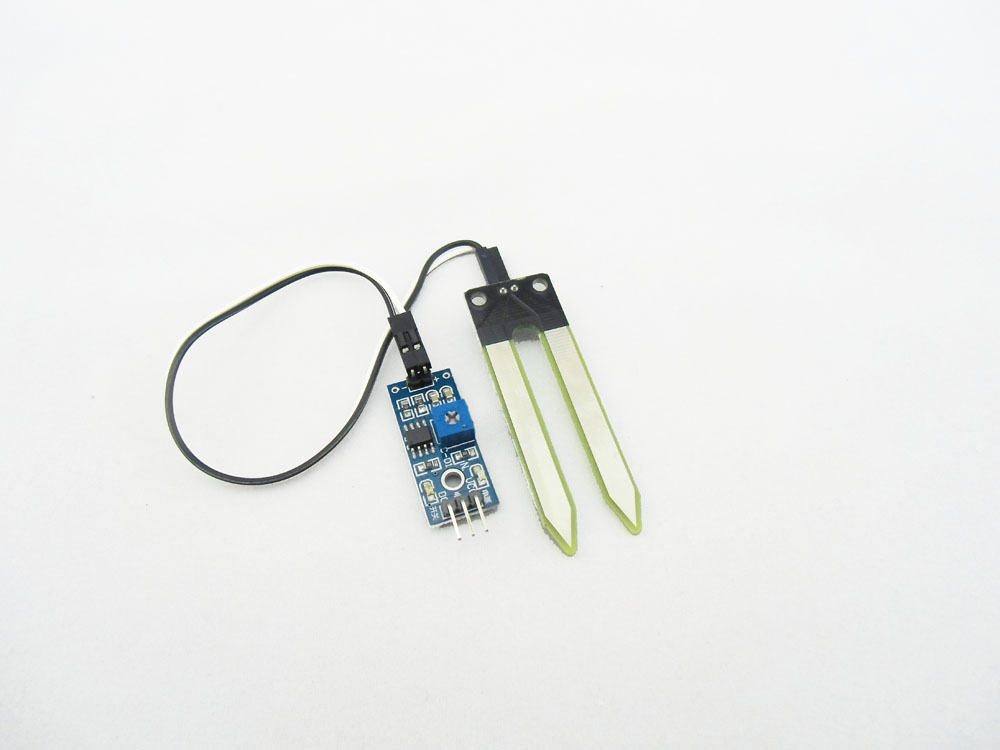

This Soil Moisture Sensor can be used to detect the moisture of soil or judge if there is water around the sensor, let the plants in your garden reach out for human help. Insert this module into the soil and then adjust the on-board potentiometer to adjust the sensitivity. The sensor would outputs logic HIGH/LOW when the moisture is higher/lower than the threshold set by the potentiometer. With help of this sensor, it will be realizable to make the plant remind you: "Hey, I am thirsty now, please give me some water!".
Application Idea
- Botanical gardening
- Water monitering
Features
- Digital output, easy to adjust
- Nickel plating to avoid corrosion
- Working voltage: 3.3V-5V

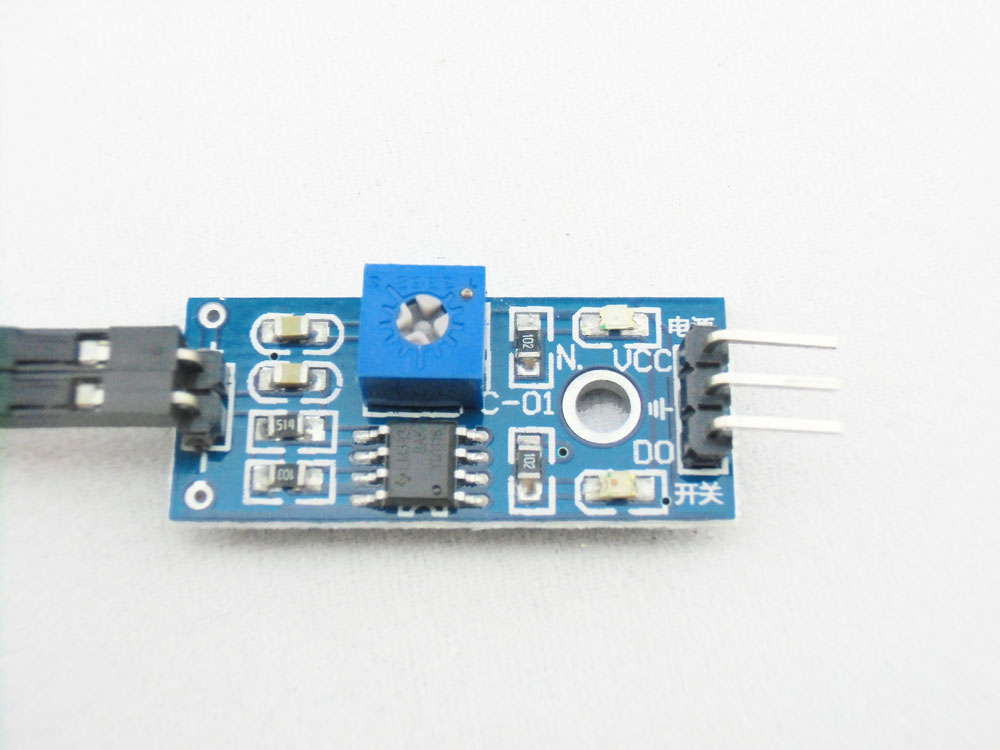

- On-board LM393 chip

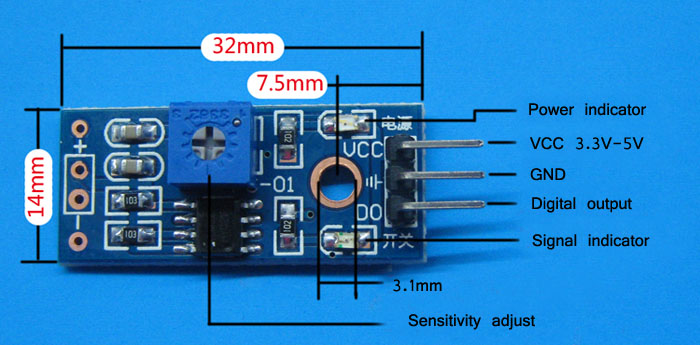

- Dimension of the board: 3.2cm * 1.4cm
Galería de Imágenes
Archivos

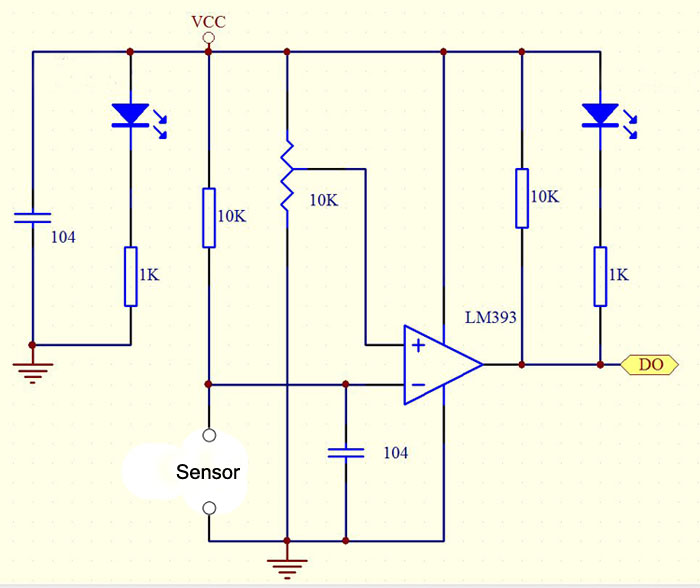

Schematic (59 Kb)Comentarios
Escribir Comentariovaibhav (20/05/2014 - 02:49)
thank you for so much detailing of this kit. I have one of it with me, but it also includes analog output pin about which no information is given here? sensor has FC28 number only on it with same looks. would you please mention about this pin too ?
