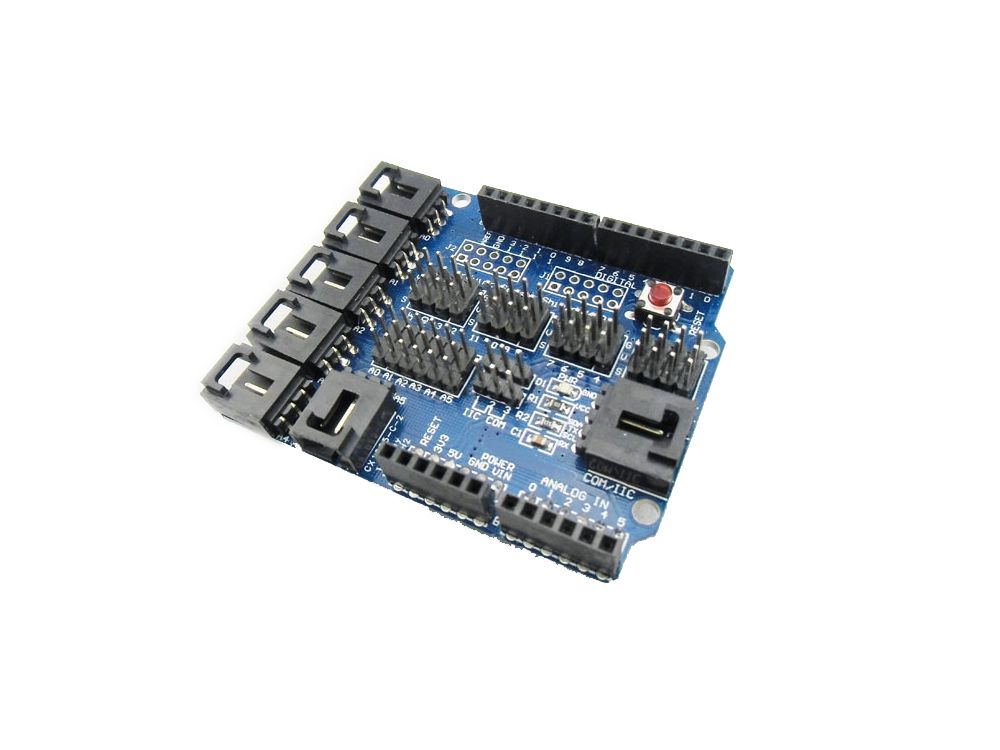

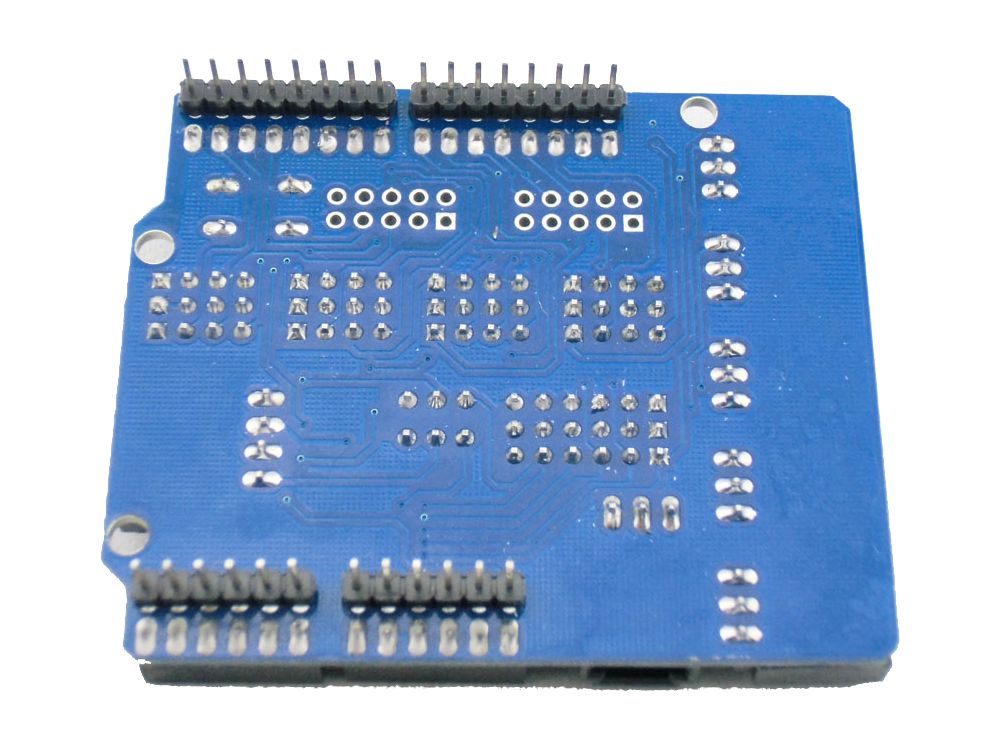

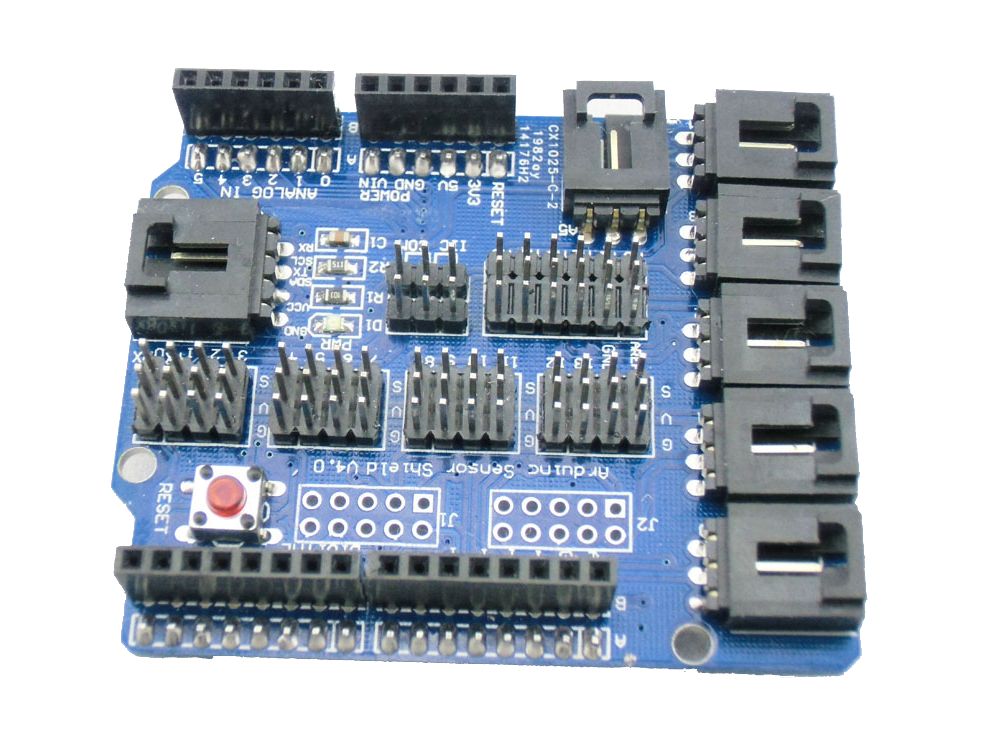

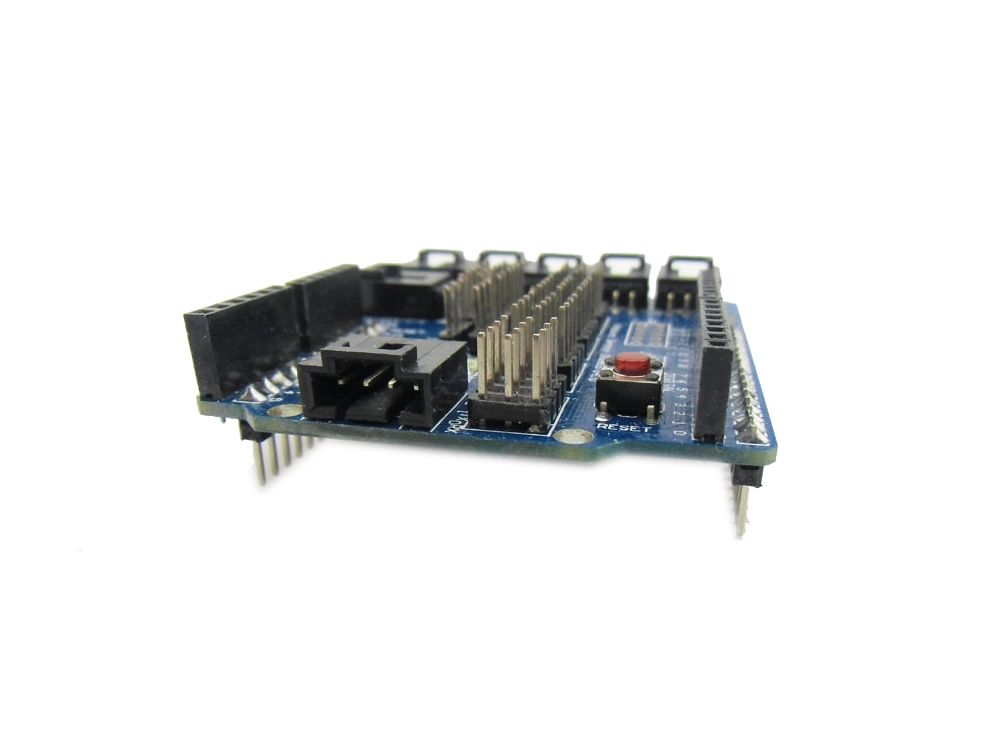

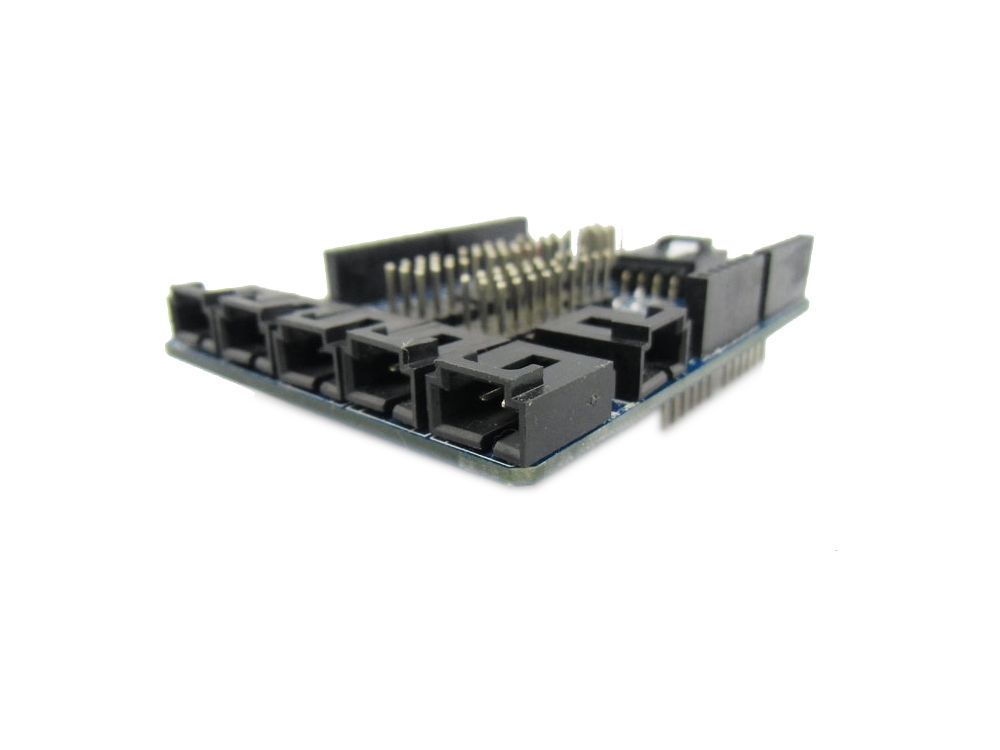

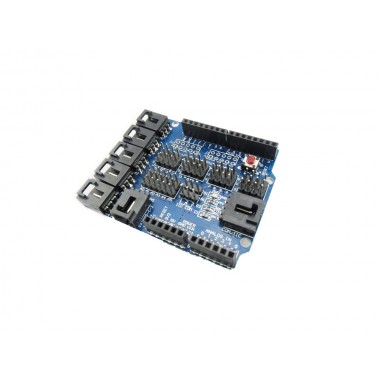

Sensor Shield V4.0 For Arduino

Sensor Shield V4.0 For Arduino

Shield de Arduino con conectores de uso general, ideal para conectar múltiples sensores o servos.

COD: EMCS01002S

Peso: 0.032 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 22744.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Arduino Sensor Shield V4.0 let us to build electronics projects just as easy as piling bricks. It can connect to various modules like sensors, servos, relays, buttons, potentiometers. Just plug & play.

Each functional module has buckled port with VCC, GND and Output, which has corresponding port on the Sensor Shield, connected with a plain 2.54mm dual-female cable you may start playing already.

Buckled brick cables are like cement for bricks, make the connections easier, secure and more professional looking.

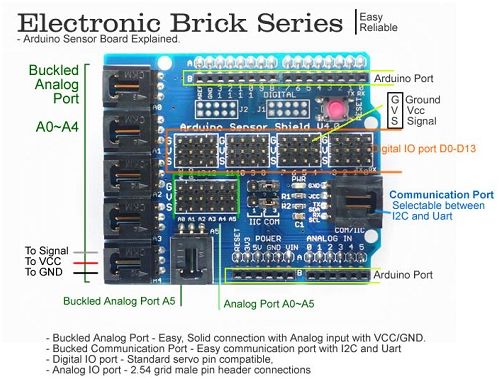

Features

  • Standard Shield designed, compatible with arduino and arduino compatible microcontroller boards
  • Analog/Digital inputs with VCC/GND
  • Digital IO port 13 ports prepared to digital modules or servos
  • Analog IO Port 6 ports prepared to analog sensor input
  • Buckled Communication Port - selectable between I2C and UART

Specification

  • Dimension: 67.9 * 56.8mm
