Bluetooth SMD Module - RN-41
Modulo Bluetooth RN-41, de Roving Networks. Es clase 1 y de mayor alcance que el RN-42.
COD: SFWRL12575
Peso: 0.002 Kg
Disponibilidad: Sin Stock
ARS 62247.00
El producto no está disponible para la venta en este momento
Características
Description: This module from Roving Networks is powerful, small, and very easy to use. This Bluetooth module is designed to replace serial cables. The Bluetoothstack is completely encapsulated. The end user just sees serial characters being transmitted back and forth. Press the 'A' character from a terminal program on your computer and an 'A' will be pushed out the TX pin of the Bluetooth module.

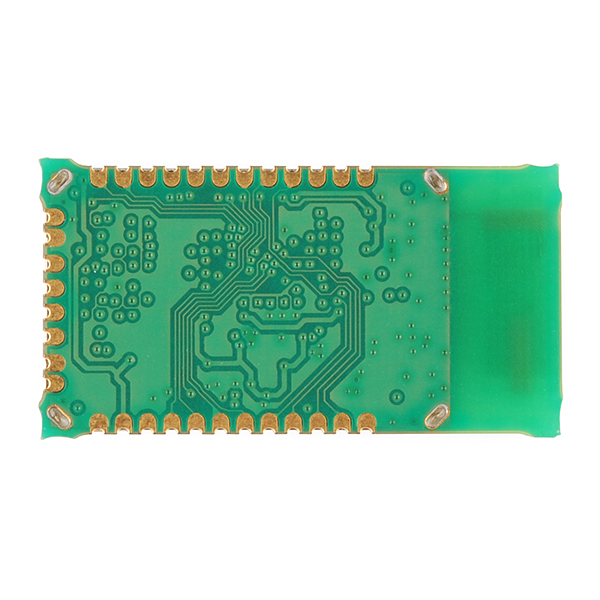

Note: These modules have been revised to remove three unused RF pads from the bottom of the module. For more information on what pads were removed and why, check out the change notes below.
Features:
- Fully qualified Bluetoothmodule
- FCC Certified
- Fully configurable UART
- UART Data rates up to 3Mbps
- Over air data rate of 721kbps to 2.0Mbps
- Low power sleep mode
- Compatible with all Bluetoothproducts that support SPP (almost all do)
- Includes support for BCSP, DUN, LAN, GAP SDP, RFCOMM, and L2CAP protocols
- 3.3V operation
- Status pin
- BluetoothTechnology v2.0 compatible
- Class 1 power output
Product Change Notes (260 Kb)
