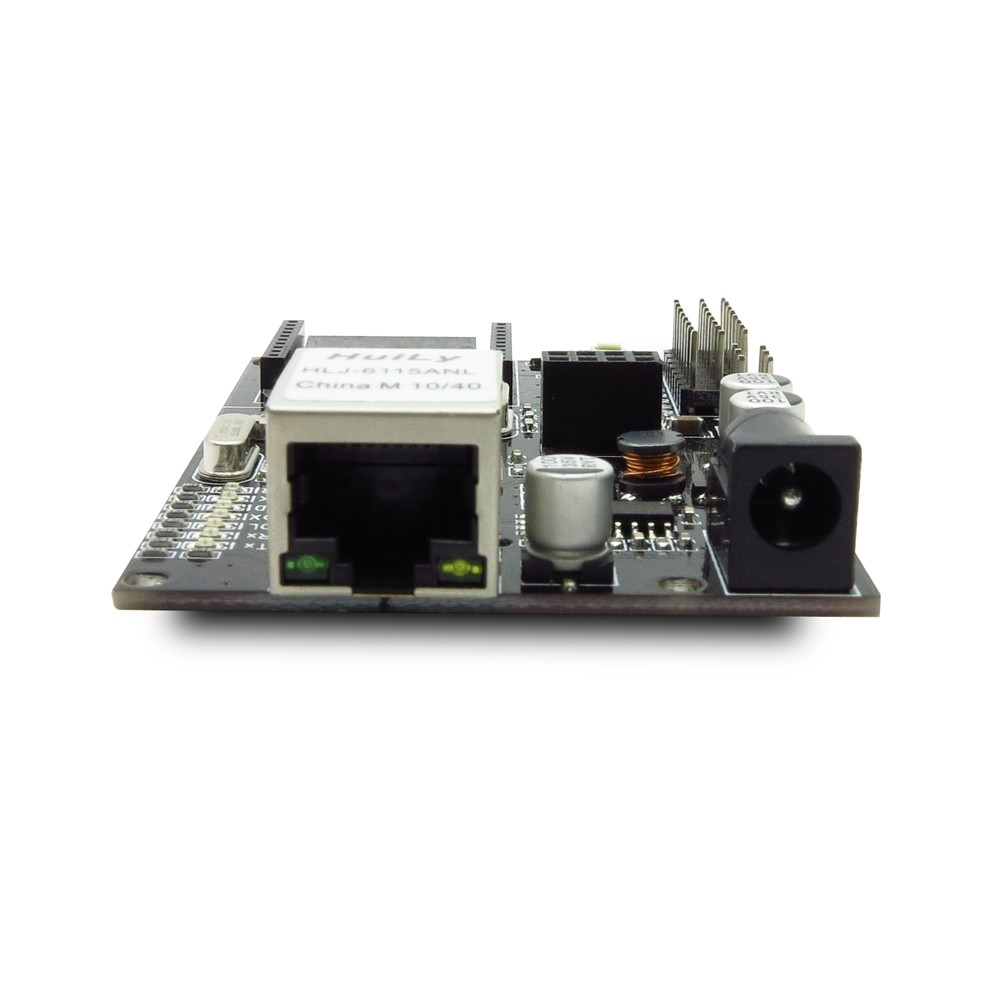

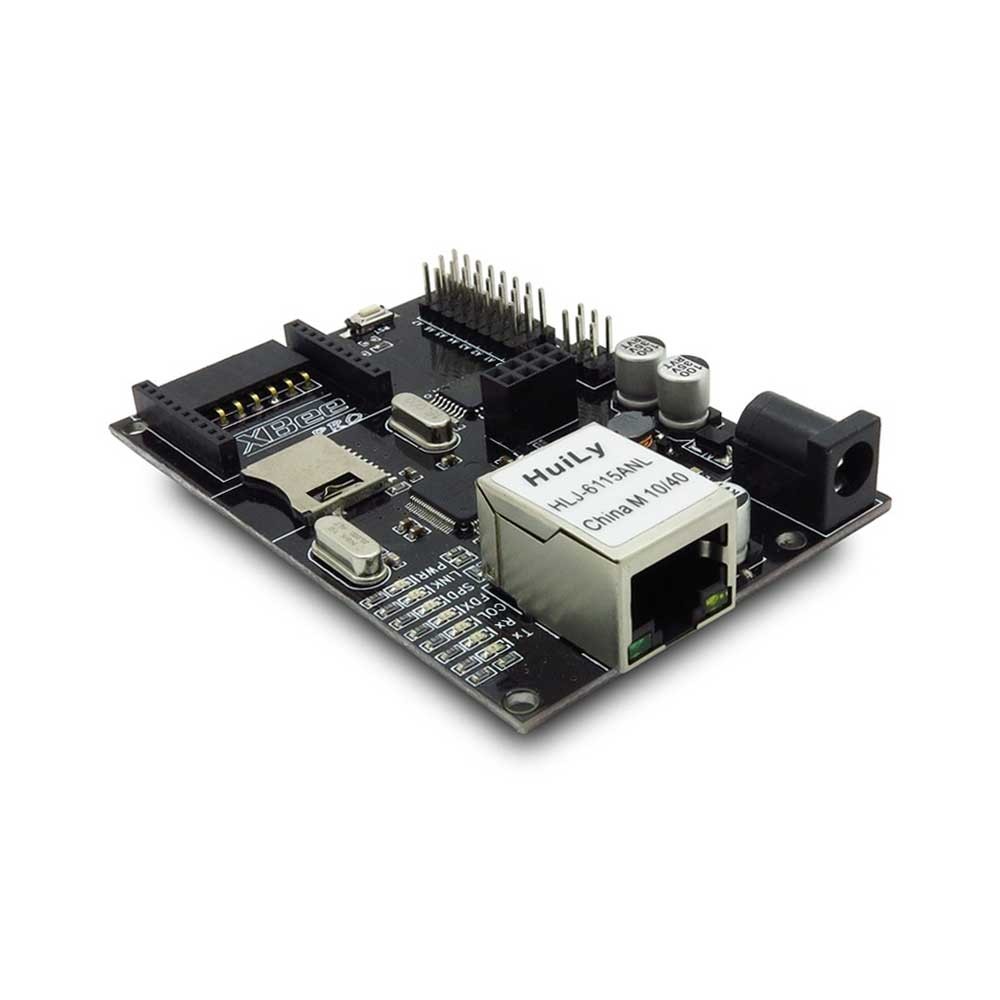

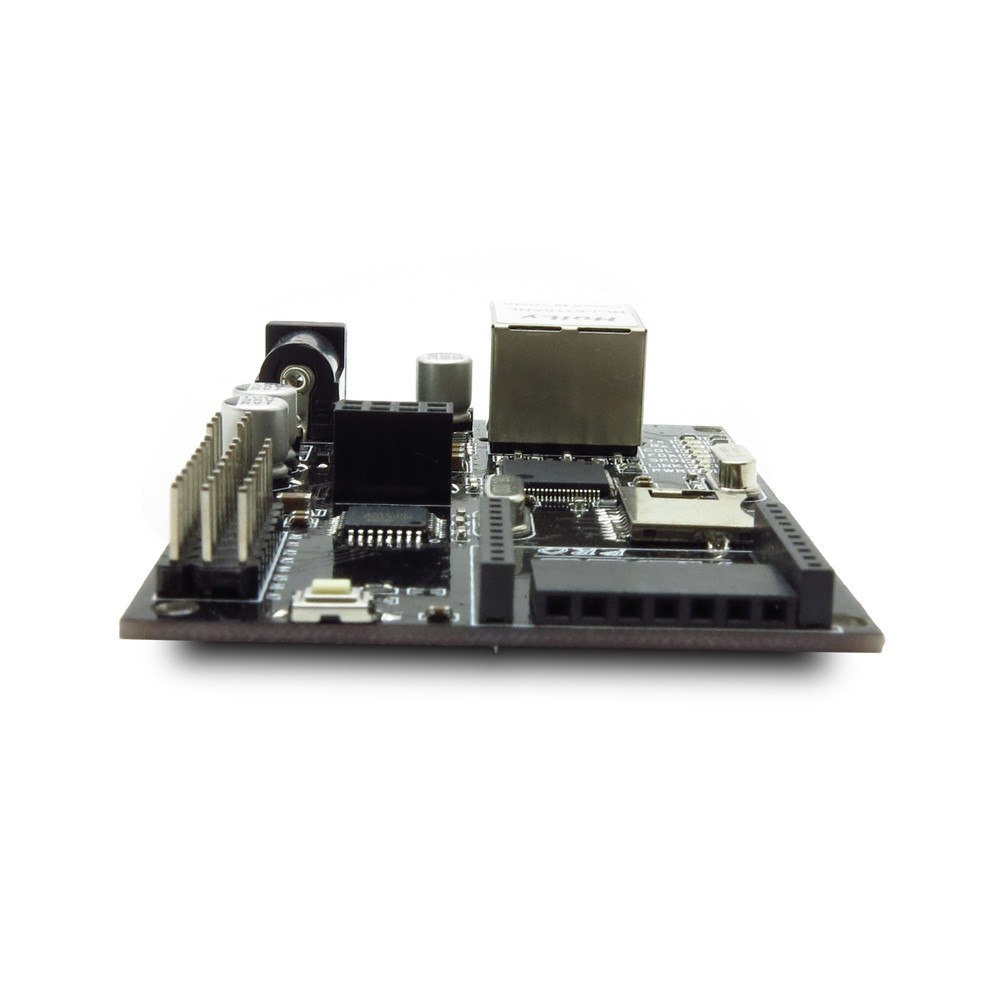

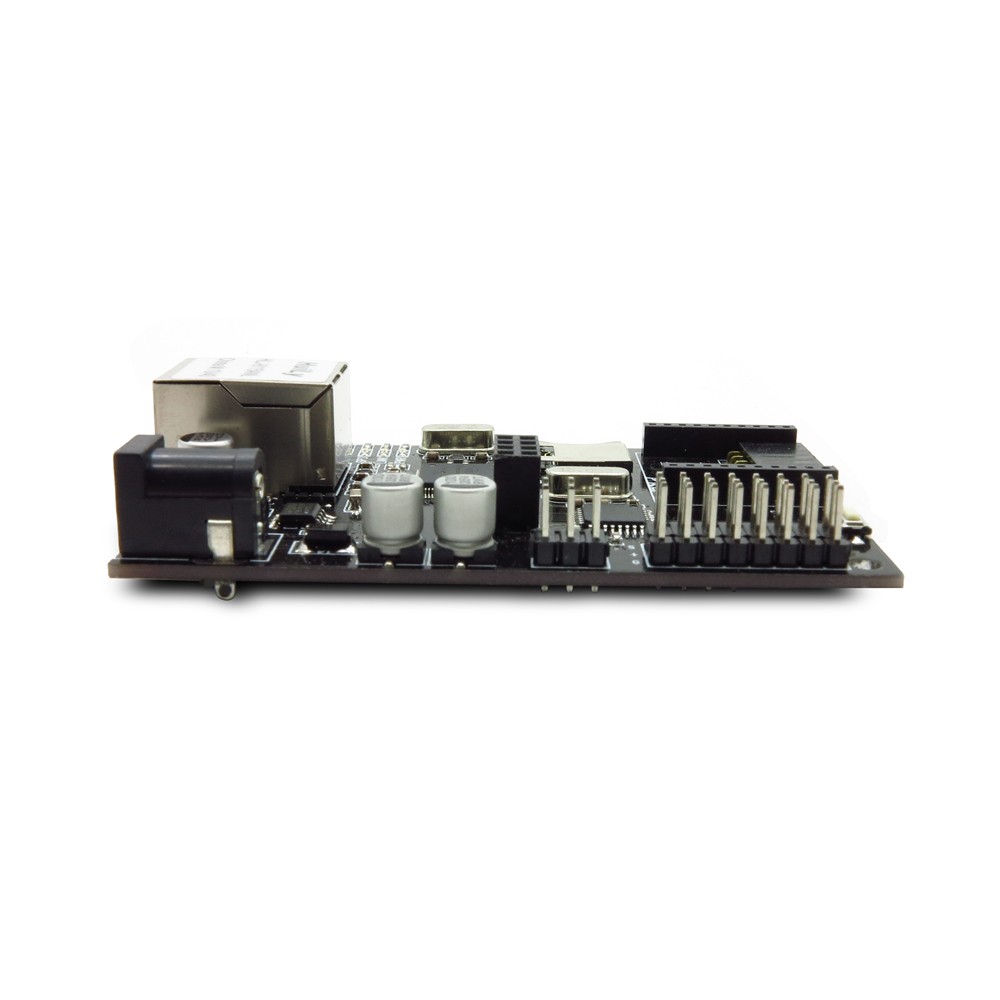

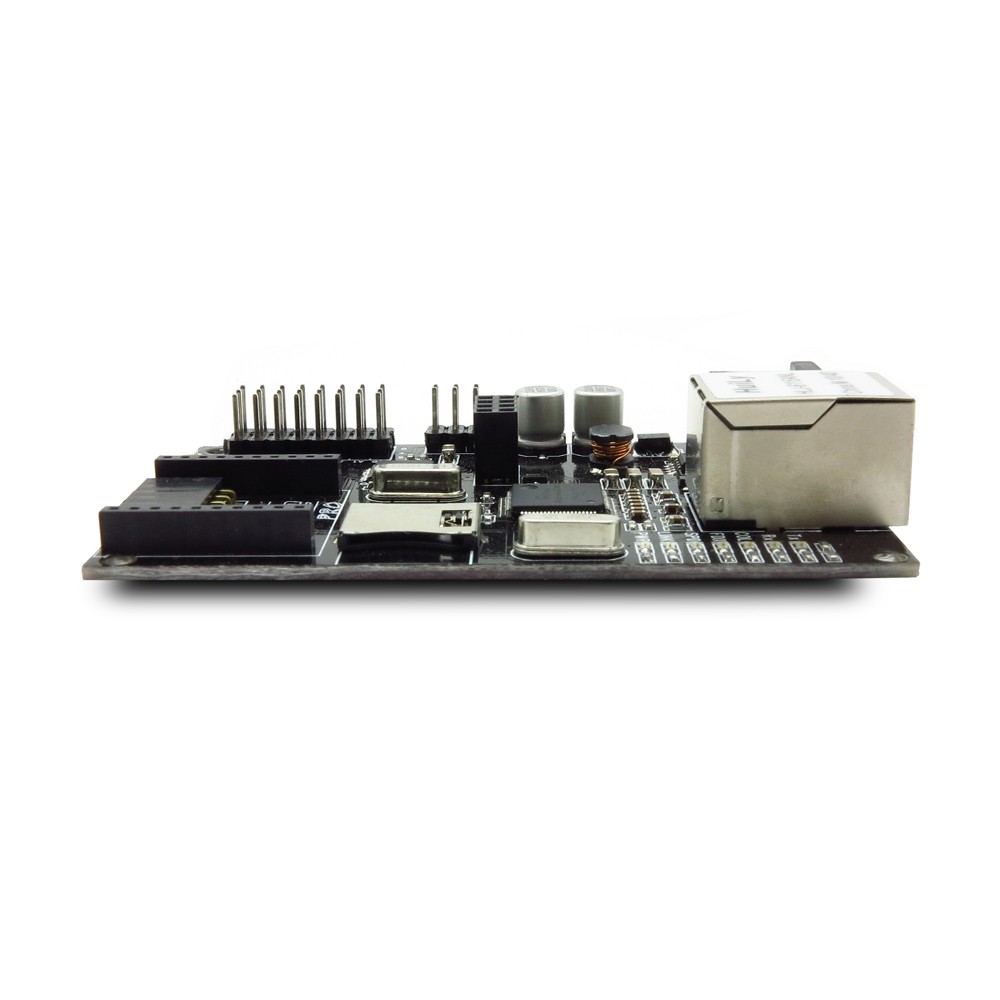

Board compatible Arduino con puerto ethernet WIZnet (c/POE), socket XBee y soporte de módulo de comunicaciones RF nRF24L01+. Incluye socket microSD.

COD: IM120410001

Peso: 0.045 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 55900.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Overview

Iboard is a unique Arduino board which features a WIZnet ethernet port, an XBee socket, nRF24L01+ module interface and an ATMega328. This board will add wireless XBee / nRF24L01+ control as well as internet connectivity to your projects. It’s great for anything from home automation to robot control. The possibilities are endless!

Iboard can be used as an Ethernet, wireless communication project development platform. Iboard support POE (power on Ethernet) power supply, and Micro SD for mass storage. There are some 3pin electronic brick/ sensor brick interface breakout on board, it offer an easy way for a quick prototyping. You can setup a web server through which you may communicate with a remote Arduino using XBee radios, bluetooth or APC modules. This information can be posted to a web site, or to Twitter.

The board requires FTDI basic board to upload sketch. Iboard can be powered by a mini USB , power Jack or POE.

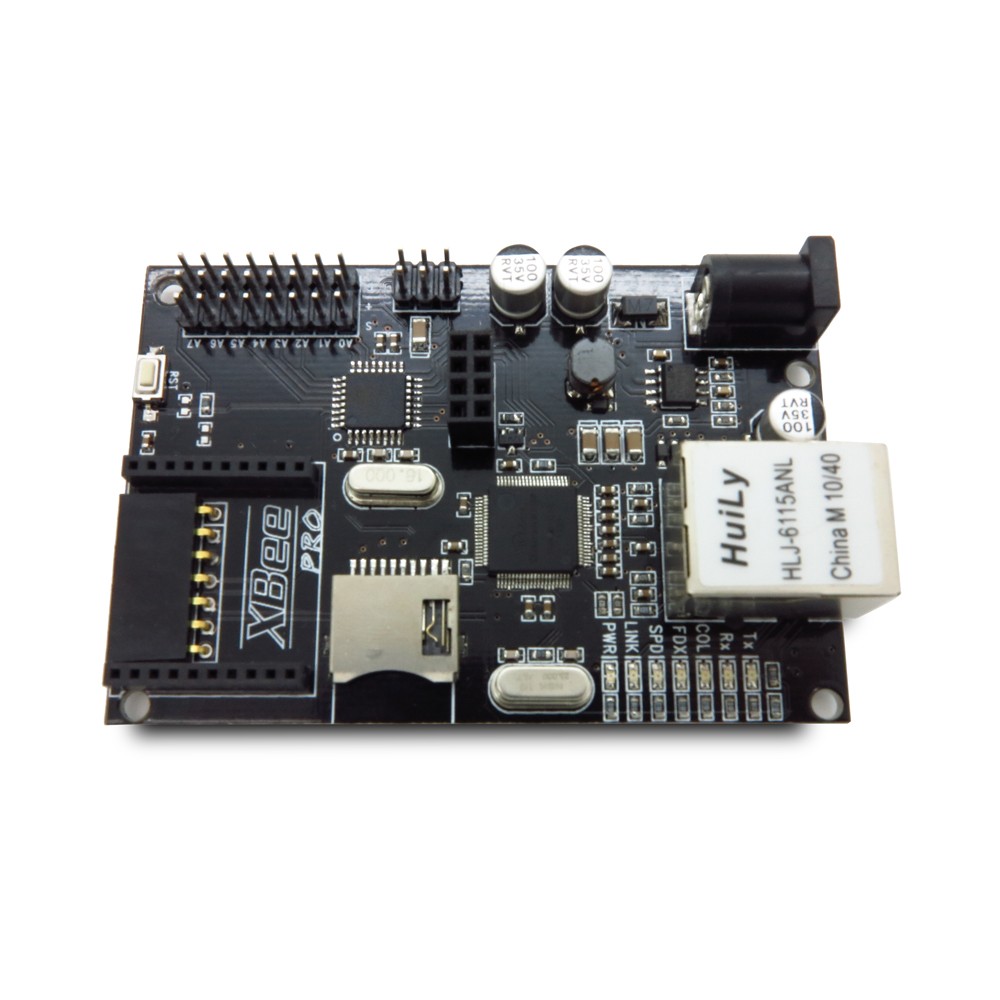

Hardware

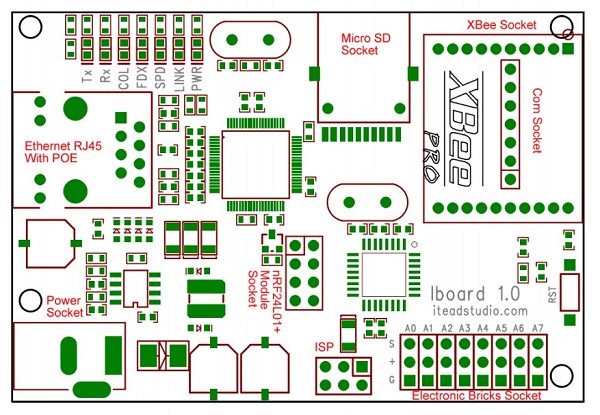

IBoard - Arduino with Ethernet and Wireless development platform

Software

Iboard is designed to be compatible with SD and Wiznet libraries from Arduino ide, and all demo code can be downloaded directly here.

With embedded bootloader, Iboard is easy to use by Arduino IDE through FTDI basic board. ISP of Atmega328 is broken out for download firmware easily.

FORO:

Para subir un programa a esta placa, consultar en nuestro foro:

http://foro.openhacks.com/viewtopic.php?f=18&t=11&p=12#p12



Note

The IBoard does not have a USB con­nec­tion. So you need a USB/Serial adapter - we recommend a FT232RL breakout board.

Specification

Microcontroller ATMega328P
Max Frequency 16MHz
RAM Capacity 2K
FLASH Capacity 32K
External Resources
  • Onboard SD socket
  • Onboard Ethernet
  • Electronic Brick Interface
Power Supply
  • External 12V
  • External 24V
  • External 3.3V
  • External 7V
  • External 9V
  • USB 5V
I/O Operation Level 3.3V
Board Size 80mm x 54mm
Model IM120410001
Version 1.1
Weight 45.00g
Accessories No



Useful Links

Make StripInvaders Cheaper: Use An IBoard

Link: http://neophob.com/2012/06/make-stripinvaders-cheaper-use-an-iboard/

RF24 and RF24Network libraries that support nRF24L01 on iBoard

RF24 Library Link: https://github.com/andykarpov/iBoardRF24

RF24Network Library Link: https://github.com/andykarpov/iBoardRF24Network

A6 & A7 pins

A6 & A7 is pure analog input pins. They respond at analogRead(6) and analogRead(7), and cannot be used as digital pins like the IO pins A0-A7. The ADC6 and ADC7 pins have no other purpose. They are not part of any I/O register.  PORTC doesn't have a BIT 7 and BIT 6 is connected to the Reset pin if the RSTDISBL fuse is set (Reset is disabled).  If the Reset pin is not disabled, writing to that bit will do nothing and reading it will always return 0.

Link: http://arduino.cc/forum/index.php/topic,110400.msg829190.html#msg829190

BTBee Pro Wireless Program Tutorials

Link: http://blog.iteadstudio.com/btbee-pro-wireless-program-tutorials/

Fritzing Parts: ITEAD Development Board

Link: http://blog.iteadstudio.com/fritzing-parts-itead-development-board/
