IO Expansion Shield for Launchpad

IO Expansion Shield for Launchpad

Placa de expansión IO para TI Launchpad para variedad de sensores, módulos wireless o servos.

COD: DFR0257

Peso: 0.100 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 52656.00

Cantidad:

El producto no está disponible para la venta en este momento

Características



Introduction

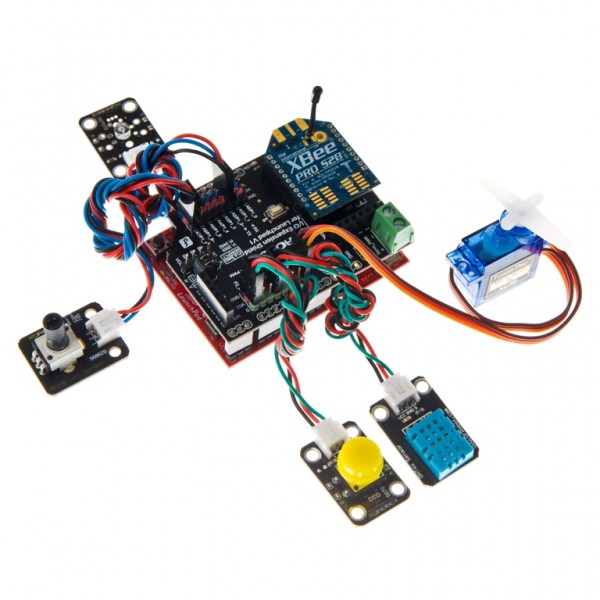

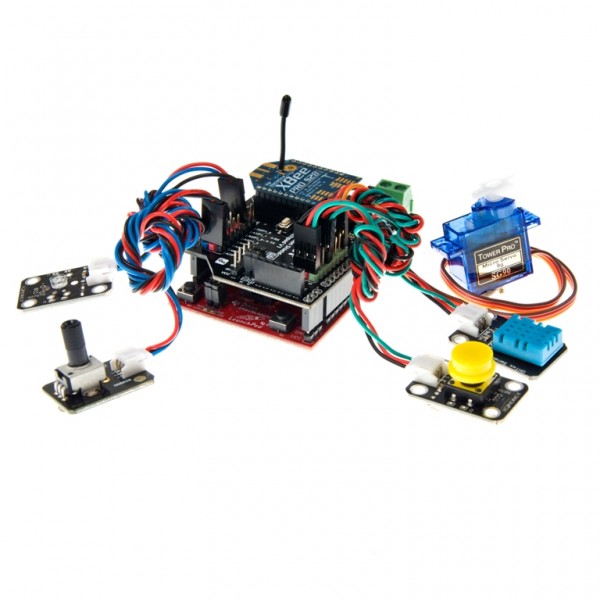

DFRobot proudly presents the I/O expansion shield for Texas Instruments MSP430 LaunchPad. With the I/O expansion shield, your LaunchPad will be able to access more than 100 various sensors, servos and wireless modules from DFRobot.

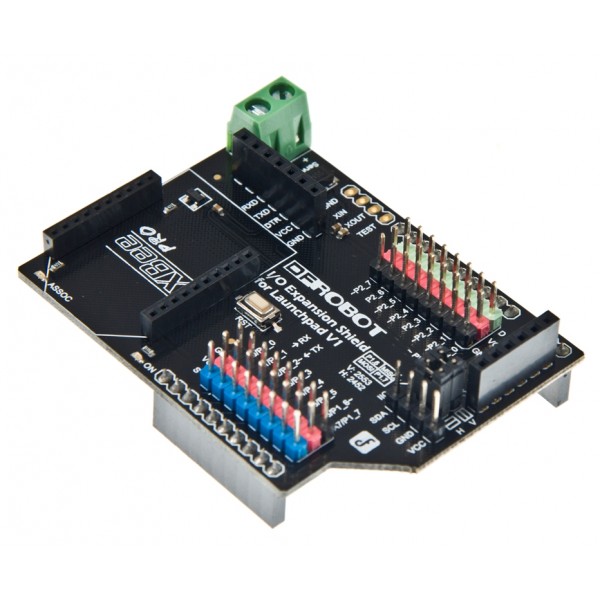

The Xbee & APC220 socket allows you to start immediatly without additional wireless shield.The SPI & I2C interface enables direct plugging of modules and sensors.A well designed corner cut to make room for the test button on LaunchPad.The colorful standard DFRobot 3 Pinout  headers provide additional power for sensors and modules and can be clearly recognized and connected the digital and analog sensors.

Sensor connector :
  • Green-Digital
  • Blue-Analog
  • Red-VCC
  • Black-GND

Specification

  • Support MSP430 LaunchPad
  • Support Xbee/Bluetooth bee
  • Support Bluetooth/APC220
  • Interface:SPI,I2C

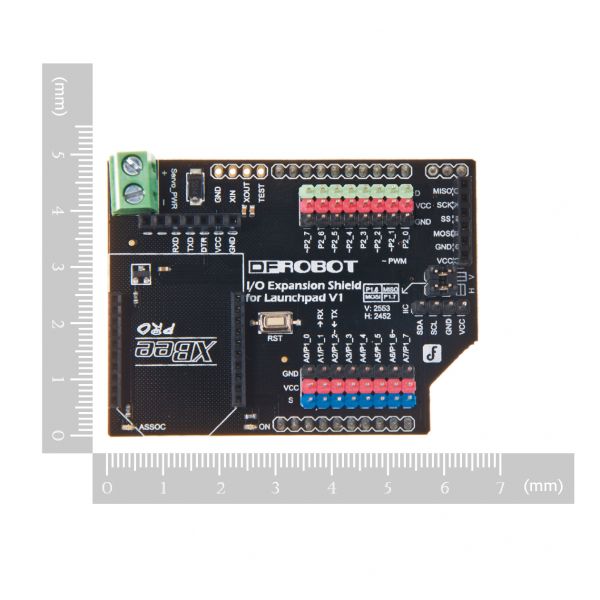

  • Size:66x50mm

Shipping List

  • I/O Expansion Shield for LaunchPad    (1 unit)
