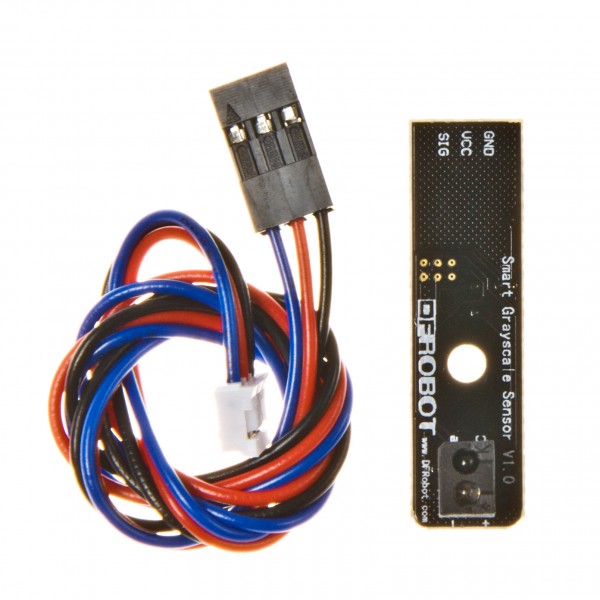

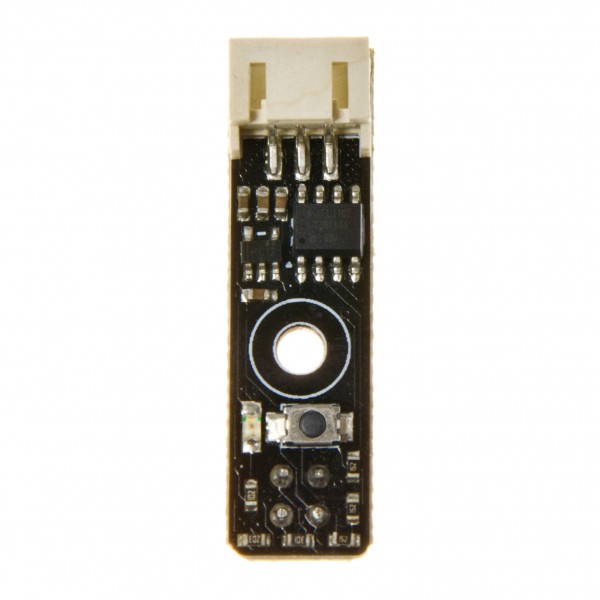

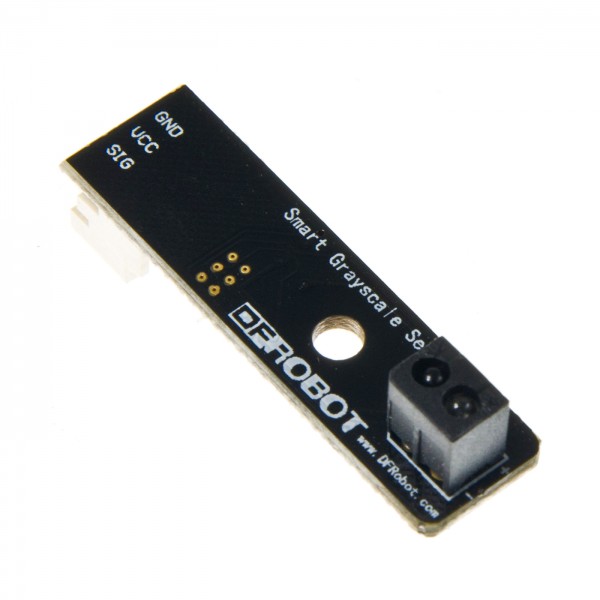

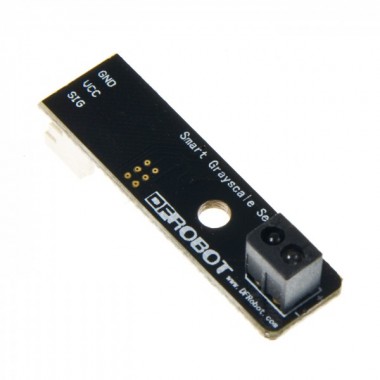

Smart Grayscale Sensor
Sensor de escalas de grises que integra modo de salida digital o analógica.
COD: DFSEN0147
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 23657.00
El producto no está disponible para la venta en este momento
Características
Introduction
This time we reinvented the line-tracking sensor.Beyond recognizing two specific colors or output through digital or analog only, the smart gray sensor has integrated both digital and analog output modes.
In digital mode, users can have two color data recorded through simple button operation, to achieve two-color detections with high and low outputs, and requires no more configuration after being setted.In analog mode, the output value reacts precisely to the color grayscale detected.

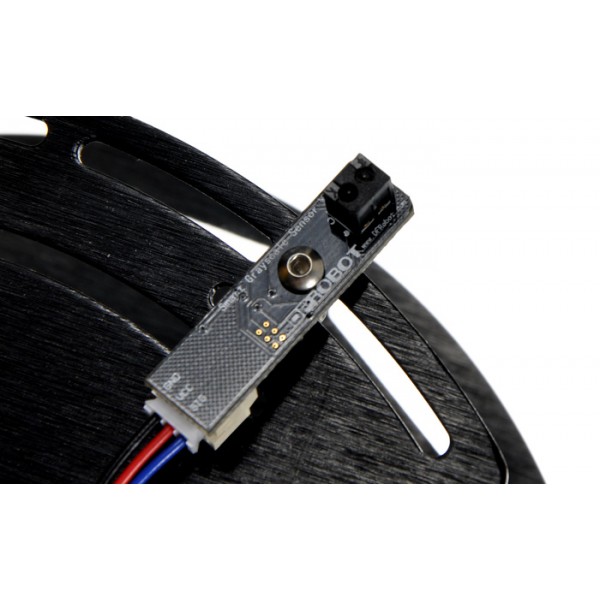

Apart from being a stable and adaptative sensor in various environments, the smart grayscale sensor also demonstrates great potential in low-cost projects of color,grayscale and adjacence lights.
Specifications
- Supply voltage: 5v
- Interface Mode: Digital / Analog
- Output:
- analog mode :0-5v output
- digital mode: TTL level output (0v or 5v) according to application needs
- Digital switching signal feedback and dual analog gradation feedback
- You can set the digital mode supports color detection

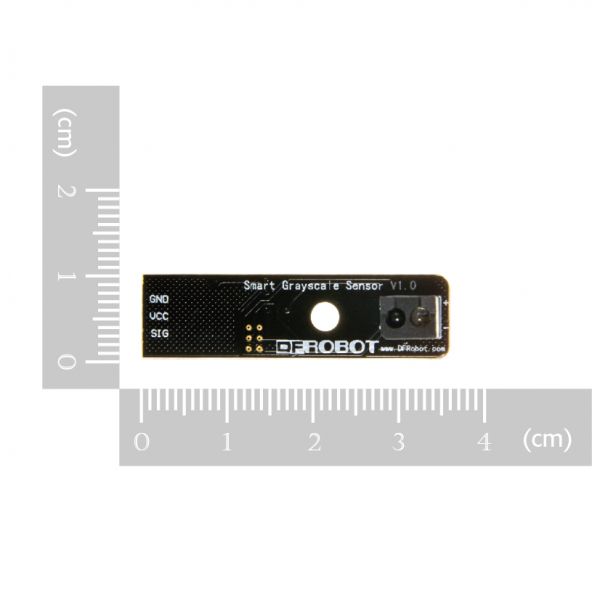

- Dimensions: 37x10x15mm
Shipping List
- Smart Grayscale Sensor v1.0 (1 unit)
Sample Code (0 Kb)
Schematic (84 Kb)
