UDB5 - PIC UAV Development Board
LIQUIDACION HASTA AGOTAR STOCK. Board para control de UAVs basada en micro dsPIC33FJ256. Incluye giróscopos y acelerómetros de 3 ejes.
COD: SFGPS11703
Peso: 0.012 Kg
Disponibilidad: En Stock
ARS 27728.00
El producto no está disponible para la venta en este momento
Características

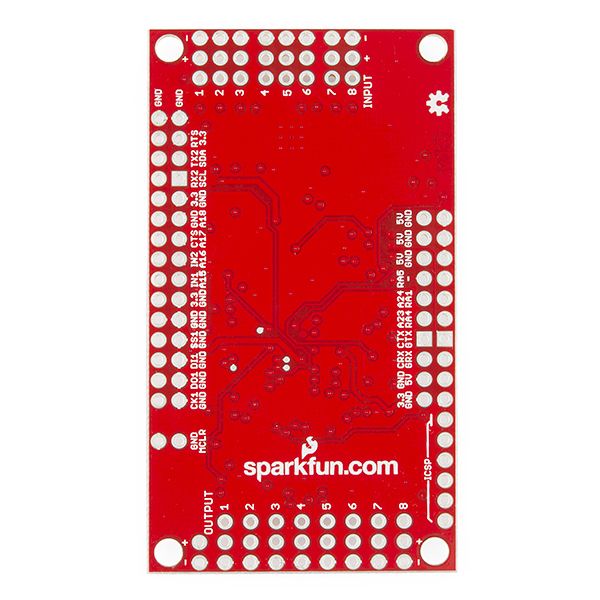

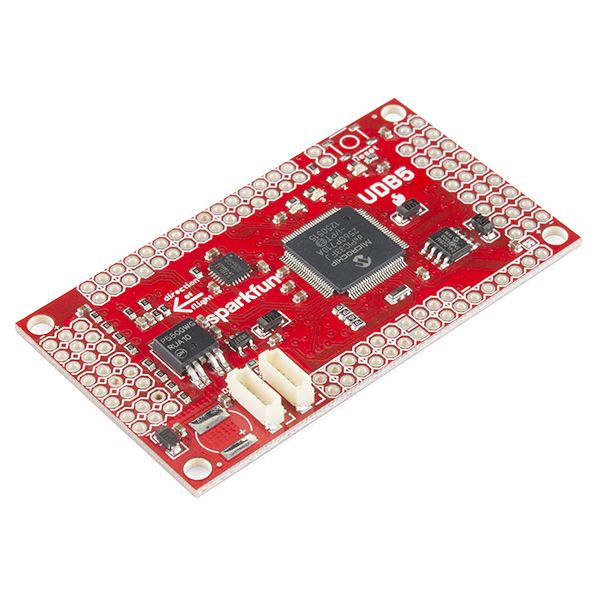

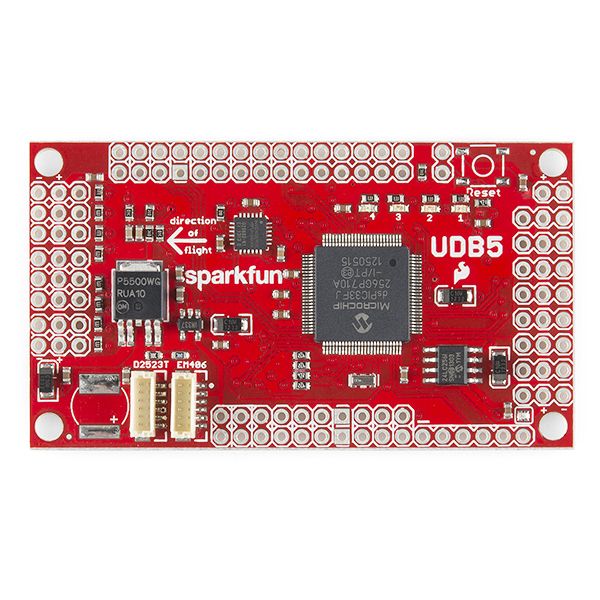

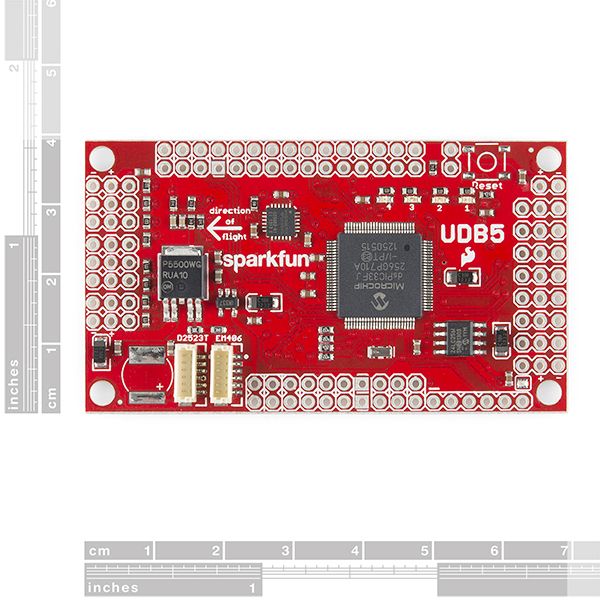

Description: Our UAV Development Board is back! The UDB5 (UAV Development Board version 5) comes populated with a dsPIC33FJ256 CPU, and the impressive MPU-6000, a MEMS 3-axis gyroscope and 3-axis accelerometer. The on-board Invensense gyro even has enough vibration tolerance to be used in RC heli applications.
By itself, the board can be used to develop a three axis IMU controller. By addition of an EM406 or D2523T GPS receiver, it can be used to develop a UAV controller for an RC car, plane, helicopter, or boat. It comes with self-testing firmware that can serve as a starting point for you to develop your own control and navigation firmware. There is even fully functional, open source autopilot firmware available.
We've made a few changes with the UDB5, we've removed the MMA7361 three axis accelerometer, the dual axis IDG500 gyro, and the single axis ISZ500 gyro and moved to an MPU-6000. The PCB form factor hasn't changed. If you like, you can add a reset button and/or a 0.2F super cap.
Note: For programming, we recommend the PICkit3. Check the related products below.
Note: A GPS module is not included. Check the related products below.
Features:
- compatible with 20-channel EM-406A SiRF III GPS
- compatible with 50-channel GS407 Helical GPS
- dsPIC33FJ256GP710A Controller (with onboard 3.3V and 5V glue logic)
- dsPIC runs at 80MHz (40 MIPS) with 8MHz resonator and PLL
- MPU-6000 MEMS 3-axis gyroscope and 3-axis accelerometer
- External 256Kbit EEPROM
- Up to 8 Input, 8 output PWM points
- 6-wire debug header or ICSP header
- 4 separate colored status LEDs
- On board 3.3V and 5V regulators (150mA max)
- Spare USART connection for debugging, flight logging, wireless telemetry, etc.
- I/O pins include a CAN, an I2C, and a SPI port
- 30 spare analog and digital I/O pins for debugging and interfacing to sensors
More information:
- GitHub Hardware Files
- MatrixPilot Firmware Home
- MatrixPilot Firmware Downloads
- DIYDrones UDB Page
- DIYDrones UDB Article (how the UDB handles sustained rotations)
Schematic (148 Kb)
Eagle Files (168 Kb)
