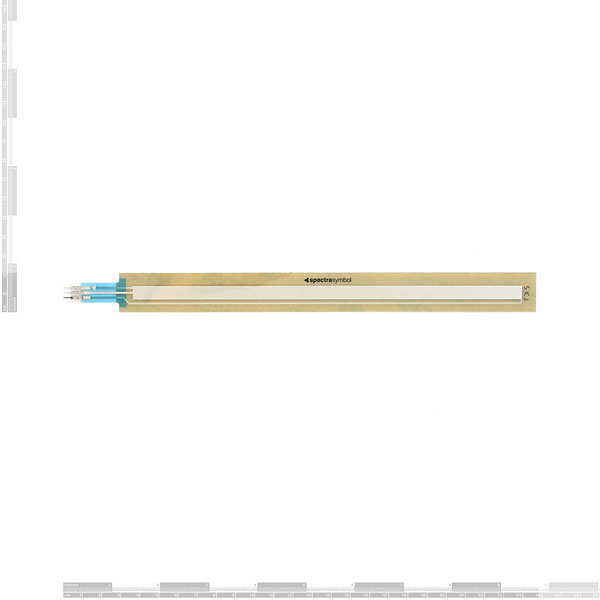

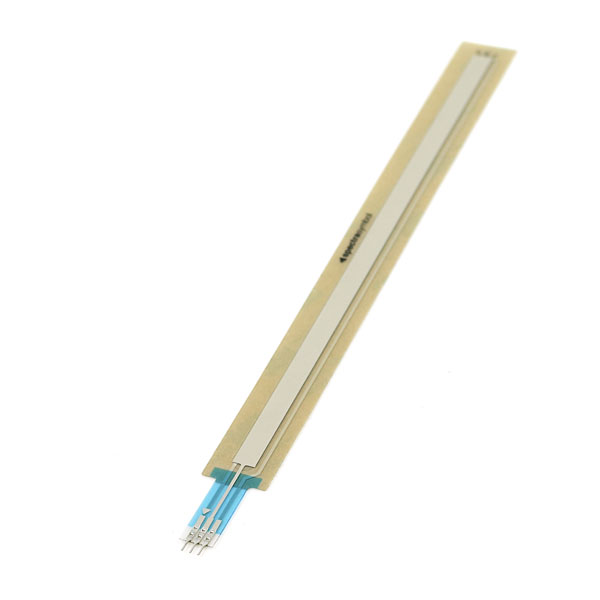

SoftPot Membrane Potentiometer - 200mm
Potenciómetro de membrana de 100 Ohms a 10 KOhms. Se utiliza presionando la superficie y permite calcular posición. Incluye el actuador.
COD: SFSEN08679
Peso: 0.015 Kg
Disponibilidad: Sin Stock
ARS 42974.00
El producto no está disponible para la venta en este momento
Características
Description: These are very thin variable potentiometers. By pressing down on various parts of the strip, the resistance linearly changes from 100Ohms to 10,000Ohms allowing the user to very accurately calculate the relative position on the strip. Can be used as an accurate positional indicator for CNC head positioning, variable user input (volume level input for example), straight user input (multiple button areas translate to given resistance levels), and many other applications.

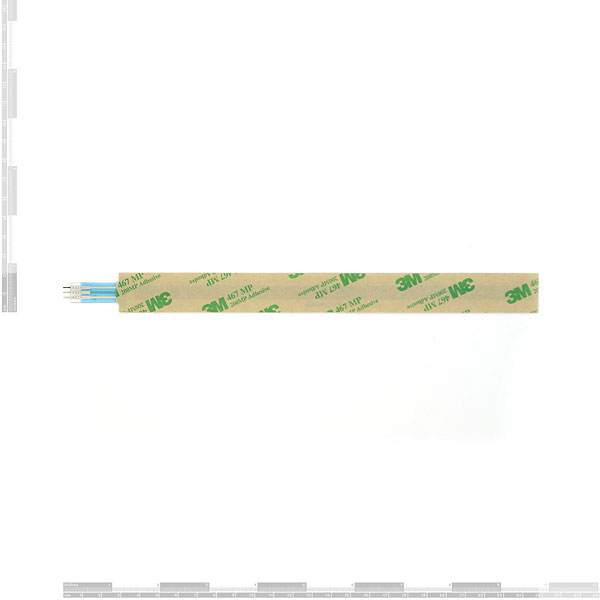

Unit comes with adhesive backing. Connector is 0.1" spaced and bread board friendly. However the connector does not fit nicely into standard female headers because the pins are too small.
Note: These potentiometers work great with a finger, or stylus. For premium repeatability, the wiper listed below is perfect for machine and object positioning.
More information:
Basic Information (125 Kb)
