Pocket AVR Programmer

Pocket AVR Programmer

Programador USB para AVR de bajo costo, ideal para micros tipo ATmega168 o ATmega328

COD: SFPGM09825

Peso: 0.020 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 27509.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description

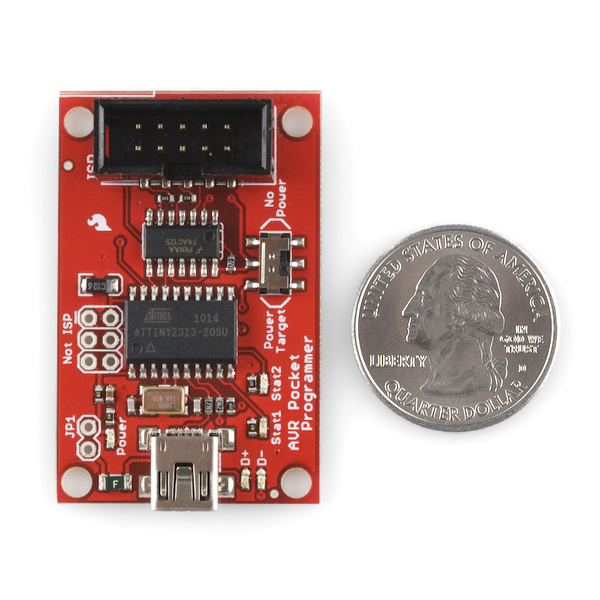

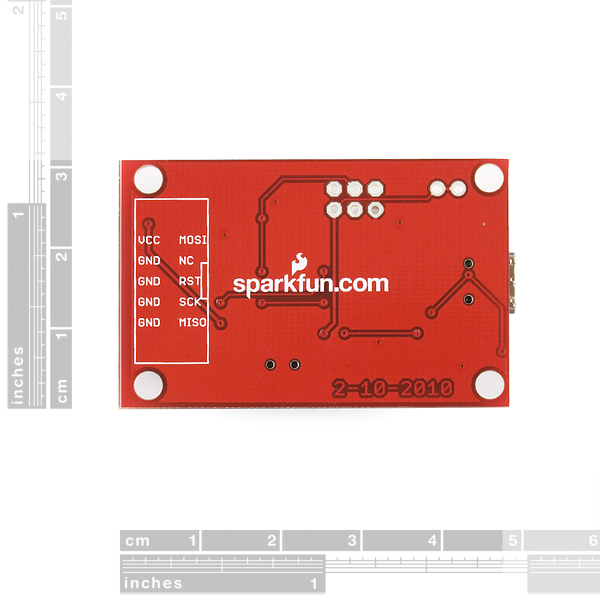

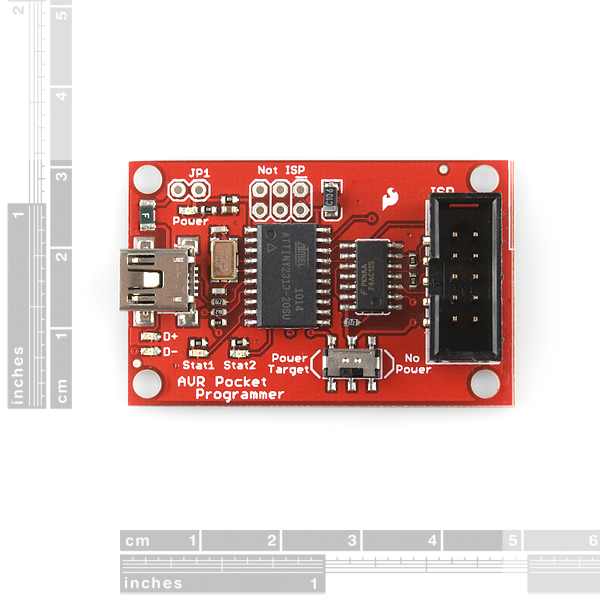

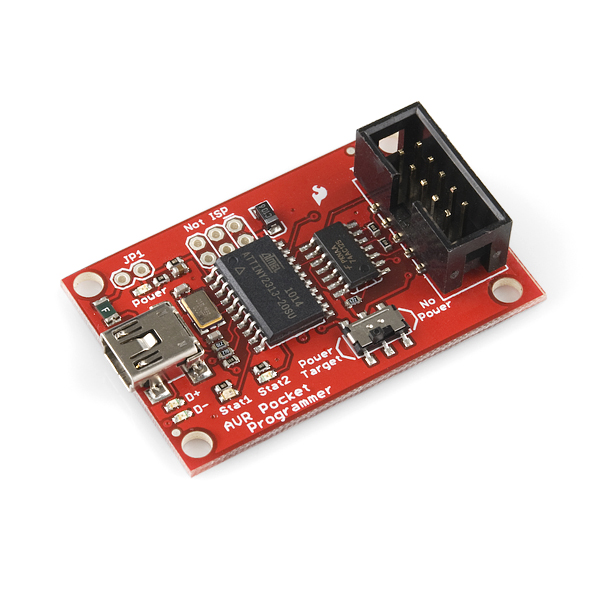

This new version uses an SMD 5x2 header. This is a simple to use USB AVR programmer. It is low cost, easy to use, works great with AVRDude, and is tested extensively on a Windows desktop. Based on Dick Streefland's USBtiny and Limor Fried's USBtinyISP. This is a low-cost programmer designed for those on a tight budget.

This programmer works really well for ATmega168 and ATmega328 and should work with all the AVR micros supported by AVRDUDE.

This board is buffered and power protected so that you can do some really evil things to the programmer without killing it. It is fast! One of the greatest features of this board is the ability to power the target (up to 500mA) from the programmer.

Note: This product is a collaboration with Limor Fried. A portion of each sales goes back to them for product support and continued development.

Note: The drivers link has been updated below to be Windows 7 compatible.

Features:

  • Standard AVR ISP programmer
  • ATtiny2313 with USBtiny firmware preloaded
  • Buffered output
  • PTC fuse protected power
  • Programmer can power target
  • Supports ATmega168/328 and many others
  • Two status LEDs

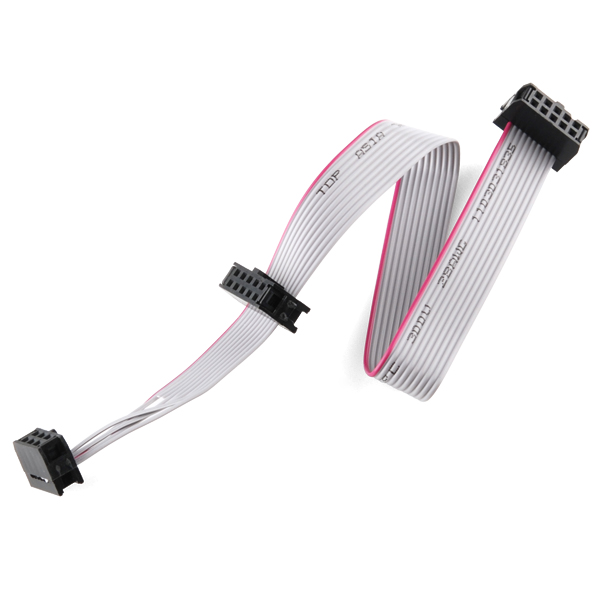

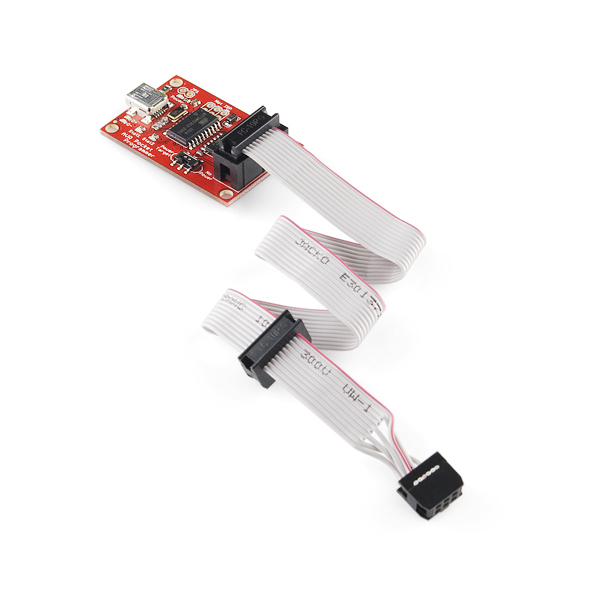

  • Both 10-pin and 6-pin targets supported (cable included)

More information:

Galería de Imágenes

Archivos

Comentarios

Escribir Comentario

Joel (20/06/2014 - 22:35)

Hola, sirve para programar el ATtiny2313 ??

Juan Pablo (24/03/2014 - 09:18)

Lamentablemente no es adecuado para programar PICs. Acá hay algunos consejos: http://electronics.stackexchange.com/questions/101794/pocket-avr-programmer-pic32mx

Matías (20/03/2014 - 22:04)

Hola ¿Sirve este programador para PIC también? ¿Cuando tendrían stock? Saludos.
