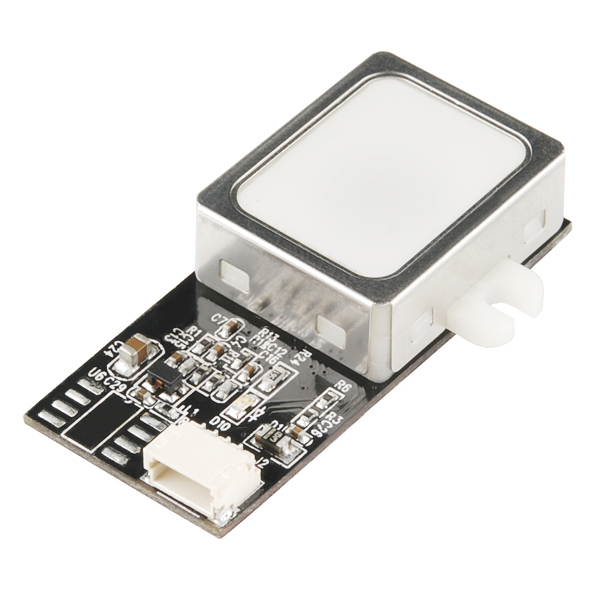

Fingerprint Scanner - 5V TTL (GT-511C3)
Sensor de huellas dactilares con salida serie TTL y software para PC. Se suministra con conector JST cableado.
COD: SFSEN11792
Peso: 0.050 Kg
Disponibilidad: En Stock
ARS 106217.00
El producto no está disponible para la venta en este momento
Características
Description
Fingerprint scanners are awesome. Why use a key when you have one right at the tip of your finger? Unfortunately, they're usually unreliable or difficult to implement. Well not anymore! We've found this great fingerprint module from ADH-Tech that communicates over TTL Serial so you can easily embed it into your next project.

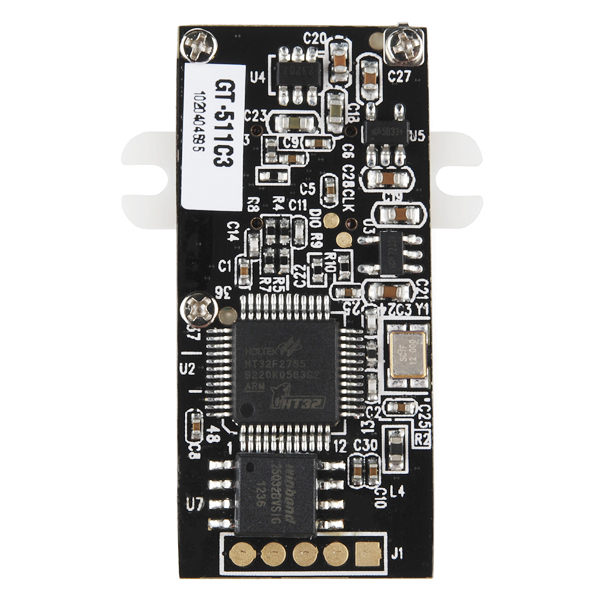

The module itself does all of the heavy lifting behind reading and identifying the fingerprints with an on-board optical sensor and 32-bit CPU. All you need to do is send it simple commands. To get started, just register each fingerprint that you want to store by sending the corresponding command and pressing your finger against the reader three times. The fingerprint scanner can store up to 20 different fingerprints and the database of prints can even be downloaded from the unit and distributed to other modules. As well as the fingerprint "template," the analyzed version of the print, you can also retrieve the image of a fingerprint and even pull raw images from the optical sensor!

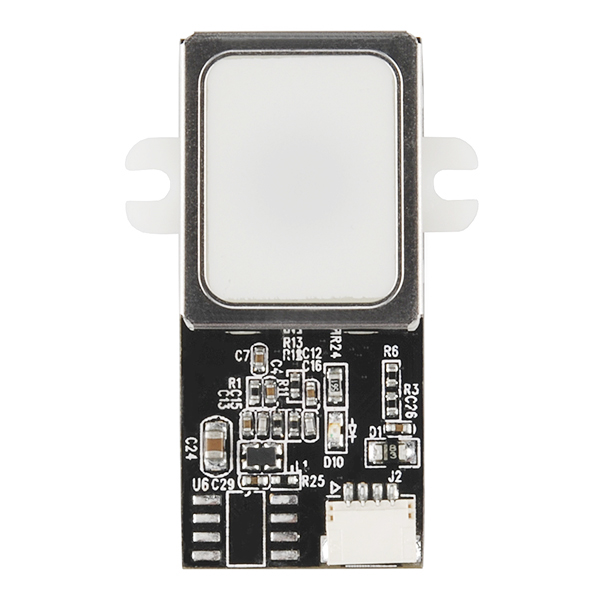

The module is small and easy to mount using two mounting tabs on the side of the sensor. The on-board JST-SH connector has four signals: Vcc, GND, Tx, Rx. A compatible JST-SH pigtail can be found in the related items below. Demo software for PC is available in the documents below, simply connect the module to your computer using an FTDI Breakout and start the software to read fingerprints!

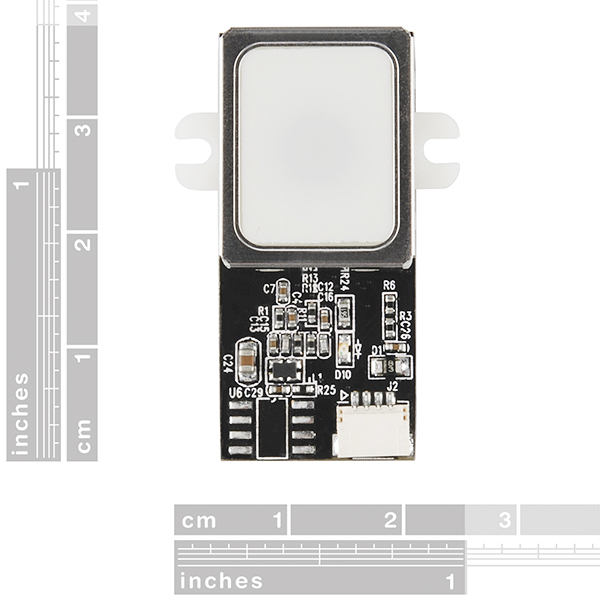

Dimensions: 37 x 17 x 9.5 mm
Features:
- High-Speed, High-Accuracy Fingerprint Identification using the SmackFinger 3.0 Algorithm
- Download Fingerprint Images from the Device
- Read and Write Fingerprint Templates and Databases
- Simple UART protocol (Default 115200 baud)
- Capable of 1:1 Verification and 1:N Identification
Galería de Imágenes
Archivos
Datasheet (515 Kb)
Demo Software (235 Kb)Comentarios
Escribir ComentarioOpenHacks (12/01/2016 - 11:04)
Hola Eugenia, el sensor viene con el cable/conector. Saludos!
Eugenia (06/01/2016 - 15:16)
Hola! Quería saber si además tienen el cable para el sensor. Muchas gracias ! :)
