HackHD - 1080p Camera Module
Cámara HD de 1080P y 30 FPS que permite almacenamiento en memoria microSD (no incluida).
COD: SFSEN11418
Peso: 0.040 Kg
Disponibilidad: Sin Stock
ARS 418961.99
El producto no está disponible para la venta en este momento
Características

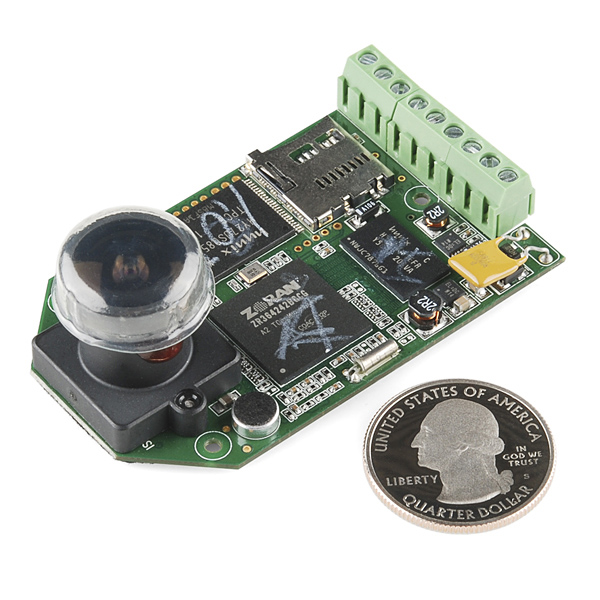

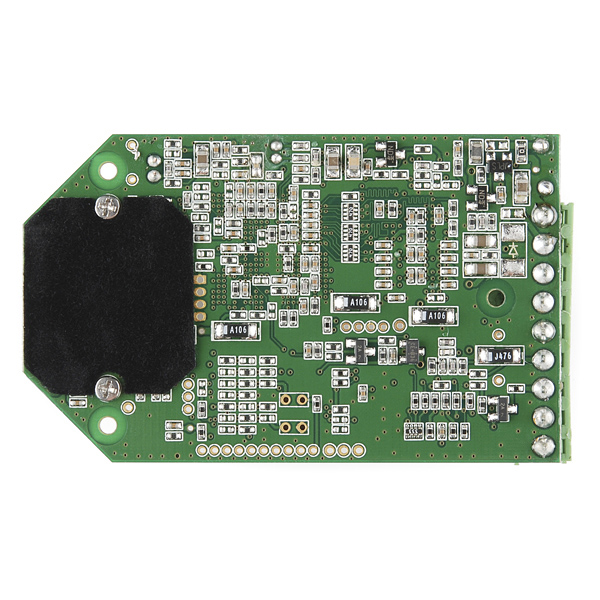

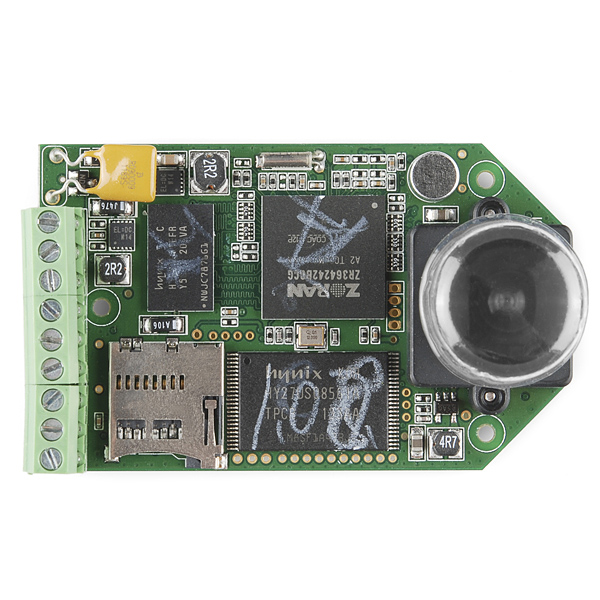

Description: Capturing high-definition video is a challenge for any project, but a great way to see where you're project has been, especially if it's something like an autonomous robot or a high-altitude balloon. The downside is that traditional video cameras can be heavy, difficult to mount, and triggering them to record can require some hacking. So why not use a video camera that was designed for hacking? The HackHD is a bare-bones camera that records 1080P video at 30 frames-per-second. Just attach a 3.7V Li-Po battery or other 3.7V source and a pushbutton and you have a fully functional camcorder. Because recording is triggered with a simple button-press, it can easily be controlled using a microcontroller or simple sensor.
Video is recorded onto a microSD card (not included) and the HackHD supports cards up to 32GB. The HackHD also has a composite video output which can be viewed while it's recording as well as an external audio input which overrides the on-board microphone when used. An LED can be attached to the LED output as an indicator of the camera's status.
Dimensions: 65 x 40 x 25mm
Features:
- Resolution: 1080P HD
- Frame Rate: 30 FPS (frames per second)
- Coding: H.264
- Aspect Ratio: 16:9
- File Format: AVI
- Storage: External microSD Card (2GB - 32GB)
- Lens: 2.5mm (EFL), F2.8, 160 degree (diagonal) wide angle lens
- Control Input: Single contact momentary switch
- Video Output: Composite video
- Status Indicator Output: Single color LED driver
- Power Supply: External 3.7V, 1100mAH minimum
- Power Output: 3.7V DC, 500mAH
- Working Temperature: -10degC to +45degC
- Storage Temperature: -20degC to +70degC
More information:
Archivos
Comentarios
Escribir ComentarioJuan Pablo (09/12/2013 - 22:44)
Hola Augusto, Lamentablemente no tenemos gabinete para este módulo, y nuestro proveedor de la cámara tampoco. En este link muestra como imprimieron una, pero no parece estar a la venta: http://hackhd.com/media.php Saludos!
Augusto Pujato (01/12/2013 - 16:52)
¿hay un gabinete para esta cámara?
