Productos

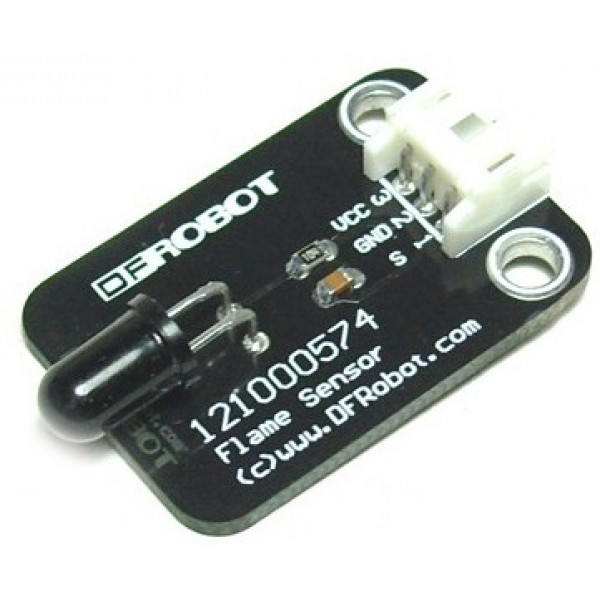

Sensor de llama
Sensor de llama para detectar fuego.
COD: DFR0076
Peso: 0.005 Kg
Disponibilidad: En Stock
ARS 8316.00
El producto no está disponible para la venta en este momento
Características
Introduction
The flame sensor can be used to detect fire or other wavelength at 760 nm ~ 1100 nm light. In the fire-fighting robot game, the flame plays an important role in the probe, which can be used as the robot's eyes to find fire source or football. It can make use of fire-fighting robots, soccer robots.
Flame sensor probe angle of 60 degrees, the special sensitivity of the flame spectrum, two M3 mounting holes to stabilize the module will not spin.
The flame sensor's operating temperature is -25 degrees Celsius to 85 degrees Celsius, in the course of the flame it should be noted that the probe distance from the flame should not be too close inorder to avoid damage.
Specifications
- Interface:Analog
- Supply Voltage: +5 V
- Detection range: 20cm (4.8V) ~ 100cm (1V)
More information: Wiki Doc
Flame sensor Datasheet (495 Kb)
