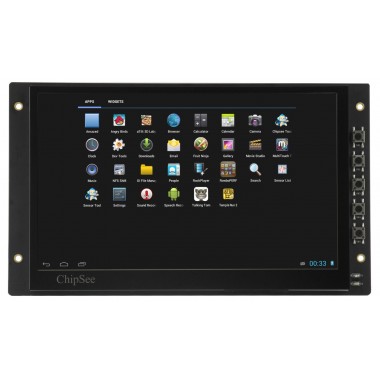

Beaglebone Black Expansion (Capacitive)
Para convertir el BeagleBone Black en una tablet. Posee display capacitivo de 7" y puertos de expansión.
COD: CS00001
Peso: 1.000 Kg
Disponibilidad: Sin Stock
ARS 127124.00
El producto no está disponible para la venta en este momento
Características
Transform your BeagleBone Black to a Tablet PC

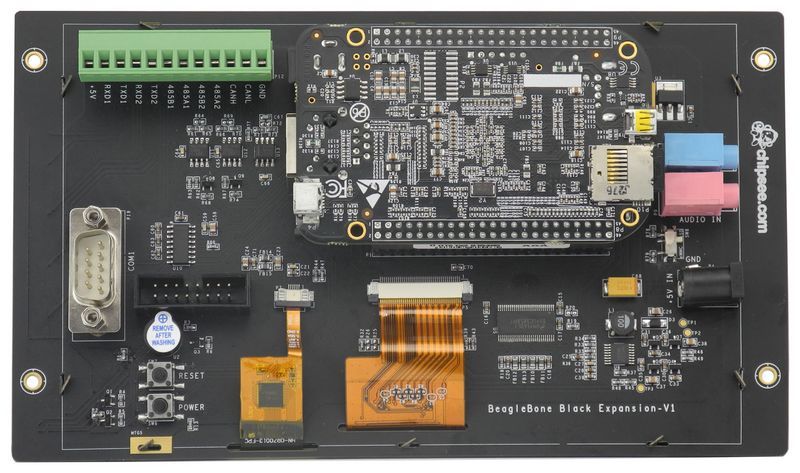

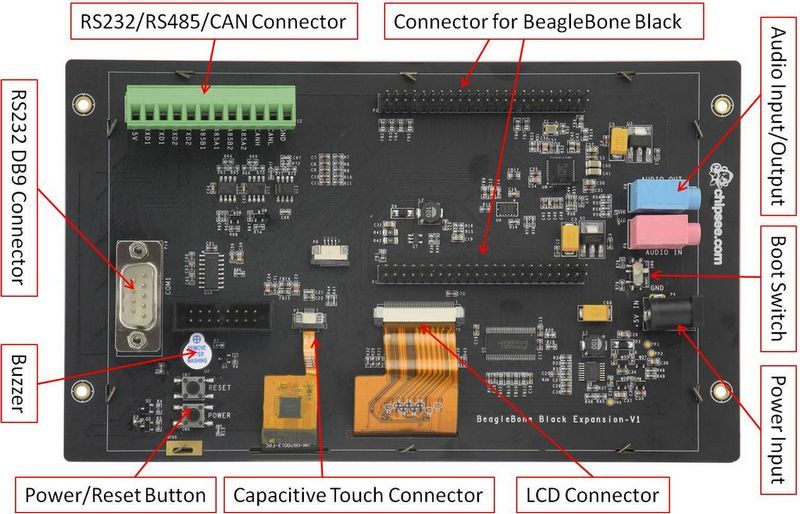

This product designed for working with Beaglebone black,add hardware:
1.Display: 7 Inch LCD,1024*600 Pixel,The display effect even better than iPAD Mini(8 inch 1024*768)
2.Touch: Five Point Capacitive touch,Covered with Amorplate Glass. Touch parameter Optimised for BeagleboneBlack.
3.Audio: 1 Audio out,1 Mic In(Can change to Line in by change resistor)
4.RS232: 2 Channel;
5.RS485: 2 Channel;
6.CAN: 1 Channel;
7.Buzzer 1
8. User Key: 5.
9. User LED:2
10. Three-Axis Digital Accelerometer
SoftWare:

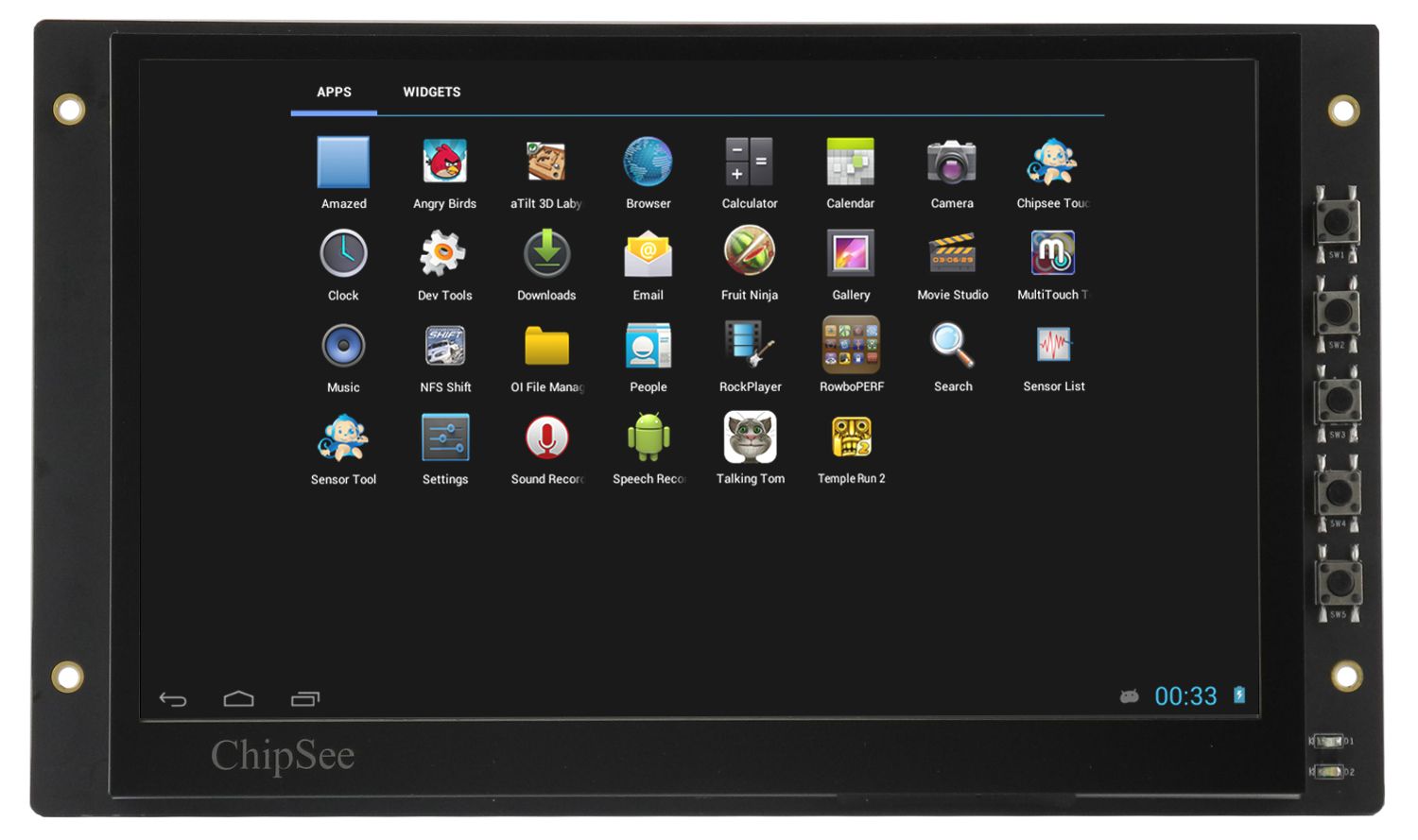

1. Android 4.1,provide Prebuilt file and Kernel source.

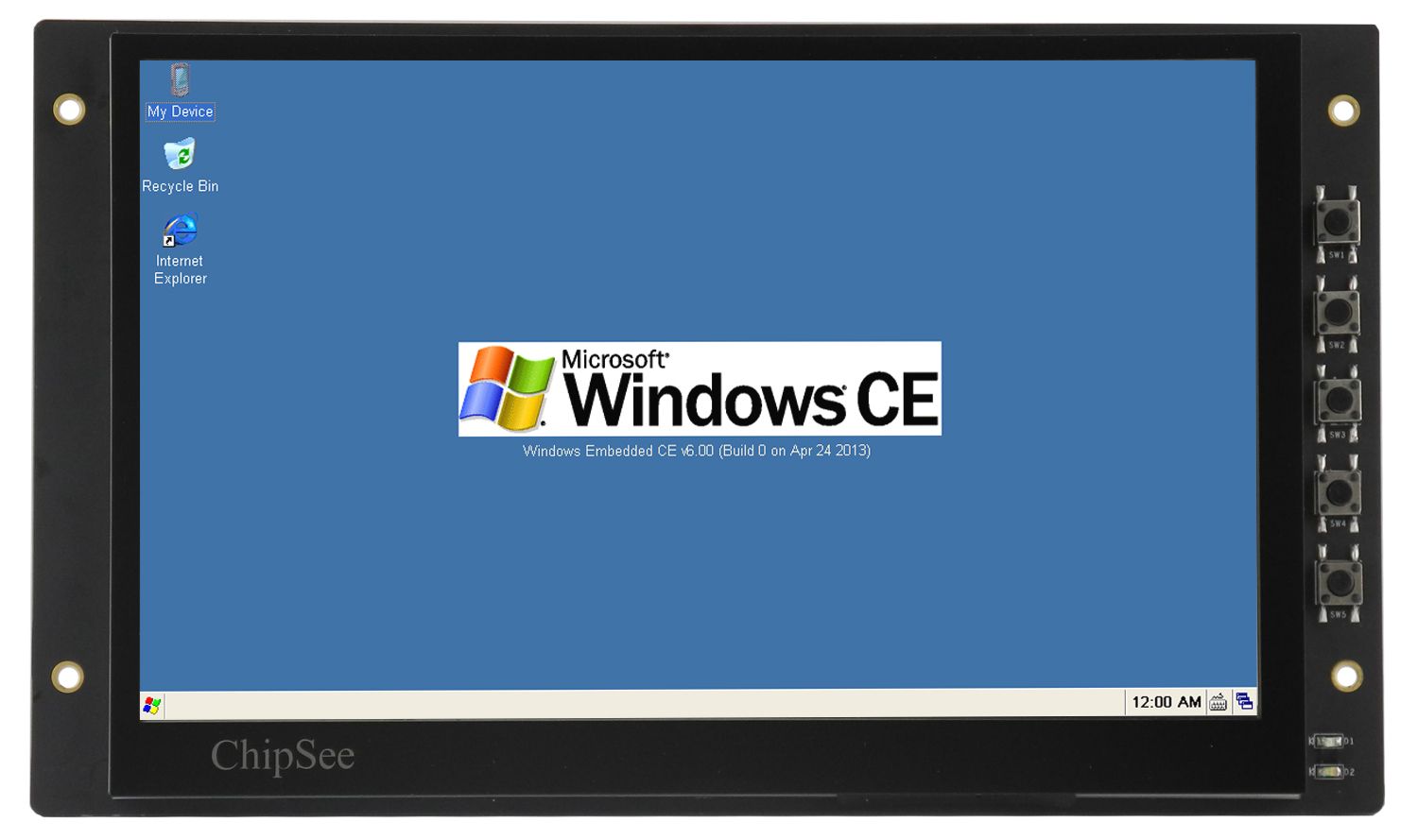

2. Windows CE 6.0,provide BIN.
User Manual (843 Kb)
