MSP430 LaunchPad Value Line Development kit

MSP-EXP430G2

Kit de desarrollo LaunchPad para MSP430G2xx

COD: N77R3863

Peso: 0.140 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 27164.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

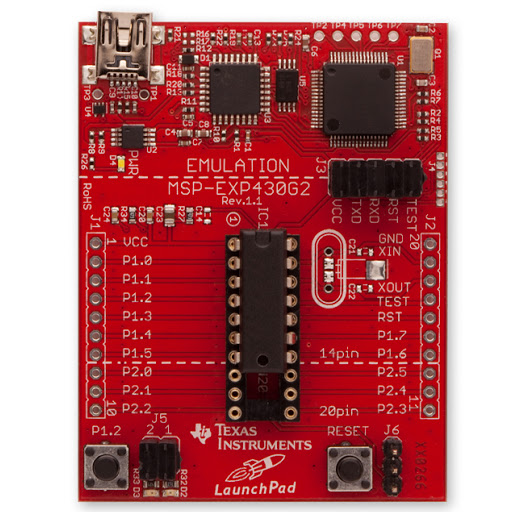

The MSP-EXP430G2 LaunchPad is an easy-to-use flash programmer and debugging tool for the MSP430G2xx Value Line microcontrollers. It features everything you need to start developing on an MSP430 microcontroller device. It has on-board emulation for programming and debugging and features a 14/20-pin DIP socket, on-board buttons and LEDs & BoosterPack-compatible pinouts that support a wide range of plug-in modules for added functionality such as wireless, displays & more.

The MSP-EXP430G2 LaunchPad also comes with 2 MSP430 device, with up to 16kB Flash, 512B RAM, 16MHz CPU speed and integrated peripherals such as 8ch 10-bit ADC, timers, serial communication (UART, I2C & SPI) & more!

Free software development tools are also available, such as TI’s Eclipse-based Code Composer StudioIAR Embedded Workbench. Open Source development is also available thanks to community-driven projects such as the MSPGCC compiler or Energia, a branch of the popular Wiring framework.

Find more info about LaunchPad, the supported BoosterPacks & available resources at our LaunchPad portal page! Also be sure to visit our LaunchPad wiki.

Explore different applications on your LaunchPad with BoosterPack plug-in modules.

Features

  • The LaunchPad development board features:
    o 14-/20-pin DIP (N) socket
    o Built-in flash emulation for debugging and programming
    o 2 programmable LEDs
    o 1 power LED
    o 1 programmable button
    o 1 reset button
  • Supports MSP430G2xx2, MSP430G2xx3, and MSP430F20xx devices in PDIP14 or PDIP20 packages
  • The LaunchPad's integrated emulator interface connects flash-based MSP430 Value Line devices to a PC for real-time, in-system programming and debugging via USB.
  • Includes one mini USB cable to interface with a PC.
  • Included MSP430G2xx device features:
    • MSP430G2553IN20 – 16kB Flash, 512B RAM, interruptible GPIOs (capacitive sense-capable), 16-bit timers, 8ch 10-bit ADC, Comparator, Serial Communication (USCI – I2C, SPI & UART) & more
    • MSP430G2452IN20 – 8kB Flash, 256B RAM, interruptible GPIOs (capacitive sense-capable), 16-bit timers, 8ch 10-bit ADC, Comparator, Serial Communication (USI – I2C & SPI) & more
  • Included MSP430G2xx devices feature preloaded sample programs.
  • Free downloadable versions of IAR Kickstart and Code Composer Studio Version 5 integrated development environments are available and include an assembler, linker, simulator, source-level debugger, and C-compiler. These free IDEs are unrestricted on MSP430 Value Line devices.
  • RoHS compliant

What's Included

  • MSP430G2553IN20 flash device (preloaded with sample program
  • MSP430G2452IN20 flash device (preloaded with sample program
  • 10-pin PCB Connector (2 male/2 female)
  • 32kHz crystal
  • LaunchPad Development board (MSP-EXP430G2)
  • LaunchPad sticker
  • Mini USB cable
  • QuickStart Guide
