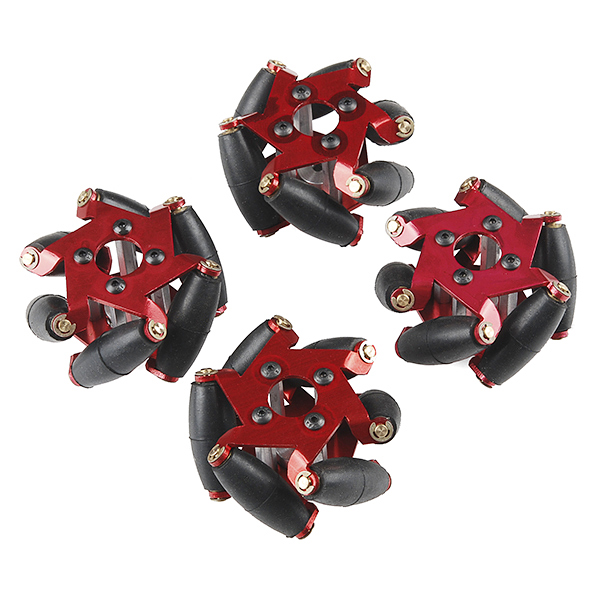

Mecanum wheels - 4 pack
Juego de 4 ruedas que permite a un robot desplazarse en las 4 direcciones.
COD: SFROB11578
Peso: 0.320 Kg
Disponibilidad: En Stock
ARS 172221.00
El producto no está disponible para la venta en este momento
Características

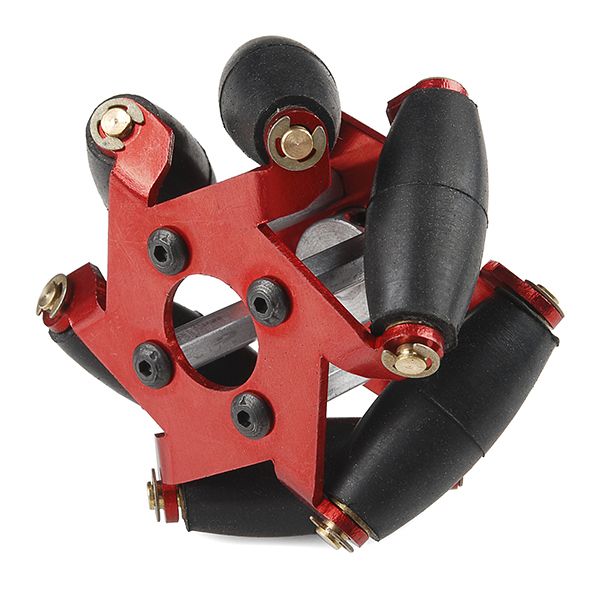

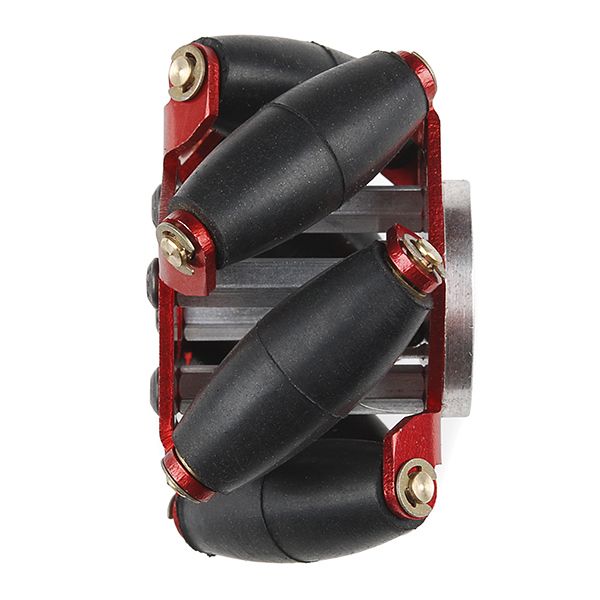

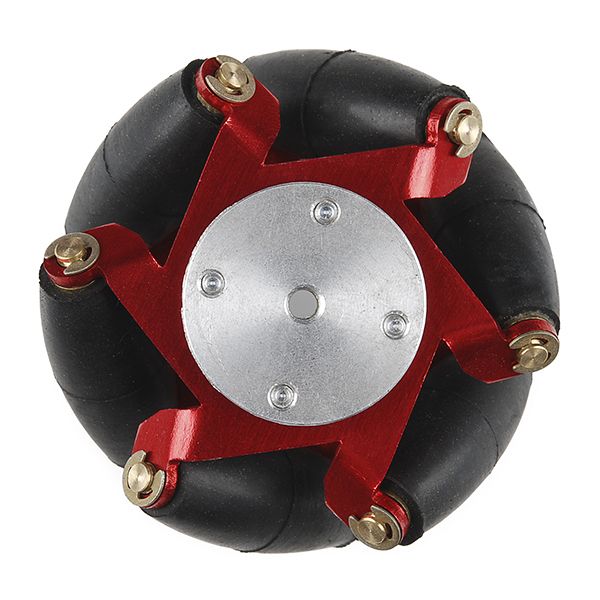

Description: Mecanum wheels allow your robot to not only travel forward and backward, but also side to side. Using rollers set on a 45° rotational axis parallel to the main rotational axis of the wheel, it allows sideways movement as well as forward and backward movement!
These wheels are the updated version of Fingertech's original Mecanum wheels and they've made some awesome improvements. First of all, they moved to an all-metal aluminum design, making them more rugged. Secondly, the rollers are now supported on either side (instead of from the center) which reduces the friction from rollers rubbing against hubs. A small hex wrench is included with each wheel set to tighten the grub screw on the aluminum hub.
Notes: For the best performance, there a few things you should know. The wheels might need a little lubrication to get the rollers moving well enough for lateral movement. Some basic grease works well. Since lateral motion relies on the motors moving against each other, you will get the smoothest lateral movement when the wheels are traveling at the same speed. The use of encoders (or some feedback loop) is recommended. Lastly, making sure your robot platform is balanced helps tremendously as well. Too much weight in the front or back can cause poor results.
Weight: 60g per Wheel
Features:
- All Metal Construction
- Anodized Aluminum Hubplates
- EPDM Rubber Rollers
- Outside Wheel Diameter: 54mm
- Wheel Width at Widest Point: 34mm
- Mount Bore: 3mm (Can be drilled out to 6mm)
Documents:

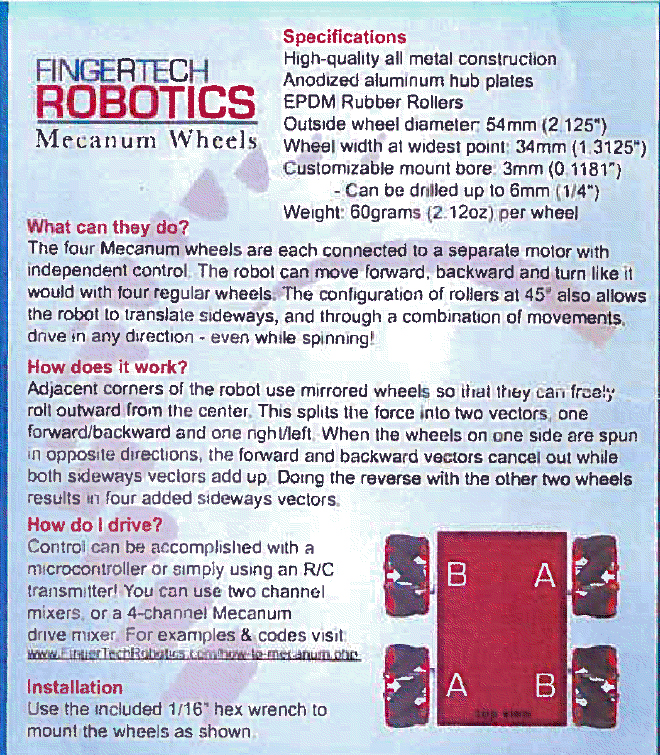

Product Sheet (891 Kb)
