SO8 MSOP8 SOIC8 TSSOP8 SOP8 turn DIP8 IC Adapter PCB

SO8 MSOP8 SOIC8 TSSOP8 SOP8 turn DIP8 IC Adapter PCB

Pequeña placa que permite adaptar diferentes tipos de encapsulados SMD a tipo DIP8.

COD: HTHS1327-U

Peso: 0.010 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 355.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

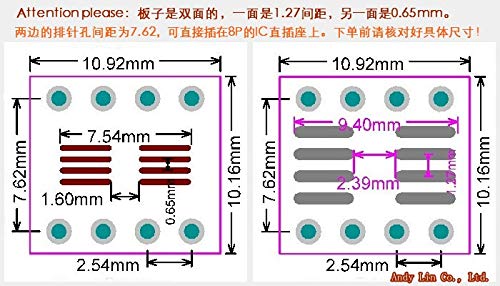

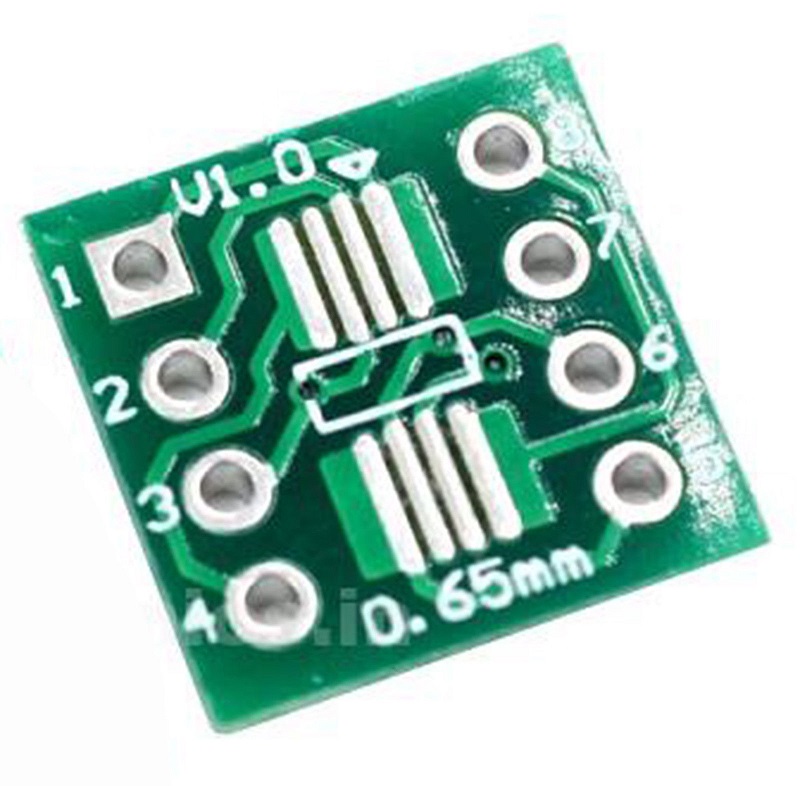

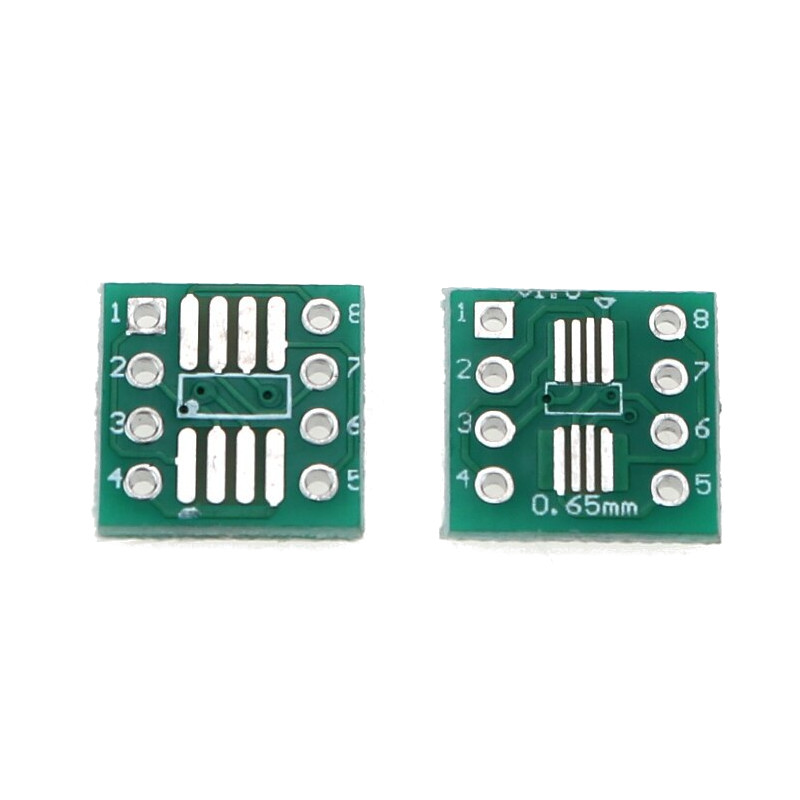

These PCB breakout board has two sides one side for pin pitch size 0.65mm, the other side for pin pitch size 1.27mm which breakout to a standard 2.54mm DIP.

These tiny boards are useful for modding and upgrading SMD components to a DIP footprint.

You can also use these adapters for prototyping by making SMD packages compatible with solderless breadboards.

A side for pin pitch size 1.27mm, it can be used for most of the SO, SOP, SOIC to 2.54mm DIP.

B side for pin pitch size 0.65mm, it can be used for most of the SSOP, TSSOP, MSOP to 2.54mm DIP.



Specifications:

  • 2 x Double sided SOP to DIP.
  • A side pin pitch :1.27mm.
  • B side pin pitch : 0.65mm.
  • Breakout to 2.54mm DIP.
