Sensor de Presión Barométrica BMP085
Breakout de sensor de presión barométrica de alta precisión.
COD: DFBMP085
Peso: 0.005 Kg
Disponibilidad: En Stock
ARS 24546.00
El producto no está disponible para la venta en este momento
Características
Introduction

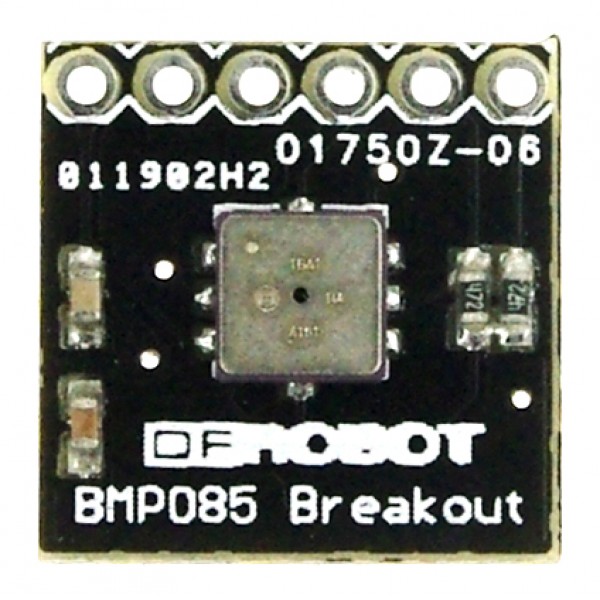

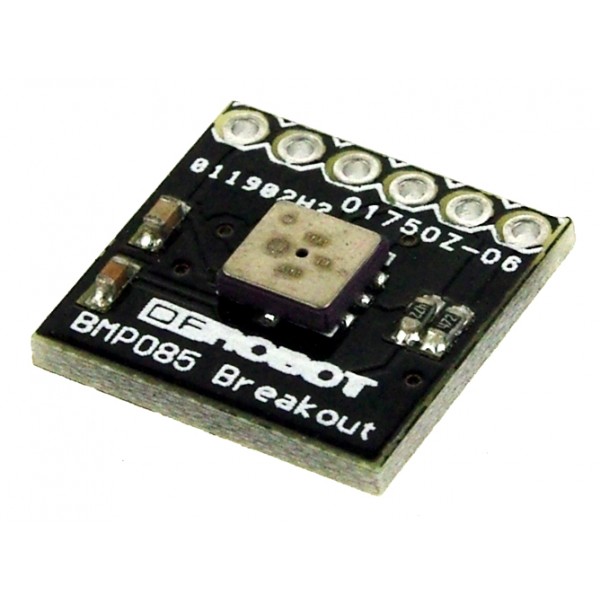

This is a simple breakout board for the BMP085 high-precision, low-power barometric pressure sensor from DFRobot. The BMP085 offers a measuring range of 300 to 1100 hPa with an absolute accuracy of down to 0.03 hPa. It's based on piezo-resistive technology for EMC robustness, high accuracy and linearity as well as long term stability. This sensor supports a voltage supply between 1.8 and 3.6VDC. It is designed to be connected directly to a micro-controller via the I2C bus

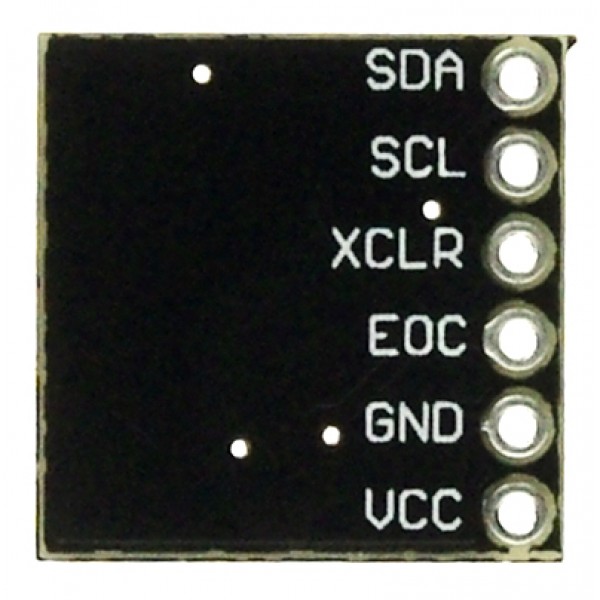

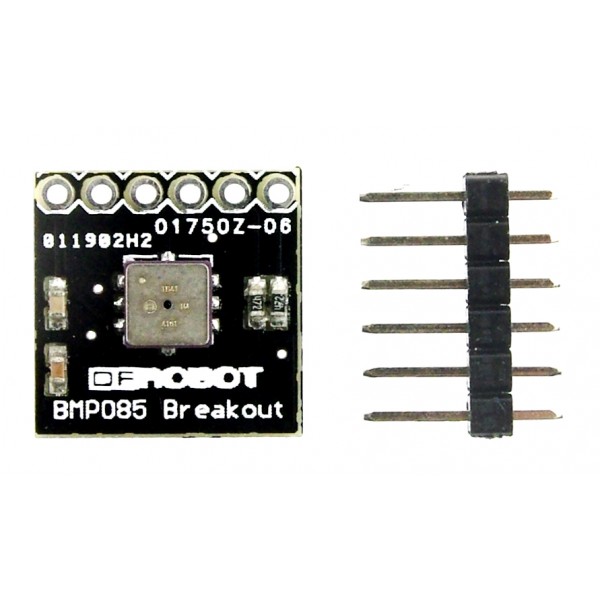

This breadboard-friendly board breaks out all pins of the BMP085 to a 6-pin 0.1" pitch header. The analog and digital supplies (VDDD and VDDA) of the BMP085 are tied together and broken out to a single pin. We've also put two 4.7k pull-up resistors on the I2C lines.
Specifications
- Digital two wire (I2C) interface
- Wide barometric pressure range
- Flexible supply voltage range
- Ultra-low power consumption
- Low noise measurement
- Fully calibrated
- Temperature measurement included
- Ultra-flat, small footprint
- Dimensions:16 x 16 mm
Example Arduino Sketch (2 Kb)
Example Code (ATmega328) (22 Kb)
BMP085 Datasheet (638 Kb)
