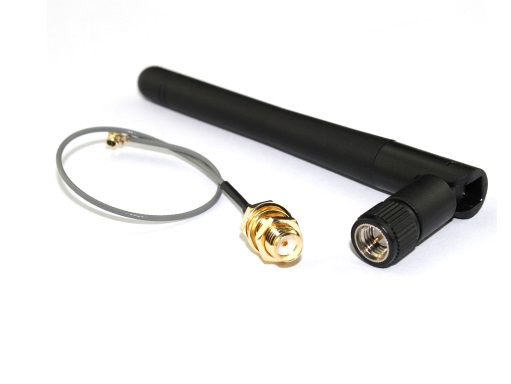

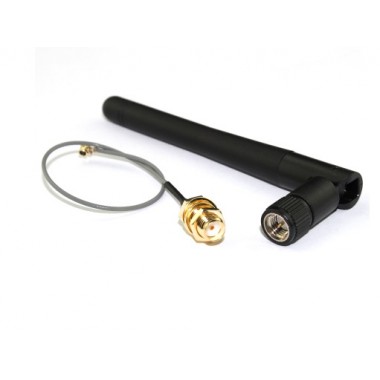

2.4GHz SMA Antenna plus 20cm IPX Adapter Cable

2.4G WIFI SMA Antenna plus 20cm IPX Adapter Cable

Antena con conector SMA macho de 2.4GHz con cable adaptador IPX de 20cm. Longitud de la antena: 10cm.

COD: HTHS2243

Peso: 0.020 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 3552.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

  • Name: 2.4G omni directional antenna
  • Frequency band: 2400-2500
  • Detail indicators: electrical performance Specifications Electrical
  • Band Range 2400-2500 (MHz) Frequency
  • Gain Gain (dBi) > 2.5
  • Standing wave ratio V.S.W.R. < 1.5
  • Polarization Vertical Polarization
  • Non circular degree Non-Circularity (dB) + 0.5
  • Input impedance Impedance (50)
  • Lightning protection Protection Direct Ground Lightning
  • Maximum power Input Power Maximum (W) 50
  • Mechanical properties Specifications Mechanical
  •  Antena Type SMA male Connector.
  • Adapter cable IPX-SMA female.
  • Radiation material Element Material Copper Radiating
  • Antenna cover material Material EVA Radome
  • Antenna cover color Color Gray Radome
  • Antenna size Dimension (mm) 110 (Unbend) 92 (Bend)
  • Tail line length Cable Length 100/120/200 (mm) Tailing
  • Package size Size Packing (mm) 295 * 110 * 60
  • Weight Wight (Kg) 0.009/12
  • Using environment Condition Indoor Application
  • Working temperature Temperature -40~+70 (c) Operating
  • Storage temperature Temperature -55~+80 (c) Reposition
