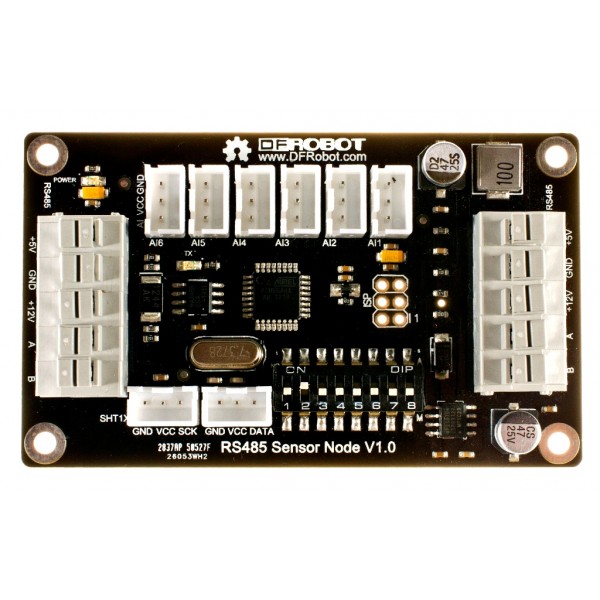

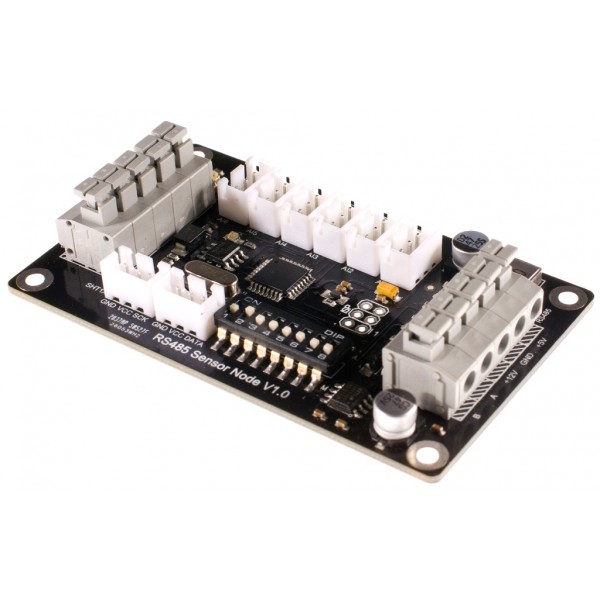

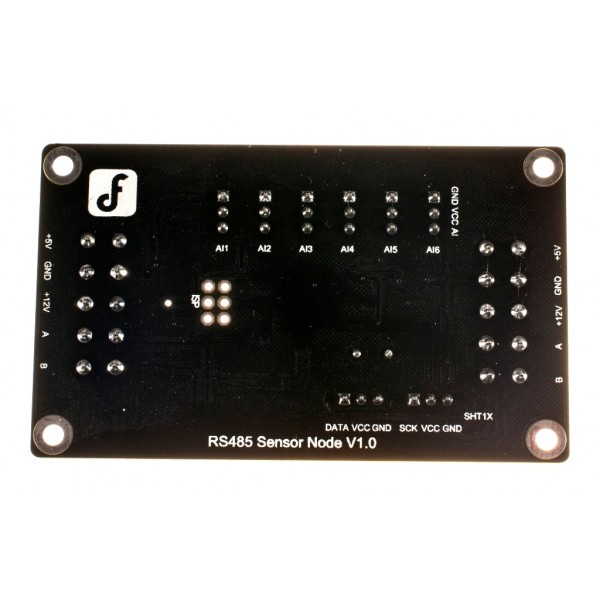

RS485 Sensor Node V1.0
Nodo de entradas analógicas con comunicación RS485
COD: DFR0233
Peso: 0.030 Kg
Disponibilidad: En Stock
ARS 76058.00
El producto no está disponible para la venta en este momento
Características
Introduction
This RS-485 Sensor Node module can be used in various applications such as intelligent agriculture, environment monitoring,home automation...etc. It is a Internet of things device. This RS-485 Sensor node provides 6 channel analog input and 1 SHT1x Humidity & Temperature digital input. The RS485 protocol supports up to 254 nodes at 1200m distance between each node. This allows a wide range cover for monitoring the environment. A screw free design allows easy connection of cables without scarfice reliable & stable.
RS-485 standard is used effectively over long distances and in electrically noisy environments. Multiple receivers may be connected to such a network in a linear, multi-drop configuration. These characteristics make such networks useful in industrial environments and similar applications.RS-485 enables the configuration of inexpensive local networks and multidrop communications links. It offers data transmission speeds of 35 Mbit/s up to 10 m and 100 kbit/s at 1200 m.
RS-485 bus is the most popular communication method in industry. Compared with RS-232 bus, it is able to transfer information in further distance with lower cost. Establishing an “Internet of Things” by integrating RS-485 with Ethernet, which is the widely available in the world, in the hope that this method will coordinate all devices with low cost and high efficiency.
Applications
- Intelligent agriculture
- Public safety
- Environment monitoring
- Individual health
- Home automation
Specification
- MCU:Atmega8
- Input Voltage:12V
- Baud rate:9600
- Available Slave address: 0x01 - 0x7F
- RS-485 long distance,reliable & stable conmunication
- Multiple connection（up to 127 modules）
- Press to connect cables, quick and easy
- 1 SHT1x Humidity and Temperature Sensor interface
- 6 channel analog sensor interface
- 8 small switches for setting slave address directly
- Humidity:0-100%RH(±4.5%RH)
- Temperature:-40-128.8℃(±0.5℃)
- Size:82x50mm
Shipping List
- RS485 Sensor Node V1.0 (1 unit)
Layout (313 Kb)
Arduino Sample code (2 Kb)
