5MP USB camera board with SONY IMX335

NLK5MP02 5MP USB camera board with SONY IMX335

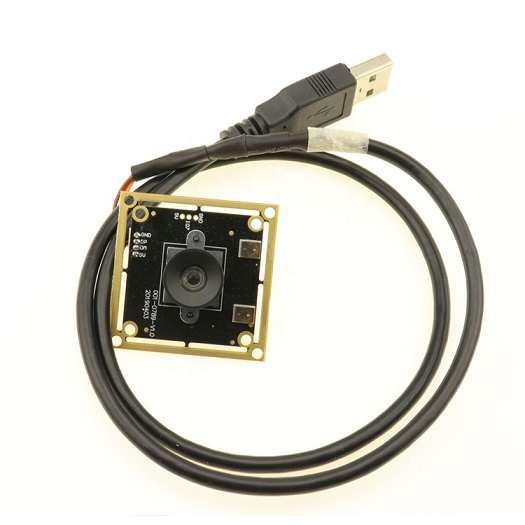

Cámara de 5MP con sensor Sony IMX335. Posee interfaz USB con cable de 3 metros.

COD: NLK5MP02

Peso: 0.040 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 152625.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Features:

  • Adopt Sony IMX335 1/2.8inch color sensor , 5MP pixel;
  • Adopt high-quality lens without distortion;
  • True color and Low Lux;
  • Color, support IR-LED and IR-Cut;
  • Low power: DC5V/20MA±10%;
  • Real WDR and backlight compensation, Support NTSC and PAL

Electric Parameters

Item Name Units Descriptions
1 Image Sensor   1/2.8inch Color  CMOS  sensor
2 Effective pixel PIXELS 2592(H)×1944(V)
3 Video format   PAL/NTSC(optional)
4 Horizontal resolution   5MP
5 Output image format   MJPEG / YUV2(YUYV)
6 S/N ratio dB >39dB (AGC off)
7 Min. Lux LUX 0.001Lux
8 Electric shutter speed S Electronic rolling shutter / Frame exposure
9 Sensitivity   2.0V/lux-sec@550nm
10 Pixel and Fps   640X480@ 30fps /800X600@30fps /1024X768@30fps/1280X960@20fps/1600X1200@ 20fps /2048X1536@ 20fps/2592X1944@15fps
11 Interface Type:   USB2.0 High Speed/USB2.0 OTG
12 Driver free   USB Video Class(UVC)
13 Support image process   Support AGC/ AEB/ AEC,Brightness,Contrast, Tint, Color, Sharpness,Gamma, Backlight compensation, Exposure
14 Digital Audio   High quality MIC
15 Size MM 38mm x 38mm about 40g
16 Storage temperature -20~85℃
17 Working Temperature -10 ~ +70℃
18 HDR range   Up  to 72db
19 Power supply   USB BUS POWER 4P-2.0mm connector
20 Working voltage   DC5V
21 USB cable   0.6M/1M/3M optional
22 Support system   Win7, Win8, Win10, Android, Linux, Mac
23 Working current   140mA~200mA
