Netduino Plus 2
Board para plataforma .NET Micro Framework con STmicro 32 bits Cortex M4. Posee Ethernet integrado.
COD: NET0005
Peso: 0.060 Kg
Disponibilidad: En Stock
ARS 141085.00
El producto no está disponible para la venta en este momento
Características

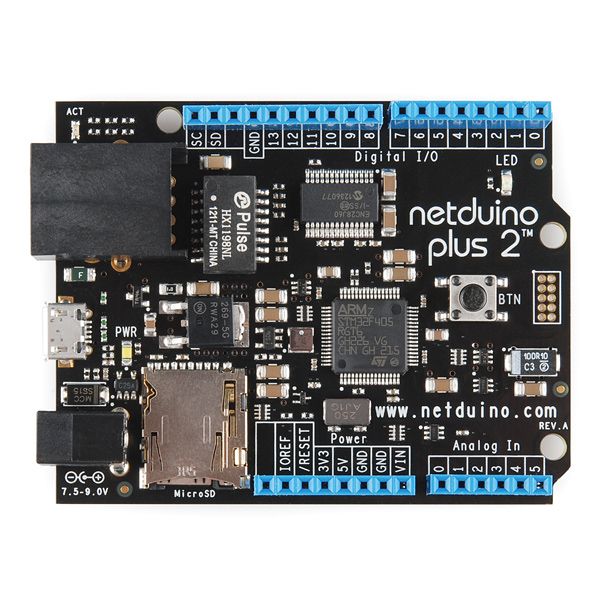

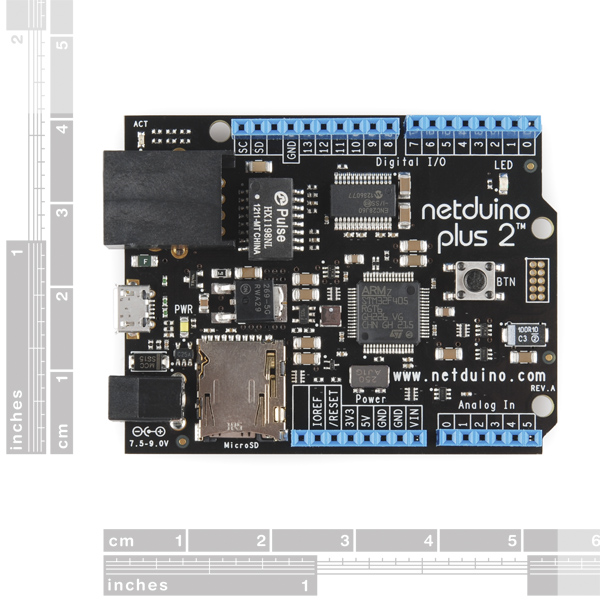

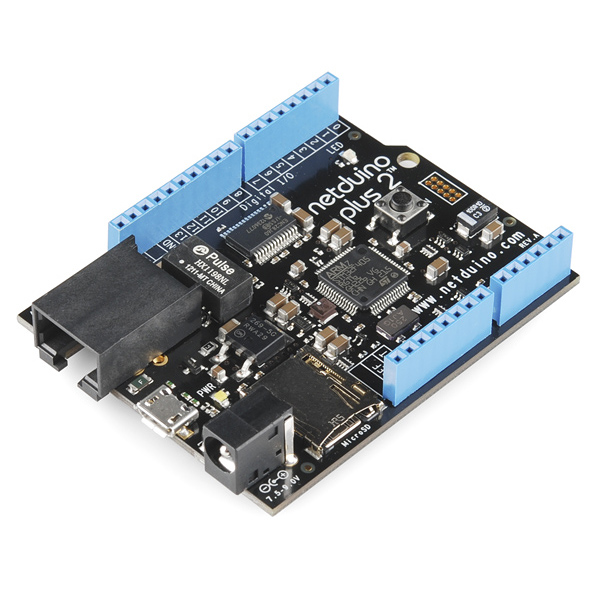

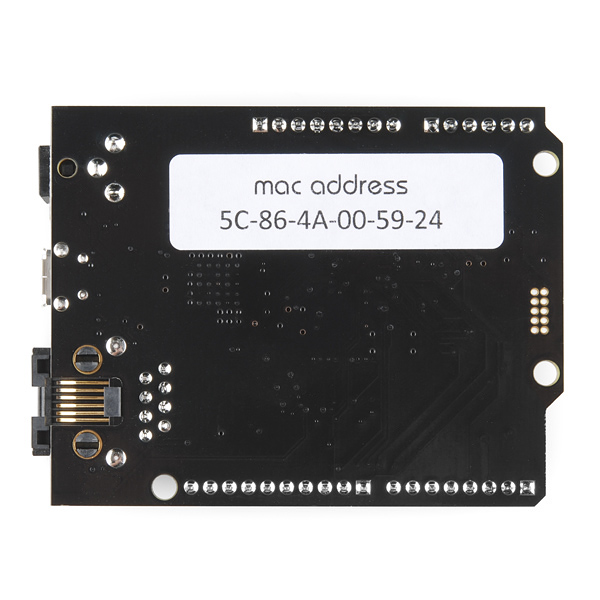

Description: The Netduino Plus is an open source electronics platform using the .NET Micro Framework. The board features a 32-bit microcontroller and a rich development environment, making it a perfect solution for engineers and hobbyists alike.
The Netduino Plus 2 has four times the speed (168MHz), six times the code space (384KB), and twice the available RAM (100KB+) of Netduino Plus 1. They've also given it a whole series of rich new features like four serial ports, six PWM channels and 12-bit ADC. The 6-pin ICSP header has been swapped out for a 10-pin MiniJTAG header. The goal is to enable developers to compile their own firmware using GCC and debug both native and managed code at the same time.
Features:
- STMicro 32-bit microcontroller
- Speed: 168MHz, Cortex-M4
- Code Storage: 384 KB
- RAM: 100+ KB
- 10 mbps Ethernet
- Micro SD card support up to 2 GB
- Input Voltage: 7.5 - 9.0 VDC or USB powered
- 25 mA per Pin max Current
- Digital I/O are 3.3 V but 5 V tolerant
More information:
Datasheet (STM32F405RG) (2282 Kb)
Layout (279 Kb)
