15.6” Industrial display 10-point capacitive touchscreen

15.6” Industrial display 10-point capacitive touchscreen

Display de tipo industrial con pantalla multitáctil de 15.6 pulgadas y 10 puntos de control. Posee puertos 1x DVI, 1x HDMI, 1x VGA y resolución de 1024*768.

COD: CS-PIM-156-C

Peso: 0.500 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 863321.03

Cantidad:

El producto no está disponible para la venta en este momento

Características

PIM-156-C (PN CS-D156) is a 15.6” industrial display that features a 10-point capacitive touchscreen. The 3mm tempered glass cover with black silk-screen ensures that the screen is water and steam resistant.

The typical power consumption is 14W, while in standby mode CS-D156 uses around 2W, making it ideal for all kinds of applications.

This 15.6’’ industrial display features a 10-point capacitive touchscreen. The 1024*768 resolution provides excellent image quality.

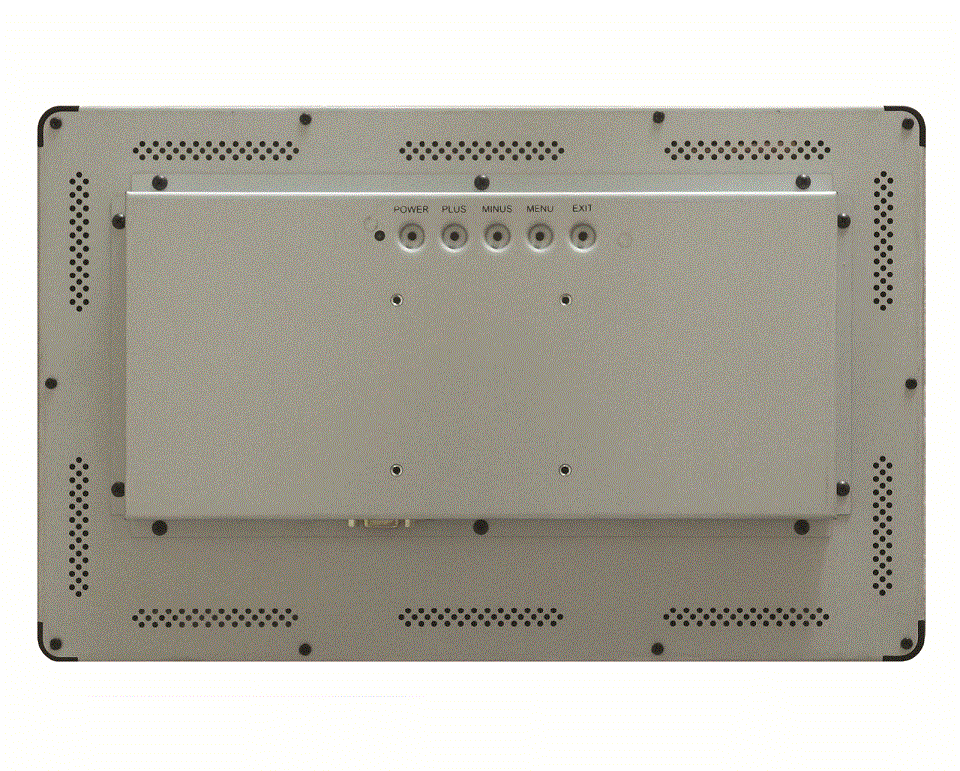

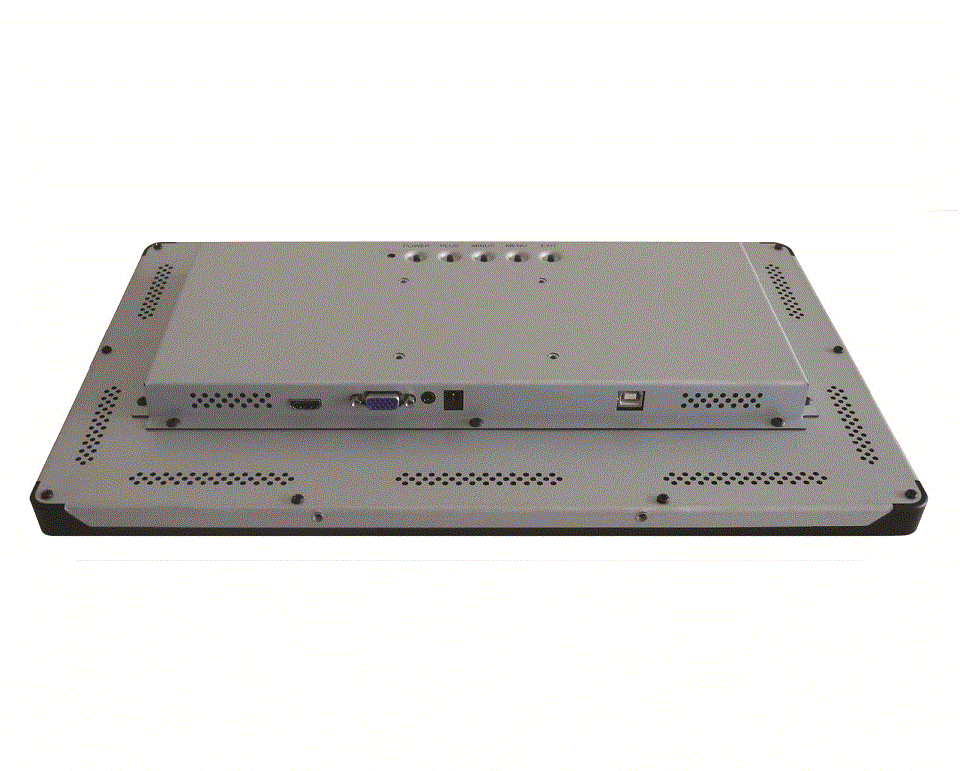

The PIM-156-C features multiple video inputs on the back side – one DVI connector, one HDMI connector, and VGA connector. It also features one USB 2.0 (type B) connector used for handling the touch screen.

Click here to see a detailed list of features.



Hardware features:

Weight 5000 g
Display Size (inch.)

15.6"

LCD Backlight

LED

Brightness (cd/m²)

220

Contrast Ratio

800:1

Viewing Angle

Horizontal:170°/ Vertical: 170°

Response Time

35ms(GTG)

Color Depth

16.2M

Resolution

1024*768

Refresh Frequency

60Hz

Wired connectivity

1x DVI, 1x HDMI, 1x VGA

OSD Control

Button

OSD Language

Chinese, English

Glass

3mm Tempered Glass with Black Silk-screen

Touch Screen

10-Point Capacitive

Touch Technology

Projecting Capacitance (G+G)

Type of Pen

Fingers, Hands with Gloves, Conductive Stylus

Waterproof

Touch surfaces will not be affected by water droplets or steam

Calibration

No Calibration Tool

Touch Screen connection

USB2.0(Type-B)

Multi Touch Protocol Support

Windows

Hanging Method

VESA,MIS-D,100,C

Power Input

DC 12V3A (50/60 Hz)

Power Supply

≤ 14W (typ.)

Standby Power

≤ 2W (typ.)

Work Environment

0℃~ 40℃,90% RH

Storage Environment

-20℃~60℃,90% RH

Accessories

Bracket /Power Line /VGA Line/USB Line/Power Adapter
