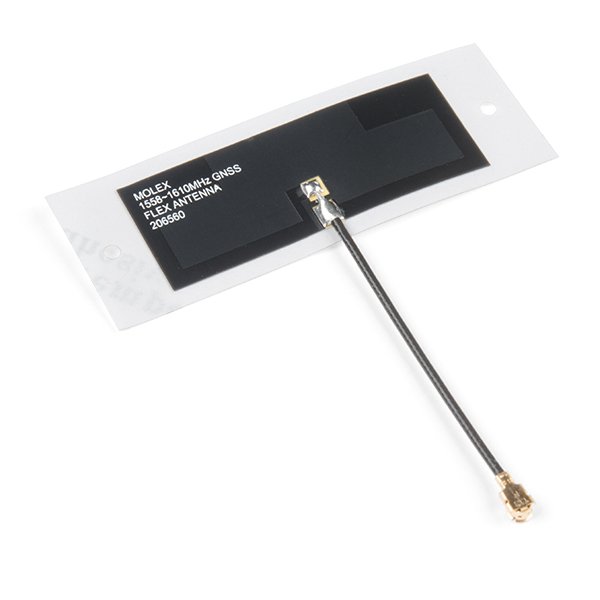

Molex Flexible GNSS Antenna - U.FL (Adhesive)
Antena adhesiva para aplicaciones GNSS con cable de 5 cm y conector U.FL. Soporta GPS, Galileo, BeiDou, y GLONASS.
COD: SFGPS15246
Peso: 0.001 Kg
Disponibilidad: En Stock
ARS 9117.00
El producto no está disponible para la venta en este momento
Características
The Molex GNSS Flex antenna is a great option for basic GNSS applications and will work with any of our GNSS boards equipped with a U.FL at a fraction of the cost of many of its big brothers. This antenna supports GPS, Galileo, BeiDou, and GLONASS in three different frequency bands (1561 +/-3MHz, 1575 +/-3MHz, 1602 +/-3MHz).

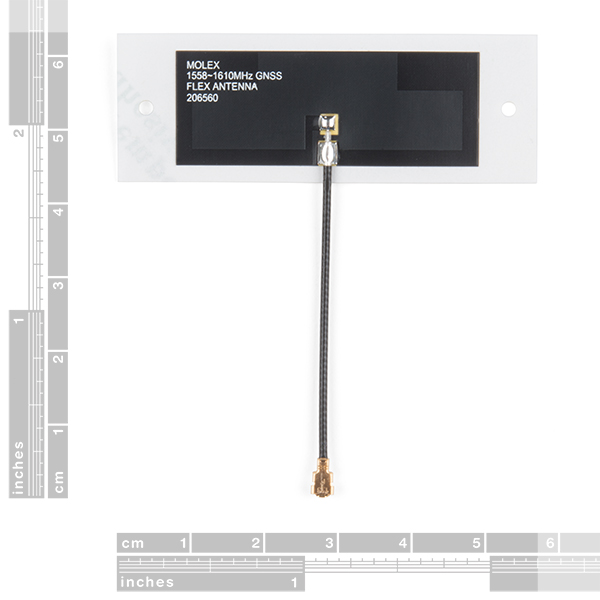

The Molex Flexible GNSS Antenna has an incredibly small footprint at 40.40mm x 15.40mm, while the adhesive pad is a bit bigger at 56.40mm x 20mm. Even better, the antenna is only 0.1mm thick (or about the thickness of a piece of paper). Simply remove the backing and stick this to any surface, or leave the backing on (just be careful of the fragile U.FL connector).
Features:
- Cable length: 50mm

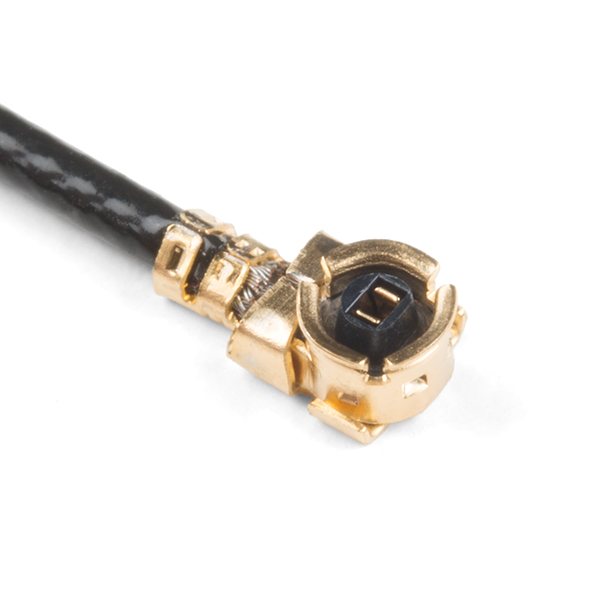

- Connector: U.FL
- Radiation Pattern: Omnidirectional
- Polarization: Linear
- Weigth: 0.466 g
- Mounting Style: Adhesive
- Protocol: BeiDou, Galileo, GLONASS, GPS
- Return Loss: < -8dB
- Peak Gain (Max): 1.1 dBi+
- Efficiency: >74%
- Input Impedance 50 Ohms
Documents:
- Datasheet
- Application Specification
- Product Specification
- Mechanical Drawing
- Molex GNSS Antenna Catalog
- Tips for using U.FL
