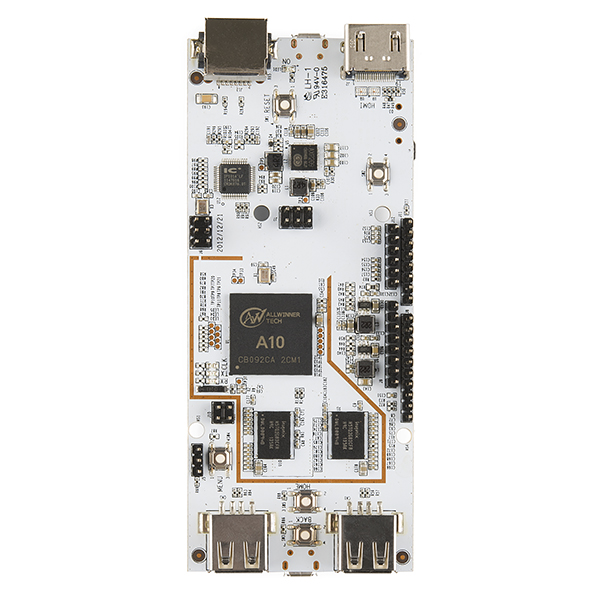

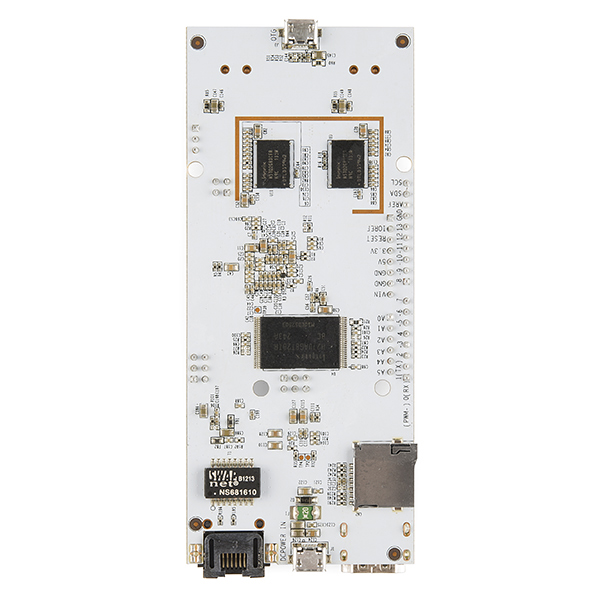

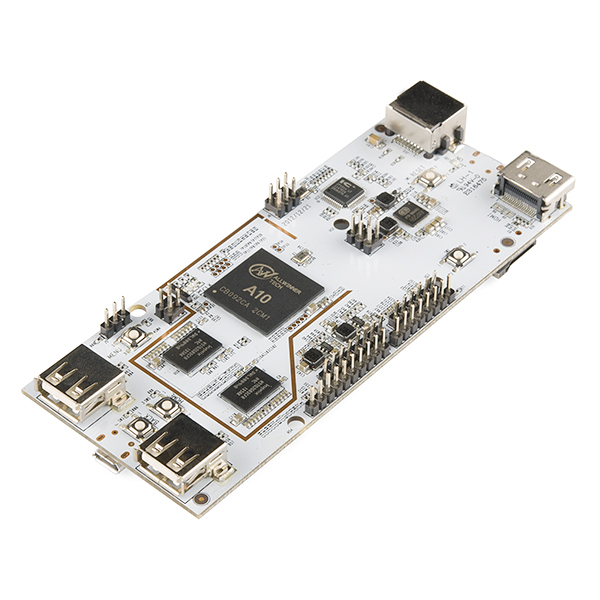

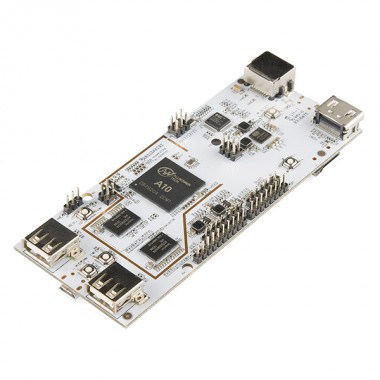

pcDuino - Dev Board
Computadora ARM Cortex A8 capaz de correr Linux y Android, compatible con shields Arduino. Soporta OpenGL y posee salida HDMI
COD: SFDEV11712
Peso: 0.043 Kg
Disponibilidad: Sin Stock
ARS 38093.00
El producto no está disponible para la venta en este momento
Características
Description: As the field of embedded electronics gets more advanced, hobbyists and professionals are both in need of smaller and more powerful computers. We've been looking for awhile and now we've found one that we really like, not only because it's small and fast but because it's also Arduino shield compatible! The pcDuino is a high performance, cost effective mini PC platform that runs full-featured operating systems such as Ubuntu and Android ICS.
It's easy to hook up, just connect 5V power and a keyboard and mouse. The pcDuino outputs video to any HDMI enabled TV or monitor via the built in HDMI interface. It was specifically designed to make it easy for the open source community to develop computationally demanding projects using the vast, existing catalog of Arduino Shields.
An API has been developed for the pcDuino that allows the user to access all of the functions that you would expect using simple Arduino-style language.
Note: The pcDuino has trouble connecting to certain DVI monitors. There is a fix available on the pcDuino wiki page. Check the documents below!

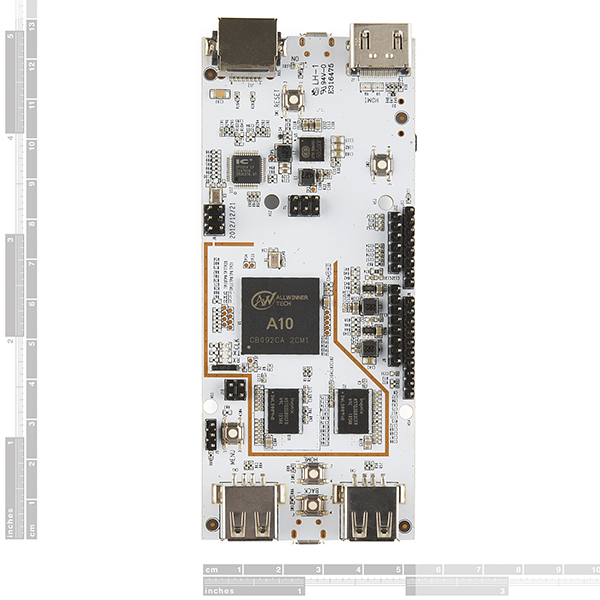

Dimensions: 125mm X 52mm
Features:
- 1GHz ARM Cortex A8 CPU
- GPU: OpenGL ES2.0, OpenVG 1.1 Mali 400 core
- 1GB DRAM
- Onboard Storage: 2GB Flash, microSD card (TF) slot for up to 32GB
- Arduino-Style Peripheral Headers (Adapter Needed for Shield Form-Factor)
- HDMI Video Output
- Linux3.0 + Ubuntu12.10 Supported
- 0.1" Spaced GPIO Headers
- RJ45 Ethernet Connection
- Power Requirements: 2A @ 5VDC
- API to access the following interfaces:
- UART
- ADC
- PWM
- GPIO
- I2C
- Program in C, C++ with GNU tool chain
- Program in Java with standard Android SDK
More information:
PcDuino User Guide (1728 Kb)
PcDuino Mechanic (103 Kb)
