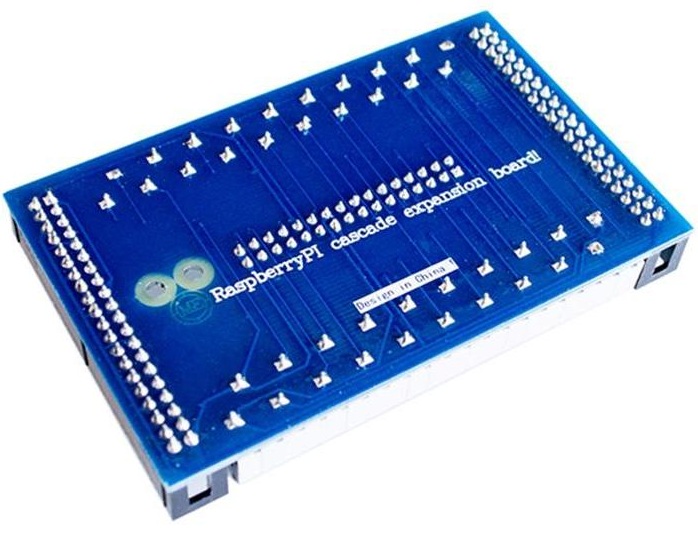

Raspberrypi GPIO Extended Multi Function Expansion Board
Placa de expansión GPIO para la Raspberry Pi. Permite la conexión en cascada de varias de éstas placas.
COD: HTHS0658
Peso: 0.050 Kg
Disponibilidad: En Stock
ARS 16962.00
El producto no está disponible para la venta en este momento
Características
Description:
This module is used to extend the 40 GPIO pins of the Raspberry to another set of 2×20 pins and 8 pins in parallel accessible in the terminal blocks in which test leads are pushed. The electronic chart offers great reliability with the Raspberry and is very easy to connect thanks to its existing accessories.

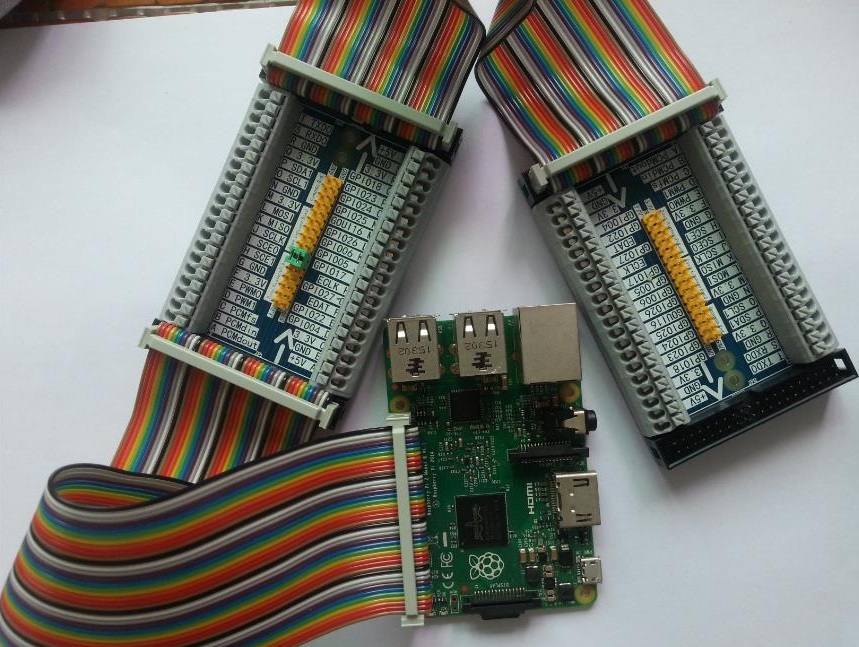

Raspberry Pi 3 GPIO Board Multifunctional Cascade Expansion Extension Board is used for extending the GPIO pins. This board gives high reliability with raspberry pi.
This module is used to extend the 40 GPIO pins of the Raspberry to another set of 2×20 pins and 8 pins in parallel accessible in the terminal blocks in which test leads are pushed. The electronic chart offers great reliability with the Raspberry and is very easy to connect thanks to its existing accessories but not included.

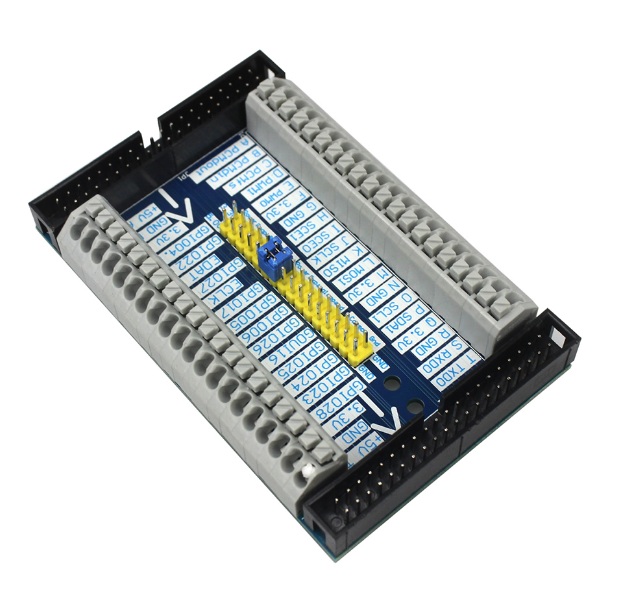

The module offers a set of mini bridges to configure the GPIO. The press to release the two terminal blocks of 20 connections is very easy to use.
Characteristics:
– Communication connections: 1 TXD0 (broadcast) and 1 RXD0 (reception).
– Power connections: 5 of 3.3V, 2 of 5V and 5 of GND.
– Pulse width modulation (PWM) connections: 2.
– GPIO connections: 11.
– PCM audio connections: 3.
– Connections with clock (CLK): 2.
– Peripheral serial bus interface (SPI) connections: 1.
– Input master / slave output connections (MISO): 1.
– Connections system validation chip (SCE): 2.
– I2C port connections: 8 (SDA, SCL, GOUI, EDAT, MOSI).
Package Includes:
1 x Raspberry Pi 3 GPIO Board Multifunctional Cascade Expansion Extension Board Module.
